EcoSmart Cross-Flow Plate Heat Recovery System for Industrial Spray Booths

EcoSmart Cross-Flow Plate Heat Recovery System for Industrial Spray Booths

Maximize Baking Efficiency. Minimize Energy Costs. Zero Cross-Contamination.

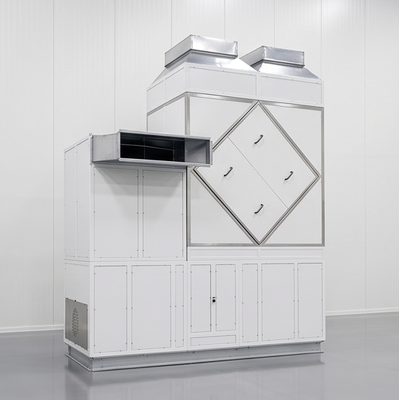

Industrial coating operations consume massive amounts of thermal energy, particularly during the high-temperature curing and baking phases. The EcoSmart™ Cross-Flow Plate Heat Recovery System is the ultimate engineered solution for industrial spray booth energy saving. By capturing wasted thermal energy from your hot exhaust air and transferring it to the incoming fresh makeup air, this system drastically reduces the workload on your primary burners.

Whether you are planning a new automated production line or looking for seamless spray booth AHU retrofitting, the EcoSmart™ system delivers immediate operational cost reductions without ever compromising your pristine paint finish quality.

Core Engineering Advantages

1.0% Air Cross-Contamination: The precision-sealed cross-flow plate matrix ensures that stale, VOC-laden exhaust air is physically separated from the incoming fresh air stream. Your clean room remains uncontaminated, ensuring a flawless coating finish.

2.Up to 65% Thermal Recovery: Radically cuts down natural gas, diesel, or electricity consumption during continuous spray and high-temperature bake cycles.

Rapid ROI (Return on Investment): Due to the high energy demands of industrial painting, most heavy machinery and automotive coating facilities achieve a full return on investment within 8 to 14 months.

3.Zero Moving Parts in Core: Unlike rotary thermal wheels, the stationary plate heat exchanger efficiency remains constant over time. No belts, no motors, and no mechanical wear means ultra-low maintenance.

Technical Specifications

Ideal Application Scenarios

The EcoSmart unit is designed for heavy-duty industrial ventilation setups where air purity and energy consumption are critical:

1.Automotive manufacturing and collision repair paint booths.

2.Heavy equipment and aerospace coating lines.

3.Automated multi-stage PU and powder coating production lines.

4.Furniture and woodworking finishing facilities.

Stop Wasting Your Exhaust Heat

Get a Free Energy Saving & ROI Estimation for Your Factory

Do not let your profits vent out of the exhaust stack. Tell us about your current setup, and our engineering team will calculate your exact payback period.

See It In Action:

Seeing is believing. Check out our detailed step-by-step video guide to see how efficiently a CoatTech spray booth is assembled on-site through Youtube Video

https://youtu.be/lzobBHWHaWE

Frequently Asked Questions (FAQ)

Q1: What are the primary advantages of combining a downdraft system with infrared curing lamps?
A: This combination offers the ultimate environment for a flawless finish. The full downdraft airflow continuously pulls airborne dust and overspray straight down into the floor filters, away from your paint job. Meanwhile, the shortwave infrared lamps cure the paint from the inner layers outward. This prevents "skinning" (where the surface dries first, trapping solvents underneath), minimizes the risk of pop-boiling, and cuts your overall baking time in half compared to traditional hot-air convection booths.

Q2: Can the wall-mounted infrared heating zones be controlled independently?
A: Yes. The integrated infrared heating system is segmented into multiple independent zones controllable via the main panel. For smaller panels, spot repairs, or bumper touch-ups, operators can activate only the specific heating zones required. This targeted curing significantly reduces power consumption and lowers operating costs.

Q3: Is this spray booth fully compatible with waterborne paint systems?
A: Absolutely. Waterborne paints require precise, uniform airflow and controlled thermal energy to break the water barrier efficiently. The combination of clean, high-velocity laminar downdraft air and direct, shortwave infrared radiant heat ensures exceptionally rapid water evaporation and cross-linking, making it highly effective for both solvent-based and waterborne paint lines.

Q4: What is the recommended maintenance schedule for the filter elements?

A: To maintain optimal cabin pressure and a pristine, dust-free environment, we recommend the following replacement intervals under normal operating conditions:

1.Pre-Filters (Intake Air): Every 100 working hours.

2.Ceiling Fine Filters: Every 400 to 500 working hours.

3.Floor Paint-Stop Filters (Glass Fiber): Every 80 to 100 working hours, or when visible overspray accumulation slows down the exhaust airflow.

Here is the Youtube Link video for your reference

https://youtube.com/shorts/B3tQHiFbkC8?feature=share
