High-Efficiency Industrial Electrostatic Powder Coating Line with Big Cyclone Recovery

Product Overview

Designed and manufactured by CoatTech Intelligent Equipment, this complete Industrial Powder Coating Line is engineered to eliminate your production bottlenecks, reduce energy consumption, and deliver flawless coating finishes. Tailored for automotive parts, heavy machinery, and building materials, our system integrates high-precision electrostatic application with advanced powder recovery technology to ensure maximum ROI and environmental compliance.

Core System Modules & Advantages

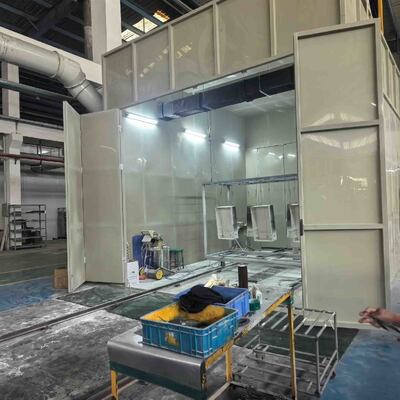

1.Modular Powder Coating Booth: Constructed with high-density, anti-static composite panels and a robust exterior steel frame. The spacious design with heavy-duty folding doors accommodates oversized batch workpieces easily, while the anti-static inner walls prevent powder accumulation.

2.High-Temperature Curing Oven: Built for excellent thermal insulation and temperature uniformity. The top-mounted hot air circulation and exhaust duct system guarantees even heat distribution, ensuring rapid and complete powder cross-linking for a durable, perfect finish.

3.Big Cyclone + Cartridge Recovery System: The heart of our eco-friendly design. Featuring a towering Big Cyclone separator paired with a secondary cartridge filter, this system achieves a ≥ 98% powder recovery rate. Its easy-to-clean internal structure allows for extremely fast color changes, minimizing downtime.

4.Intelligent Spray & Conveyor Integration: Equipped with a mobile electrostatic powder coating trolley (including fluidized bed hopper and smart control interface). The booth integrates seamlessly with floor rail transfer vehicles and overhead suspension jigs, offering flexible material handling for heavy payloads.

Technical Specifications

Why Choose CoatTech Solutions?

At CoatTech, we do more than build equipment—we engineer industrial reality. From precision CNC laser cutting of sheet metal to robotic welding and stringent pre-assembly testing, our manufacturing process ensures absolute accuracy and airtightness. Whether you need a standard spray booth or a fully automated heavy-duty coating line, our custom engineering guarantees safety, peak performance, and years of continuous heavy-duty use.

Ready to Upgrade Your Production Line? Contact our engineering team today to get a customized technical proposal and layout design for your facility.

Frequently Asked Questions:

What is a spindle conveyor system used for in industrial coating?

A spindle conveyor system is utilized in automated painting lines to transport and rotate small to medium-sized parts. By rotating the parts on vertical pins (spindles), the system allows fixed or robotic spray guns to apply a completely even, 360-degree coating without manual repositioning.

Why is a multipass curing oven beneficial for cosmetic packaging?

Cosmetic packaging requires high-volume production. A multipass curing oven loops the conveyor track back and forth inside the heated chamber. This design keeps the workpiece inside the ideal temperature zone for the required curing time while drastically reducing the physical length of the oven, saving significant factory space.

Can CoatTech customize the curing oven for different paint types?

Yes. CoatTech Intelligent Equipment custom-engineers every line. Depending on whether you are using water-based, solvent-based, or UV-curable coatings, we design the heating elements, airflow, and extraction systems to ensure optimal curing and regulatory compliance.
