Professional Transformer Painting Solutions Success Case 2 in Saudi Arabia

 Engineering Efficiency Meets Industrial Compliance

At CoatTech Intelligent Equipment, we take pride in delivering highly customized industrial coating solutions that address the most complex site limitations. We are pleased to announce the successful design and layout of our second large-scale Transformer Painting Booth Enclosure, specifically engineered for a premier client in Saudi Arabia.

Project Overview: Custom-Engineered Enclosure

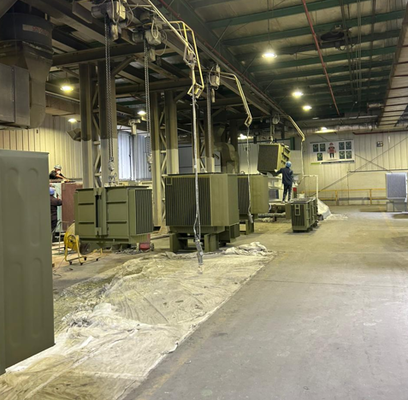

Facing the challenge of integrating a high-performance painting system within an existing facility, our team collaborated closely with the client to develop a 31m x 13m x 7m fully enclosed painting environment.

Key Technical Achievements

1.Optimal Resource Utilization: Leveraging existing facility infrastructure, we designed the enclosure to utilize the site's original building walls on three sides, significantly reducing construction costs without compromising structural integrity.

2.Strategic Ventilation & VOC Management: The booth features a dual-tier system: a primary high-capacity exhaust and filtration system located in the Zone P (Flood Painting) area, complemented by auxiliary exhaust systems across the enclosed zones to ensure 100% compliant VOC extraction.

3.Precision Structural Integration: Our team utilized a custom two-section wall panel design with on-site cutouts to navigate complex overhead obstructions and existing firefighting pipelines at the 6m level.

4.Optimized Material Handling: Designed to accommodate heavy-duty overhead crane transport, the booth features double-ended entry/exit access points to facilitate a seamless, high-throughput transformer painting workflow.

Techinical Table

More Detail,please click here
https://youtube.com/shorts/4v576t_ap8Y

Why Choose CoatTech for Transformer Coating?

This project represents our second successful major installation for the transformer industry, solidifying our expertise in:

1.Flood Painting Mastery: We understand the fluid dynamics and filtration requirements necessary for large-scale transformer oil tank finishing.

2.Turnkey System Design: From site-specific CAD layouts to integrated filtration and VOC abatement, we provide complete, white-label solutions for industrial traders and end-users.

3.Adaptive Engineering: Our designs are "site-aware"—we don't just supply equipment; we solve architectural constraints like low-clearance firefighting lines and existing column placement

Partner with Us

Are you looking for a specialized painting enclosure for your production line? Whether you are dealing with complex structural site limitations or need to upgrade your current VOC compliance, CoatTech Intelligent Equipment has the proven track record to deliver.Contact our project team today to discuss your next transformer coating facility.
