Automotive Spray Booth Integrated Paint Mixing Room

Elevate Your Finish. Maximize Your Efficiency.

Experience the next generation of professional automotive refinishing. As demonstrated by the pristine, brightly lit, and highly efficient environment in our showcase, the Coattech spray booth is engineered for high-volume body shops that refuse to compromise on quality. Our system delivers a flawless, factory-grade finish while prioritizing operator safety and environmental compliance.

Core Selling Points

Ventilation & Fan System

A pristine painting environment begins with superior airflow. Our advanced downdraft ventilation system utilizes high-capacity centrifugal fans to guarantee rapid paint mist extraction. This ensures an optimal overspray clearance rate, keeping the cabin air perfectly clean and protecting the painter's visibility and health while eliminating airborne defects on the vehicle's surface.

Filtration System

Achieving a flawless finish requires zero contamination. The booth features a multi-stage, ultra-fine filtration system. Pre-filters capture larger particulates, while high-efficiency ceiling filters provide a uniform, dust-free downdraft over the working area. The floor exhaust grid system traps paint overspray before it exits the booth, ensuring premium paint jobs and strict adherence to environmental emission standards.

Control System

Take total command of your curing environment. The Coattech intelligent control panel is the brain of the operation, offering full automation for the painting and baking cycles. Operators can easily monitor and adjust internal temperature, airflow pressure, and curing timers through a user-friendly interface. This smart automation reduces human error, optimizes energy consumption, and increases daily throughput.

CE & ISO Certification

Quality you can trust, verified by global standards. Our spray booths are fully CE marked and ISO certified, ensuring unimpeded entry into the rigorous European market and providing ultimate peace of mind for global buyers. These certifications guarantee that every Coattech booth is manufactured to the highest international standards of quality management, performance, and reliability.

Fire Safety & Explosion Protection

Safety is our uncompromised baseline. Designed to handle volatile compounds, the booth is equipped with ATEX-certified explosion-proof motors and lighting fixtures. The cabin walls are constructed from high-grade, fire-retardant EPS or rock wool insulation panels. Integrated safety valves and automatic emergency shutdown protocols ensure the highest level of protection for your technicians and your facility.

Technical Specification Sheet

Integrated Paint Mixing Room

Seamless Workflow & Enhanced Operational Efficiency

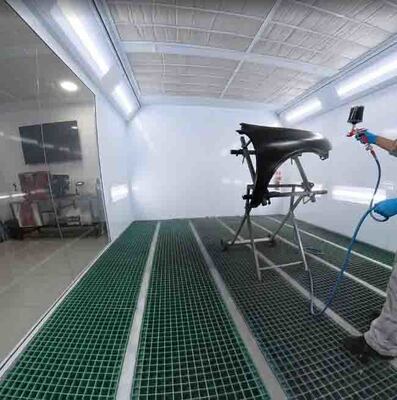

Visible through the large, transparent lateral observation windows is a dedicated paint mixing room positioned immediately adjacent to the main spray cabin. This integrated design provides a secure, well-lit, and tightly controlled environment specifically for color matching and paint preparation. It easily accommodates multi-tier shelving for paint tins, colorants, and computerized mixing banks, keeping all chemical handling neatly isolated.

The full-glass partition is a critical workflow feature—it allows for uninterrupted visual communication between the mixing technician and the spray operator. This dramatically improves operational synchronization and reduces downtime, all while ensuring volatile organic compounds (VOCs) remain safely contained and away from the pristine painting environment.

Paint Mixing Room Reference Specifications

Youtube Video Link Click
https://youtube.com/shorts/gmeL3h8y6Po

Frequently Asked Questions (FAQ)

1. Does the Coattech spray booth meet international safety standards?

Yes, our spray booths are designed for global compliance, featuring full CE and ISO certifications. All electrical components, including motors and lighting, are ATEX-certified for explosion protection to ensure maximum safety in volatile environments.

2. How does the booth ensure a high-quality, dust-free finish?

The booth utilizes a multi-stage filtration system. Pre-filters capture large particulates, while high-efficiency ceiling filters provide a uniform, dust-free downdraft over the working area to prevent contamination.

3. Is the system energy-efficient?

Yes, our intelligent control system is designed to optimize energy consumption during both painting and baking cycles. The system automates airflow pressure and temperature, reducing waste and increasing operational throughput.

4. What type of heating system is used?

Standard units are equipped with a high-efficiency diesel burner capable of reaching a maximum baking temperature of 80°C. Direct gas-fired heating systems are also available as an optional configuration.

5. How long does it take to reach operating temperature?

Our high-performance heating system is engineered for speed, taking approximately 4 to 5 minutes to heat the cabin from 20°C to 60°C.
