Automated Coating Line Solution for Precision Ball Studs and Small Metal Components

MOQ: 1
Price: USD2000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 500SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
OCCL-D8
NAME:
Automated Overhead Chain Conveyor Line
Power Supply::
220V/50HZ/1Ph Or Other Option
Using Energy::
Electric Or Other Option
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Color::
White Or Other Option
Application::
Metallic Products
Coating:
10-50um
Dimention::
As Require
Highlight:

Automated coating line for ball studs

,

Precision metal components coating system

,

Overhead conveyor coating line solution

Product Description

Automated Coating Line Solution for Precision Ball Studs & Small Metal Components


Short Introduction


Enhance your production throughput with CoatTech’s high-efficiency automated coating solution, specifically engineered for precision metal components like ball studs, spherical pins, and small industrial hardware. Our turnkey system utilizes custom high-density array jig designs and smart industrial curing technology to ensure uniform paint coverage, exceptional corrosion resistance, and optimized space utilization. Whether you are in the automotive, furniture, or mechanical assembly industry, CoatTech provides the scalable, precision-controlled finishing line you need to achieve consistent high-quality output.


Technical Specifications


Parameter Specification
Applicable Workpieces Ball studs, spherical pins, small precision metal parts
Conveying Method Automated overhead chain conveyor with high-density array
Jig / Hanger Design 1:1 custom high-density mold design for optimal airflow
Curing Technology Multi-zone intelligent PID thermal tunnel
Coating Quality Consistent thickness, zero paint sag, uniform finish
Efficiency High-volume continuous production, minimal manual handling
System Integration Turnkey installation with full electrical control support


FAQ


Q1: How does CoatTech handle high-density coating for small ball-shaped parts?

 A1: We specialize in 1:1 custom jig design. By analyzing the geometry of your ball studs or spherical components, our engineers create high-density hanger arrays that ensure 360-degree paint coverage while maximizing the number of parts processed per cycle, significantly increasing your production efficiency.


Q2: What makes your coating line suitable for precision automotive or mechanical parts?

A2: Our lines feature multi-zone independent PID temperature control in the curing tunnels. This precision ensures that even small, lightweight components achieve perfect paint adhesion and finish durability, meeting strict industrial quality standards for corrosion resistance and aesthetics.


Q3: Can this system be integrated into an existing factory layout?

A3: Yes. CoatTech provides turnkey industrial solutions. We utilize multi-level mezzanine structures to maximize vertical space, allowing us to install high-performance, automated coating lines in workshops with limited floor footprints.


Youtube video please clikck here

https://youtube.com/shorts/dmieC99tOpY


Ready to Build Your Custom System?


Every production line is unique. We design and manufacture each system based on your specific part size, output target, and coating requirements.

Contact us for a free consultation and sample testing at our 2,000 m² pilot workshop.

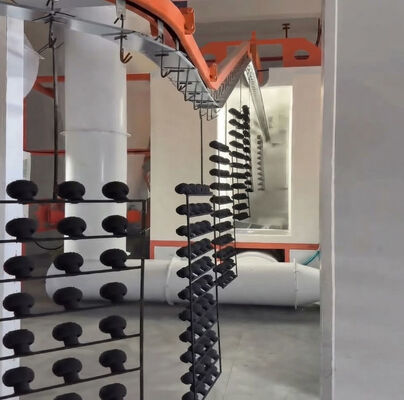

Automated Coating Line Solution for Precision Ball Studs and Small Metal Components 0

Automated Coating Line Solution for Precision Ball Studs and Small Metal Components 1
