Flexi-Stream Modular Assembly Belt Conveyor System
  • name

Flexi-Stream Modular Assembly Belt Conveyor System

MOQ: 1
Price: USD15000/SET-USD50000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 15SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CoatTech Flexi-Stream Series
Coating Thickness:
0.1-3mm
Power Supply:
AC 380V/50Hz
Heating Method:
Electric Heating
Condition:
New
Coating Speed:
Adjustable
Total Power:
10-50KW
Safety Features:
Emergency Stop Button
Coating Width:
500-2000mm
Control System:
PLC
Drying Temperature:
50-200℃
Coating Method:
Continuous
Frequency Converter:
Schneider 、Mitsubishi 、Delta
Conveyor Type:
Roller Conveyor
Dimention:
As Require
Main Door:
Fold Style Or Electric Rolling Style
Material:
Steel
Dryingmethod:
Hot Air Or Infrared Drying
Coatingspeed:
0-50 M/min
Energy Sources:
Water, Electricity,gas
Voltage:
380v Three Phase 50-60HZ
Productname:
Roller Coating Line
Safetyfeatures:
Emergency Stop, Safety Guards, Overload Protection
Product Description

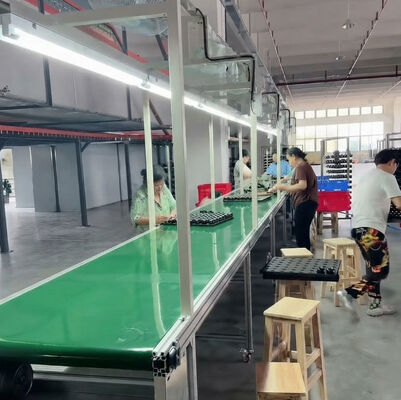

Flexi-Stream Modular Assembly Belt Conveyor System


The Flexi-Stream Conveyor System is built to bridge the gap between heavy industrial automation and meticulous manual labor. Featuring a clean, lightweight, and robust extruded aluminum frame, the system allows for rapid deployment and easy reconfiguration as your production needs evolve.


The durable, smooth-running green PVC/PU belt ensures the safe transit of delicate components, while the integrated overhead lighting system guarantees optimal visibility for workers performing detailed assembly or strict quality control checks. Designed with ergonomics in mind, the working height and layout minimize operator fatigue, directly boosting daily throughput and precision.


Technical Specifications

Below is the technical specification table, formatted for easy copying into your engineering and sales documentation.




Parameter Specification
Model Series CoatTech Flexi-Stream Series
Equipment Type Modular Belt Assembly / Inspection Conveyor
Frame Material Extruded Aluminum Alloy Profile (Anti-corrosion)
Belt Material Industrial Grade Green PVC / PU (Anti-static optional)
Belt Width Standard 400mm - 1200mm (Customizable)
Conveyor Length Customizable based on production floor layout
Working Height Ergonomic ~750mm - 800mm (Adjustable leveling feet)
Drive System Variable Frequency Drive (VFD) Motor
Conveying Speed 1-10 meters/minute (Adjustable)
Load Capacity Light to Medium Duty (10-50 kg/meter)
Lighting System Integrated Overhead LED Tubes
Power Supply 220V/110V Single Phase or 380V 3-Phase (Customizable)


Core Applications

The versatile nature of the Flexi-Stream system makes it an essential backbone for light-to-medium manufacturing environments, including:

1.Electronics Assembly: Processing PCBs, consumer electronics, and sensitive telecommunications hardware.

2.Automotive Components: Sorting, assembling, and inspecting small mechanical parts, fasteners, and interior trimmings.

3.Cosmetics: High-visibility manual inspection and packaging of bottles, vials, and boxed products.

4.E-commerce & Logistics: Order sorting, kitting, and final packaging preparation prior to shipping.


Frequently Asked Questions (FAQ)

Q: Can the conveyor length and width be customized for an existing factory layout?

A: Yes. The Flexi-Stream utilizes a modular aluminum profile system. CoatTech engineering can custom-build the width and total run length to perfectly match your facility's spatial constraints and production volume.


Q: Is the belt speed adjustable for different types of work?

A: Absolutely. The system is equipped with a Variable Frequency Drive (VFD) motor, allowing floor managers to easily dial the belt speed up or down depending on the complexity of the assembly task or the required production tact time.


Q: Can we add auxiliary equipment to the frame?

A: The slotted aluminum frame is highly adaptable. It easily accommodates the mounting of additional accessories such as pneumatic tool balancers, instructional monitor brackets, static eliminators, or secondary shelving for parts bins.


Q: What is the typical lead time for a customized assembly line?

A: Depending on the scale and specific customizations required, standard assembly line systems typically ship within 3 to 5 weeks from the final approval of engineering drawings. Contact our global sales team for precise project timelines.



Flexi-Stream Modular Assembly Belt Conveyor System 0


Flexi-Stream Modular Assembly Belt Conveyor System 1

Flexi-Stream Modular Assembly Belt Conveyor System 2
