Premium Furniture Spray Booth KT-JQ-I | CoatTech Intelligent Equipment

MOQ:	1
Price:	USD6000-USD12000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

KT-JQ-I

Coating:

10-50um

Using Energy::

Diesel,gas,steam,electric Or Other Option

Main Door::

Fold Style Or Electric Rolling Style

Power Supply::

380V/50HZ/3Ph Or Other Option

Application::

Furniture

Usage:

Automotive Painting, Furniture Painting, Industrial Painting

Material:

Steel

Heating System:

Riello Brand Burner

Noise Level:

≤80dB

Energy Sources::

Water, Electricity,gas

Product Description

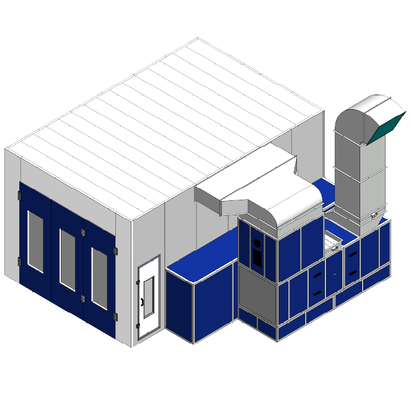

Premium Furniture Spray Booth (Model KT-JQ-I)

Deliver flawless finishes on woodworking projects and large-scale furniture with the KT-JQ-I Furniture Spray Booth by CoatTech Intelligent Equipment. Engineered for high-volume industrial applications, this system provides an optimized, dust-free environment ensuring superior surface coating quality.

Equipped with industry-leading Riello G20 heating technology and a high-efficiency dual turbo-fan system generating 25,000 m³/h of airflow, the KT-JQ-I guarantees rapid curing times and exceptional overspray clearance. Its robust 50mm EPS insulated wall panels ensure thermal efficiency and operational durability, making it an ideal investment for manufacturing facilities operating in demanding climates.

Key Performance Features:

1.Rapid Heating & Curing: Features a 304 stainless steel heat exchange furnace powered by a Riello G20 oil burner, capable of raising the baking temperature from 20℃ to 50℃ in just 10–15 minutes.

2.High-Capacity Airflow System: Dual 7.5KW single-inlet turbo fans (intake and exhaust) ensure a constant 0.35 m/s empty-load wind speed to instantly clear paint mist.

3.4-Stage Advanced Filtration: Includes G3 primary filters, F5 sub-high efficiency 3D viscose filters, dedicated paint mist collectors, and activated carbon bags to efficiently adsorb benzene and xylene.

4.Maximum Safety & Visibility: IP54 explosion-proof LED lighting delivering ≥850 LUX, combined with tempered glass observation windows and an automatic pressure relief lock on the personnel door.

Technical Specifications (KT-JQ-I)

Parameter	Specification
Model	KT-JQ-I
Inner Dimensions (L×W×H)	6000 × 4000 × 3000 mm
Outer Dimensions (L×W×H)	6110 × 6150 × 3450 mm
Air Collection Cabinet	Side wall mounted; paint mist collector faces inward. Square tube welded frame, height 1650mm.
Entry/Exit Door	Opening: 3000 × 2800 mm (W×H); Sheet metal bent door with EPS core filling. Includes tempered glass observation windows.
Personnel Door	Opening: 800 × 2000 mm (W×H); Features automatic pressure relief lock and tempered glass observation window.
Wall Panels	EPS wall panel assembly. Effective width: 1150mm, Total thickness: 50mm. Inner/outer 0.426mm white color steel plate with EPS core.
Roof Panels	Galvanized steel bent roof panels.
Lighting System	Top lighting (2 rows): 8 groups × 4 tubes = 32 tubes (18W each). Dedicated LED tubes for spray booths, IP54 explosion-proof lighting box, illuminance ≥ 850 LUX.
Plenum Chamber	Size: 6000 × 4000 × 450 mm (L×W×H). Square tube support bracket, bottom sheet metal bent powder-coated cotton slot, and top support net.
Cabinet Unit	Galvanized steel bent cabinet, positioned on the right side.
Intake / Supply Air Cabinet	1 unit single-inlet turbo fan. Motor power: 7.5KW (Model: KT-710#). Total airflow: 25,000 m³/h. Empty load wind speed: 0.35 m/s. Features supply air pneumatic regulating damper.
Exhaust Air Cabinet	1 unit single-inlet turbo fan. Motor power: 7.5KW (Model: KT-710#). Total airflow: 25,000 m³/h. Empty load wind speed: 0.35 m/s. Features supply air pneumatic regulating damper.
Heating System	Riello G20 oil burner heating, 304 stainless steel heat exchange furnace. Spraying temp: 0~20℃; Baking temp: Rises from 20℃ to 50℃ in 10-15 minutes.
Filtration System	1. Supply air primary filter cotton: EN 779 Class G3

	2. Sub-high efficiency filtration: Full depth 3D viscose; EN799 Class F5

	3. Paint mist collector: 485x485x500mm

	4. Activated carbon filter bag: Adsorbs benzene and xylene in exhaust gas.
Electrical Control System	Control box with conventional relays and buttons. Controls: Painting, heated painting, baking, baking time setting, lighting, fault indication alarm, power, emergency stop, pressure gauge.
Duct System	Includes 3 sections of 800x800x1000mm exhaust ducts, one 90° elbow, and one 45° elbow.
Total Power	17 KW
Documentation & Attachments	1. Accompanying files: Maintenance manual, circuit diagram, certificate of conformity, packing list.

	2. Equipment three-view drawings attached.
Warranty & Remarks	1-year warranty. Free service for quality issues during the warranty period; paid service after expiration. Consumables (lighting tubes, filter cotton) and man-made damages are excluded.

Frequently Asked Questions (FAQ)

Q: Can the KT-JQ-I spray booth accommodate custom furniture sizes?

A: Yes, the standard inner dimensions are 6m x 4m x 3m, which comfortably fits most large furniture sets. We can also engineer custom dimensional expansions to fit specific manufacturing requirements.

Q: Is this spray booth suitable for operation in the Middle East climate?

A: Absolutely. The heavy-duty 50mm EPS wall panels offer excellent thermal insulation, ensuring stable internal baking temperatures regardless of extreme external heat. The robust exhaust systems also maintain safe and clean operational environments.

Q: How does the exhaust filtration handle VOCs (Volatile Organic Compounds)?

A: The system utilizes a comprehensive 4-stage filtration process. Specifically, the final stage relies on industrial-grade activated carbon filter bags that effectively adsorb harmful VOCs like benzene and xylene before the air is exhausted.

Q: What is included in the installation and warranty package?

A: The KT-JQ-I comes with detailed three-view drawings, circuit diagrams, and a maintenance manual to facilitate smooth installation. It is backed by a 1-year warranty covering core component quality, with dedicated after-sales support available globally.

Need a custom quotation or facility layout consultation? Contact Tim, Overseas Sales Manager at CoatTech Intelligent Equipment, to discuss tailored production line solutions and shipping logistics.
