CoatTech Classic Series Automotive Spray Booths

Engineered for Extreme Environments. Flawless Finishes Every Time.

Welcome to the gold standard of automotive coating. Operating a collision repair center in demanding regions like the Middle East requires equipment that can withstand intense ambient heat, prevent dust infiltration, and maintain the highest safety standards.

The CoatTech Classic Series (CT-O, CT-B, CT-T) delivers uncompromised performance, ensuring a pristine, mirror-like finish for cars, SUVs, vans, and light trucks.

Designed by CoatTech Intelligent Equipment (Guangzhou) Co., Ltd., our booths combine robust downdraft airflow, premium insulation, and advanced eco-filtration to maximize your productivity and protect your workforce.

7 Core Technologies That Define CoatTech Excellence

When investing in a paint line, you are investing in the future of your business. Our Classic Series is built upon seven foundational pillars that guarantee performance, safety, and profitability:

1.High-Efficiency Heating System: The heating method directly impacts the final baking effect and your daily operational costs. Equipped with a premium Riello G20 oil burner and a 200KW 304 stainless steel furnace, our booths ensure rapid, uniform heat distribution to cut down cycle times and save fuel.

2.Optional Infrared (IR) Curing System: For facilities looking to maximize throughput, we offer a specialized infrared curing upgrade. IR technology provides highly targeted, ultra-fast drying that is significantly more energy-efficient than traditional convection heating.

3.Advanced Ventilation & Fan System: A flawless finish requires a pristine environment. Delivering a massive 25,000m³/h airflow, our powerful downdraft ventilation system rapidly exhausts hazardous paint mist and overspray, ensuring maximum cabin cleanliness.

4.Multi-Layer Filtration System: Your spray quality and environmental compliance rely entirely on filtration. From inlet primary filters to top high-efficiency ceiling filters, floor fiberglass, and activated carbon exhaust units, our system rigorously captures micro-particles and strips VOCs from the air.

5.Smart Control System: Automation is the core of modern operational efficiency. Our intuitive mechanical control box seamlessly manages everything from phase-specific temperature settings (spray vs. bake) and accumulated timers to fault diagnostics, streamlining your operator's workflow.

6.Strict Fire Safety & Explosion Protection: Safety is our baseline, not an afterthought. Every CoatTech booth is fully equipped with explosion-proof and flameproof LED lighting, pressure-relief safety doors, and emergency stop systems to protect your personnel and property.

7.CE & ISO Certified Quality: Quality you can trust globally. Our equipment holds strict CE and ISO certifications—serving as our passport to the highly regulated European market and acting as a universal guarantee of manufacturing excellence for our clients worldwide.

Choose Your Ideal Configuration

While all three models share our legendary 2.2T heavy-duty galvanized basement and EPS-insulated snow-white cabin panels, they feature distinct air handling technologies to suit your specific operational demands.

Specification Table

1. CT-O (Outer Rotor Fan Model)

The Configuration: 2x 4KW Outer rotor centrifugal input fans & 1x 7.5KW exhaust fan.

The Advantage: Compact & Energy Efficient. The motor is integrated directly inside the fan impeller, saving space and drastically reducing operational vibration. Ideal for standard body shops looking for a quiet, highly reliable, and energy-saving solution.

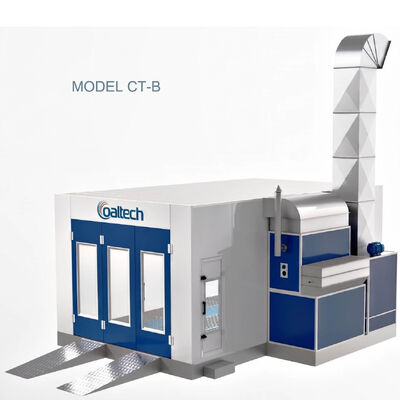

2. CT-B (Belt-Driven Fan Model)

The Configuration: 2x 4KW Belt-driven centrifugal input fans & 1x 7.5KW belt-driven exhaust fan.

The Advantage: Traditional Power & High Airflow. Belt-driven fans are the proven workhorses of the industry. They excel at pushing heavy air volumes through high resistance, making them perfect for high-throughput shops that rely on robust mechanical endurance.

3. CT-T (Turbo Direct Drive Model)

The Configuration: 1x 7.5KW Turbo direct drive blower for input & 1x 7.5KW for exhaust, paired with advanced activated carbon filter bags.

The Advantage: Maximum Efficiency & Low Maintenance. By eliminating belts and pulleys, the turbo system transfers 100% of motor power directly to the airflow. Enjoy zero belt-wear maintenance, instant power delivery, and superior emission control for high-intensity operations.

Frequently Asked Questions (FAQ)

Q: Can the CoatTech Classic Series handle extreme summer heat?

A: Yes. Our cabins are constructed with 0.426mm double-sided color steel plates filled with high-density EPS insulation. This creates a thermal barrier that prevents intense external heat from disrupting the carefully controlled internal baking environment.

Q: How does the booth prevent desert dust and sand from ruining the paint job?

A: The multi-layer filtration system creates a fully sealed, positive-pressure environment. When cabin doors are opened, clean air pushes out, preventing external dust from blowing in.

Q: Are the electrical components safe for volatile paint fumes?

A: Absolutely. Our baseline safety standard includes full flameproof light boxes and explosion-proof LED tubes, eliminating ignition risks in the spray zone.

Ready to Upgrade Your Coating Line?

Maximize your shop's productivity and deliver flawless finishes, no matter the environmental conditions. Equip your facility with CoatTech's intelligent design and unparalleled reliability.
