Full Downdraft Water Curtain Downdraft Spray Booth

Full Downdraft Water Curtain Downdraft Spray Booth

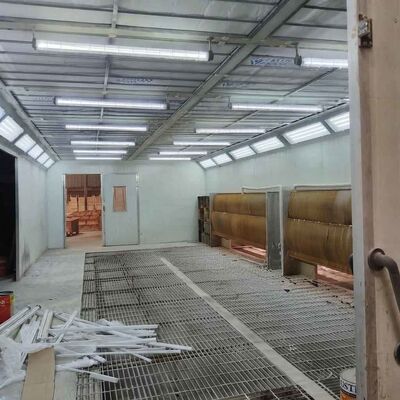

What you saw from the photo is the installation going to be finsihed in one day.

Core Engineering Features

1. Advanced Ceiling Air Filtration (EU5/F5 Standard) The ceiling plenum is equipped with our premium FILTER EU5/F5 YW-6000 series filter media. This high-density roof filtration system ensures a laminar flow of ultra-clean air, completely intercepting micro-dust particles before they enter the painting zone, guaranteeing a flawless, mirror-like finish for high-end industrial and automotive applications.

2. Multi-Angle Shadow-less Lighting System Precision finishing requires perfect visibility. Our booth features an extensive array of high-intensity LED light fixtures strategically angled along the ceiling borders and side walls. This dual-row, shadow-less illumination setup eliminates blind spots, allowing operators to meticulously inspect paint thickness, color uniformity, and surface quality in real-time.

3. Heavy-Duty Downdraft Grating Floor The entire workspace is founded upon industrial-grade heavy steel grating, designed to withstand substantial load capacities. Beneath the grating lies a highly efficient sub-floor exhaust channel. This full down-draft structural design ensures that overspray and volatile organic compounds (VOCs) are immediately pulled downward, away from the operator's breathing zone and the workpiece.

4. Eco-Friendly Water Curtain Paint Mist Treatment Integrated seamlessly into the side wall is our advanced Water Curtain Paint Booth unit. Utilizing a continuous flow of water across guide plates, it effectively captures and neutralizes airborne paint mist. This system not only drastically reduces environmental emissions but also simplifies maintenance routines compared to traditional dry-filter methods.

5. Modular Insulated Enclosure & Optimized Logistics The booth is constructed with high-grade, thermal-insulated sandwich panels providing excellent acoustic insulation, fire resistance, and temperature retention. Furthermore, the design is specifically optimized for international logistics. To overcome shipping container limitations, the entire structural assembly and oversized machinery are designed to be shipped efficiently as bulk, disassembled parts, allowing for rapid and precise on-site assembly.

Technical Table

Q1: What level of air filtration does the spray booth provide?

1.The system is equipped with EU5 / F5 grade (YW-6000 series) high-efficiency ceiling filter media.

2.It generates a vertical laminar airflow that intercepts micro-dust particles before they reach the painting surface.

Q2: How does the Water Curtain system manage paint overspray?

1.Airborne paint mist is drawn toward a continuous water film running across guide plates, which captures paint particles effectively.

2.This liquid scrubber mechanism reduces environmental emissions and simplifies routine cleanup compared to dry-filter setups.

Q3: How is the equipment packaged to fit international shipping containers?

1.All structural panels and oversized machinery components are prepared as knock-down bulk parts.

2.This disassembled format fits standard ocean freight containers and facilitates fast reassembly at the destination site.

Q4: How does the lighting design prevent shadows during finishing work?

1.High-intensity LED fixtures are mounted along the ceiling borders and side walls at precise angles.

2.The resulting shadow-less illumination allows operators to inspect paint thickness, color tone, and surface smoothness without blind spots.

Q5: What materials are used for the enclosure and flooring?

1.The booth walls consist of flame-retardant EPS or Rockwool sandwich panels for acoustic and thermal insulation.

2.The floor features heavy-duty galvanized steel grating positioned over a sub-floor exhaust channel to support heavy workpieces while maintaining down-draft air movement.
