Integrated Water Curtain Spray Booth, Dust-Free Flash-Off Zone & Smart Curing Chamber
  • name
  • name
  • name
  • name

Integrated Water Curtain Spray Booth, Dust-Free Flash-Off Zone & Smart Curing Chamber

MOQ: 1
Price: USD6000-USD12000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Spray Booth with Integrated IR & Air Jet System Series
Main Door::
Fold Style Or Electric Rolling Style
Coating:
10-50um
Usage:
Automotive Painting, Furniture Painting, Industrial Painting
Using Energy::
Diesel,gas,steam,electric Or Other Option
Noise Level:
≤80dB
Power Supply::
380V/50HZ/3Ph Or Other Option
Material:
Steel
Energy Sources::
Water, Electricity,gas
Application::
Bus/truck Or Other Metallic Products
Heating System:
Riello Brand Burner
Highlight:

Integrated Water Curtain Spray Booth

,

Dust-Free Flash-Off Zone Spray Booth

,

Smart Curing Chamber Spray Booth

Product Description

Turnkey Liquid Coating Line: Integrated Water Curtaim Spray Booth, Dust-Free Flash-Off Zone & Smart Curing Chamber



In industrial liquid finishing, achieving a flawless, mirror-like surface while maintaiing environmental compliance is a major challenge.


CoatTech Intelligent Equipment presents an integrated, cleanroom-grade Liquid Spray Painting & Curing Line,

engineered specifically for high-efficiency finishing of furniture panels, wooden doors, sheet metal enclosures, and composite components.


By combining water curtain overspray filtration, solvent flash-off isolation, and multi-tier thermal curing,

this modular system eliminates surface defects (pinholes, dust inclusions, and runs) while delivering high throughput and low VOC emissions.


Core System Architecture & Operational Workflow

[Pre-Treatment & Dusting] ➔ [Water Curtain Spray Booth] ➔ [Flash-Off / Transition Zone] ➔ [Multi-Tier ]

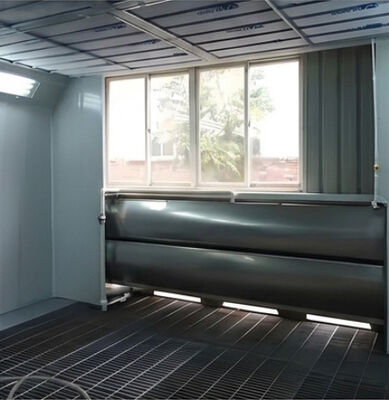

1. Water Curtain Spray Booth (Wet Overspray Capture & Down-Draft Ventilation)


Function: Primary liquid spraying station for primers and topcoats.


Key Features:

Heavy-duty stainless-steel water curtain wall effectively captures over-sprayed paint mist.

Ceiling (Plenum Chamber) with F5-grade filter media ensures positive-pressure clean air distribution.

Galvanized floor grating exhaust system draws paint particles downwards, keeping the operator zone clean and breathable.


2. Dust-Free Flash-Off & Transition Zone (Evaporation Control)


Function: Controlled solvent evaporation and level-out environment.


Key Features:

Anti-static epoxy flooring and airtight sliding isolation doors maintain strict cleanliness.

Prevents ambient dust contamination while allowing liquid coatings to naturally level before entering heat curing.

Prevents solvent popping and blistering caused by premature thermal exposure.


3. Smart Curing & Drying Chamber (Multi-Tier Stacking)


Function: Accelerated thermal curing and film solidification.


Key Features:

Overhead shadowless illumination and targeted infrared/thermal heating modules.

Heavy-duty multi-layer drying racks designed for flat stacking to prevent sagging and maximize floor space utilization.

Independent temperature and ventilation control to optimize energy consumption.


Target Applications & Workpiece Compatibility


This versatile liquid coating system is ideal for:


1.Woodworking & Custom Furniture: Cabinet doors, solid wood doors, veneer panels, MDF, and decorative trim.


2.Sheet Metal & Enclosures: Control cabinets, equipment housings, server racks, and aluminum panels.


3.Plastic & Composite Components: Automotive interior trims, 3C electronic casings, and architectural panels.



Technical Specifications Sheet



Parameter Specification
System Type Modular Liquid Spraying, Flash-off & Curing Line
Filtration Efficiency Air Filter Rate ≥ 98% (Dust Particles ≥ 5μm)
Overspray Capture Method Continuous Stainless Steel Water Curtain + Sub-floor Filtration
Airflow Velocity 0.25 - 0.35 m/s (Uniform Downward Draft)
Illumination Level ≥ 800 Lux (Shadowless LED / Explosion-Proof Fixtures)
Curing Temperature Range Ambient to 80°C (Adjustable for Water-Based & Solvent-Based Paints)
Heating Medium Options Electric Infrared, Natural Gas, Diesel, or Steam Heat Exchanger
Rack Configuration Multi-Tier Heavy-Duty Mobile Drying Racks (Customizable Layer Pitch)
Floor Coating Industrial Anti-Static Epoxy Resin Coating
Enclosure Structure Double-Skin Rockwool / EPS Insulated Sandwich Panels (50mm - 100mm)
Safety Compliance Anti-Explosion Fan Units, Emergency Stop, Over-temperature Alarm


Why Upgrade to CoatTech's Integrated Coating Solution?


1.Flawless Coating Yield: Cleanroom-class positive air pressure drastically reduces rework rates caused by airborne dust particles.


2.Space-Efficient High Throughput: Vertical multi-tier rack storage inside the drying room triples curing capacity per square meter.


3.Environmental Compliance: Dual-stage water scrubbing and VOC exhaust filtration ensure complance with strict international environmental regulations.


4.Custom Engineering: Tailored layout design (straight line, L-shape, or U-shape) to fit your existing facility constraints.


Frequently Asked Questions


Q1: Is this spray booth suitable for both water-based and solvent-based paints?

A: Yes. CoatTech designs air handling and filtration systems compatible with both waterborne coatings and traditional solvent-based polyurethane (PU), polyester (PE), and epoxy paints.


Q2: How does a water curtain spray booth compare to dry filter spray booths?

A: Water curtain booths provide continuous paint mist capture without clogging filter media rapidly when high paint volumes are sprayed. This reduces consumable costs and provides superior fire safety for solvent spraying.


Q3: Can the layout be customized to match my workshop dimensions?

A: Absolutely. CoatTech offers complete modular custom engineering, including booth sizing, air supply handling, conveyor integration, and drying room heating capacity.
