1. Executive Summary

CoatTech Intelligent Equipment (Guangzhou) Co., Ltd. introduces its premium Industrial Automated High-Pressure Vehicle Washing & Pre-Treatment Tunnel System.

Engineered for heavy-duty commercial fleets, oversized machinery, rail transit, and surface pre-treatment lines, this system combines full-coverage high-pressure fluid delivery with intelligent circulation and automated controls.

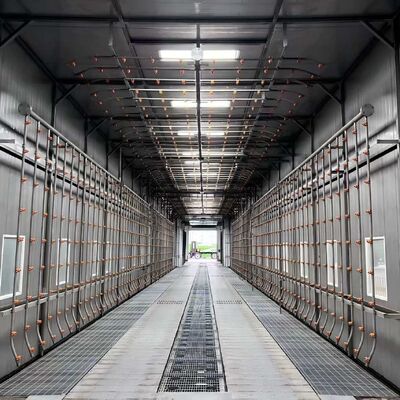

Featuring a multi-stage high-pressure manifold array, heavy-duty floor drainage grates, external filtration units, and insulated enclosure panels with observation windows, the CoatTech Tunnel System delivers efficient surface cleaning, degreasing, and chemical pre-treatment while minimizing water consumption and environmental impact.

2. Key Technical Features

1.360° Multi-Angle High-Pressure Spray Matrix: Multi-tiered side, top, and undercarriage spray manifolds equipped with precision high-pressure nozzleds ensure complete coverage for large vehicles and complex metal structures.

2.External Pumping & Filtration Station: Heavy-duty industrial centrifugal pumps, pressure gauges, and multi-stage fluid filtration tanks ensure steady operating pressure and effective water recycling/degreasing.

3.Modular Insulated Tunnel Enclosure: White insulated Sandwich Panel walls with sealed inspection windows contain overspray, suppress noise, and maintain temperature for chemical pre-treatment cycles.

4.Heavy-Duty Drainage & Grated Flooring: Centralized drainage channel with anti-slip steel floor grating ensures rapid effluent runoff, sludge removal, and safe operator walkability.

5.Zoned Pressure Control Manifold: External manifold assembly with manual and automated isolation valves allows precise zone-by-zone pressure adjustments and targeted cleaning cycles.

3. Technical Specifications

4. Frequently Asked Questions (FAQ)

Q1: What applications are best suited for this high-pressure wash tunnel?

A: It is ideal for commercial vehicle fleets (trucks, buses, construction machinery), rail equipment cleaning, and industrial pre-treatment processing (degreasing, phosphating, rinsing) prior to spray painting or coating.

Q2: How does the system handle water conservation and effluent management?

A: The system integrates multi-stage settling and filtration tanks with recirculating pumps, allowing wastewater to be filtered, treated, and reused for initial wash cycles to significantly reduce overall water consumption.

Q3: Can the tunnel dimensions and nozzled configurations be customized?

A: Yes. CoatTech designs custom tunnel lengths, heights, pressure parameters, and nozzled patterns based on the dimensions of the target vehicle/workpiece and specific throughput requirements.

Q4: How is oversized equipment shipped and assembled internationally?

A: Equipment is manufactured in modular structural units and shipped as disassembled components in ocean containers. Clear engineering blueprints and bolt-together connections enable fast, straightforward on-site installation.
