Coating Solution for Kitchen Cabinets Spray Booths Air Compressors

MOQ:	1
Price:	USD6000-USD12000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

Solution for Kitchen Cabinets & Wardrobes Series

Main Door::

Fold Style Or Electric Rolling Style

Coating:

10-50um

Usage:

Industrial Abrasive Blasting

Using Energy::

Diesel,gas,steam,electric Or Other Option

Noise Level:

≤80dB

Power Supply::

380V/50HZ/3Ph Or Other Option

Material:

Steel

Energy Sources::

Water, Electricity,gas

Application::

Bus/truck Or Other Metallic Products

Heating System:

Riello Brand Burner

Highlight:

coating solution for kitchen cabinets

spray booth coating solution

air compressor coating solution

Product Description

Complete Industrial Coating Solution for Kitchen Cabinets & Wardrobes: Spray Booths & Air Compressors

Optimize your furniture manufacturing line with CoatTech's turnkey finishing systems. Designed specifically for high-efficiency kitchen cabinet and wardrobe coating, our integrated solutions combine precision temperature-controlled baking booths, ergonomic open-face spray booths, and high-performance screw air compressors.

Streamlining Furniture Production with Turnkey Coating Systems

In the modern manufacture of high-end kitchen cabinets and wardrobes, surface finish quality dictates brand value. CoatTech Intelligent Equipment provides complete, factory-direct coating lines engineered to eliminate bottlenecks, minimize volatile organic compound (VOC) emissions, and deliver mirror-smooth paint finishes. Whether you are scaling up output or upgrading an existing facility, our modular equipment configurations meet international safety and environmental standards.

Core Equipment Lineup & Technical Specifications

1. Spray & Bake Booth (Diesel Heating) - Model: CT-PQ-III-PLUS

Parameter	Technical Specification
Internal Dimensions (L×W×H)	8,000 × 4,500 × 3,000 mm
External Dimensions (L×W×H)	8,113 × 5,950 × 3,800 mm
Basement Structure	300mm high sheet metal bent basement with square tube support. Floor features 30x4mm flat iron and twisted steel welded grating (Load capacity > 2T). Includes 2 drive-in ramps.
Doors	Main Entrance: 3,000 × 2,800 mm (W×H) with EPS core & glass window. Personnel Door: 800 × 2,000 mm with pressure-relief lock.
Panels & Insulation	Walls: 50mm thick high-density EPS panels (1150mm wide), 0.426mm white color steel plates. Roof: Galvanized structural interlocking profiles.
Lighting System	Top: 40 pcs 18W T8 LED tubes; Sides: 20 pcs 18W T8 LED tubes. IP54 explosion-proof fixtures (≥1000 LUX).
Air Circulation	Intake: 2 × 4KW double-intake centrifugal fans (25,000 m³/h). Exhaust: 1 × 7.5KW centrifugal fan (25,000 m³/h).
Heating System	Riello G20 diesel burner with 200KW 304 stainless steel heat exchanger (Rapid heating: 20°C to 60°C in 10-15 mins).
Filtration & Total Power	4-stage filtration (G3 pre-filter, F5 ceiling filter, G3 floor filter, active carbon VOC adsorption). Total Power: 17 KW.

2. Open Spray Booth - Model: CT-CK-II-PLUS

Parameter	Technical Specification
Internal Working Zone (L×W×H)	4,000 × 3,000 × 2,500 mm
Design Structure	Open-face design (3,000 × 2,500 mm opening), 1.5mm bent galvanized sheet metal with white powder-coated finish.
Lighting System	Top lighting: 6 pcs 18W explosion-proof LED tubes (≥800 LUX).
Exhaust & Ventilation	1 × 3KW single-intake axial fan (T40-3C, belt drive), total airflow 15,000 m³/h.
Filtration & Control	Labyrinth paper filter, G3 fiberglass filter, and rear-mounted active carbon granules for VOC absorption. Relay control panel.
Total Power	4 KW

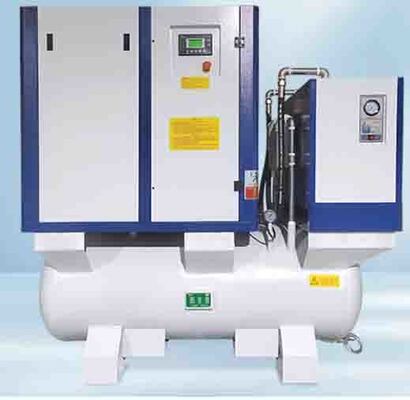

3. 4-in-1 Integrated Screw Air Compressor - Model: ARS-30HP-0.8MPA

Parameter	Technical Specification
System Configuration	4-in-1 Design: Screw Air Compressor + 600L Air Tank + Refrigerated Dryer + QPS Precision Filters
Motor Power & Voltage	22 kW / 30 HP, 380V / 220V, 50Hz (Customizable)
Air Delivery Capacity	3.6 m³/min
Maximum Working Pressure	8 Bar (0.8 MPa)
Air Tank Specification	600 L Nominal Capacity, 4.75 mm steel thickness
Air Treatment	Refrigerated Dryer (Dew point 2-8°C) & 3-stage QPS Precision Filters (Filtration precision ≤0.01μm / ≤0.01ppm)
Dimensions & Weight	1,950 × 950 × 1,950 mm; Total Weight: 660 KG

Why Choose CoatTech for Furniture Coating Lines?

1.Factory Direct Advantage: Direct manufacturing in Guangzhou, China, offering competitive pricing, customization, and rigorous quality control.

2. Turnkey Integration: Seamlessly engineered equipment pairing—from dust-free spray application and fast thermal curing to oil-free clean compressed air supply.

3.Global Logistics & Support: Comprehensive export documentation, detailed wiring diagrams, maintenance manuals, and expert online engineering support.

4.Eco-Friendly Filtration: Advanced multi-stage filtration and active carbon adsorption units designed to meet strict environmental and workplace safety standards.

Coating Solution for Kitchen Cabinets Spray Booths Air Compressors
