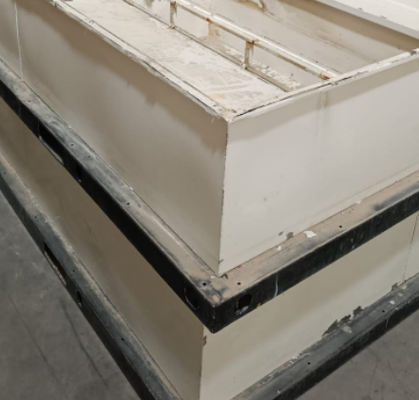

Industrial Electric Hot-Air Circulation Moisture Drying Oven for Coated Parts

MOQ:	1
Price:	USD8000-USD1200/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

Air Conditioner Component Powder Coating Line

Main Door::

Fold Style Or Electric Rolling Style

Coating:

10-50um

Using Energy::

Diesel,gas,steam,electric Or Other Option

Noise Level:

≤80dB

Power Supply::

380V/50HZ/3Ph Or Other Option

Material:

Steel

Energy Sources::

Water, Electricity,gas

Application::

Bus/truck Or Other Metallic Products

Heating System:

Riello Brand Burner

Highlight:

Industrial electric drying oven

Hot-air circulation moisture oven

Coated parts drying oven

Product Description

Hey Guys,Let us continue break this project into 4 sub project here,here is 2nd sub project current

Project Complete Air Conditioner Component Immersion Pretreatment & Powder Coating Production Line

Document Reference: CTI-EXP-2026-ACPC

Date: August 28,2026

Notice to Global Clients: This proposal details the complete technical specifications, process workflow, system architecture, safety guidelines, and standard scope of supply for an automated/semi-automated industrial powder coating plant designed for air conditioner metallic enclosures and components.

Industrial Electric Hot-Air Circulation Moisture Drying Oven for Coated Parts

Project 2

When we designed this specific batch-type powder coating line for air conditioner enclosures, our primary headache wasn’t just hitting the 200°C curing mark—it was figuring out how to stop water drag-out between the 4-stage silane tanks and the moisture-drying oven. If you've ever dealt with flash-rust on heavy steel frames (up to 300kg with dual hangers),

you know standard catalog specs don't cut it. We ended up combining an overhead monorail loop with ground transport carts so workers aren't breaking their backs moving 3.8-meter panels.

Below is the exact engineering breakdown of the setup we build and ship out in standard 40HQ containers—no fluff, just raw technical parameters and real fabrication specs

3. Detailed Equipment Technical Specifications

3.1 Immersion Pretreatment System (4-Stage Tanks)

Designed for complete surface oil removal, etching, and silane passivation to ensure excellent paint adhesion and long-term anti-corrosion performance.

Parameters	Specifications
Processing Capacity / Speed	Designed process rate: 10 min / hanger (batch rate)
Overall Dimension (System)	L8.5 m × W4.6 m × H3.5 m
Single Tank Dimensions	L4.5 m × W2.0 m × H3.5 m (4 individual tank units)
Internal Plate Material	3.0 mm SUS304 / SUS201 Stainless Steel plate seamless welding
External Structural Frame	100 mm × 100 mm × 3.0 mm Square Steel Tubing heavy-duty structure
Tank Configurations	Tank 1: Degreasing \| Tank 2: Rinse 1 \| Tank 3: Silane Passivation \| Tank 4: Rinse 2

3.2 Water Moisture Drying Oven

Rapidly removes moisture remaining on workpieces post-rinsing to prepare the metal surface for powder adhesion without flash rust.

Parameters	Specifications
Oven Internal/External Dimensions	L4.5 m × W3.09 m × H3.8 m (Outer Envelope)
Structural Construction	Modular sandwich panel bridge-type insulation structure. Inner plate: 0.7 mm Galvanized Steel; Outer plate: 0.6 mm Color-coated Steel (White)
Thermal Insulation	120 mm high-density Rock Wool (Density: 100-110 kg/m³), with silicate aluminum wool filling at seams. Surface temp. ≤ Ambient + 10°C
Heating Source & Capacity	Electric Heating Element (Finned SS heating tubes, 2kW × 42 pcs = 84 kW total power)
Air Recirculation System	Top suction and bottom supply forced hot air circulation via 5.5 kW high-temperature centrifugal fan (16Mn impeller, C-type drive)
Drying Thermal Parameters	Operating Temp: 120°C ~ 160°C \| Heat-up time: 25°C to target temp ≤ 40 min \| Energy Consumption: ~84 kWh

3.3 Powder Curing Oven

High-temperature baking furnace engineered to melt, flow, and cross-link thermosetting powder coatings into a uniform protective shell.

Parameters	Specifications
Oven Envelope Dimensions	L4.5 m × W3.09 m × H4.1 m
Structural Panel Spec	Knock-down modular panels; 0.7 mm Galvanized Inner / 0.6 mm Color-Coated Outer / 120 mm Rock Wool Board (100 kg/m³)
Door & Edge Trimming	Double open doors (2 wings) with P-type high-temperature silicone rubber sealing strip; 1.2 mm cold-rolled steel sky-blue outer corner wrapping
Heating Source & Capacity	Electric Heating Elements (Finned heating tubes, 2kW × 54 pcs = 108 kW total power) mounted along lower sides
Recirculation Fan Unit	5.5 kW high-temp centrifugal fan (P=5.5kW, 4-72-5A model, 16Mn thermal-resistant impeller)
Curing Thermal Parameters	Operating Temp: 180°C ~ 200°C \| Curing time: 15-20 min \| Heat-up time: 室温 25°C to 200°C ≤ 40 min \| Energy Consumption: ~108 kWh

Today That is all,let us continue it tomorrow Aug 29th
