Large-Scale Industrial Spray Booth & Finishing Chamber

Large-Scale Industrial Spray Booth & Finishing Chamber

 Engineered for heavy equipment and vehicle finishing. COATtech’s modular spray booth features shadowless multi-angle LED arrays, integrated floor filtration, and cleanroom-grade paneling.

Mastering Large-Scale Coating Precision: The COATtech Modular Finishing Chamber

Achieving an immaculate coat on massive industrial machinery, structural steel, or oversized vehicles comes down to two critical factors: pristine air control and uncompromised visibility. The COATtech Modular Industrial Spray Booth eliminates shadows, dust entrapment, and airflow turbulence—giving operators the clean environment needed for high-volume, defect-free production.

Engineering Highlights

1.Shadowless 360° Illumination System: Outfitted with high-lumen, multi-tier LED light banks along both ceiling angles and dual-level sidewalls. This eliminates glare and blind spots, ensuring painters can visually verify film thickness and color uniformity in real time.

2.Optimized Downdraft & Side-Filtration: High-efficiency floor-level extraction grates capture paint overspray instantly. Clean air flows smoothly through ceiling plenum filters down to the side exhaust banks, keeping air velocity consistent and preventing dust settlement.

3.Heavy-Duty Modular Wall Architecture: Constructed with high-density insulated sandwich panels engineered for structural strength, ambient sound dampening, and cleanroom-grade sealing against external factory debris.

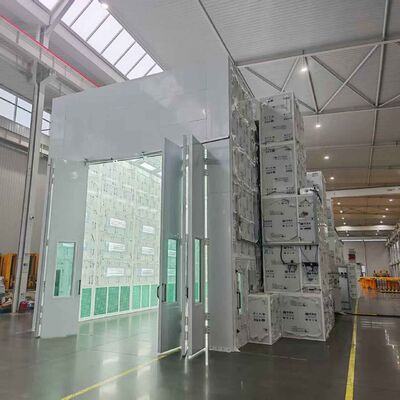

4.Seamless Logistics & Access: Wide-clearance multi-fold main access doors equipped with full-height observation windows allow smooth drive-in and trolley loading for heavy assemblies, paired with floor guidance lines for fast setup.

5.Integrated Process Control: Built-in side access service doors and surface-mounted digital control stations allow operators to monitor airflow rates, differential pressure, and lighting directly from the booth exterior.

Technical Specifications Sheet

Frequently Asked Questions

What makes shadowless lighting essential in large spray booths?

When coating large assemblies, shadows caused by single-direction lighting lead to uneven film build, sags, and missed spots. Multi-angle sidewall and ceiling LEDs ensure complete lighting coverage across all complex angles and underhangs.

Can this booth be customized for existing facility floor plans?

Yes. The modular panel design allows the length, width, and height to be adjusted to match factory clearances, overhead crane pathways, or specialized rail-loading systems.

Ready to elevate your finishing quality?

Contact CoatTech’s engineering team to customize a spray booth layout built around your part dimensions and throughput targets.
