Stainless Steel Water-Curtain Spray Booth for Industrial Coating
  • name
  • name
  • name

Stainless Steel Water-Curtain Spray Booth for Industrial Coating

MOQ: 1
Price: USD6000-USD12000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
Large-Scale Industrial Spray Booth Series
Usage:
Automotive Painting, Furniture Painting, Industrial Painting
Coating:
10-50um
Energy Sources::
Water, Electricity,gas
Noise Level:
≤80dB
Application::
Bus/truck Or Other Metallic Products
Material:
Steel
Power Supply::
380V/50HZ/3Ph Or Other Option
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Heating System:
Riello Brand Burner
Product Description

Stainless Steel Water-Curtain Spray Booth for Industrial Coating

At CoatTech, every project starts with a simple question: how can we make the coating process cleaner, safer, and easier to operate? Our latest delivered spray booth is a good answer.


Project Overview

This newly commissioned water-curtain spray booth is designed for high-volume industrial painting. Three full-height stainless steel water-curtain walls line the workspace, capturing overspray the moment it leaves the workpiece. The result is a dramatically cleaner exhaust stream and a noticeably brighter, safer cabin for operators.

Key Features

Stainless Steel Water-Curtain Walls — Corrosion-resistant, easy to rinse, built for long service life in demanding paint environments.

Modular Ceiling System — Integrated rows of industrial lighting deliver uniform, shadow-free illumination across the entire work area.

Anti-slip Grating Floor — Heavy-duty black metal grate platform with an orange support structure underneath, ensuring safe footing and efficient water/paint collection.

Optimized Airflow — Clean, well-organized interior with smooth walls and a spacious layout, reducing turbulence and improving transfer efficiency.

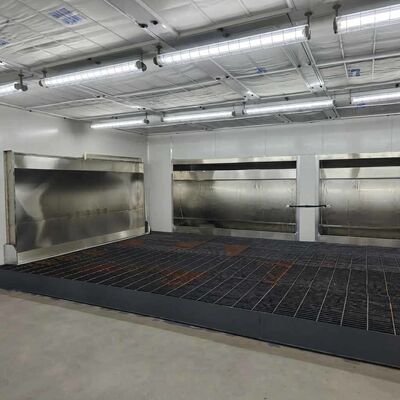

The wide-angle interior shows the hallmarks of a CoatTech build: clean lines, robust steelwork, and a workspace that feels as orderly as it is functional.

Specification Table

The following table summarizes the main technical specifications of the delivered water-curtain spray booth. All parameters can be tailored to the customer’s workpiece size, paint chemistry, and daily throughput.

No.

Parameter

Specification

1

Model

CT-WCWB-2026 (Custom)

2

Booth Type

Stainless Steel Water-Curtain Spray Booth

3

Application

Industrial painting / coating

4

Water-Curtain Walls

3 × full-height stainless steel (304) panels

5

Cabin Material

Stainless steel + galvanized steel frame

6

Internal Dimensions (L×W×H)

Customized to workpiece (standard modular bay)

7

Grating Floor

Heavy-duty anti-slip metal grate + support structure

8

Lighting

Modular ceiling, integrated fluorescent / LED rows

9

Airflow / Ventilation

Down-draft / water-wash capture system

10

Filtration

Water curtain primary capture + dry filter secondary stage

11

Pump System

Corrosion-resistant water circulation pump

12

Control

Central control cabinet, CE-compliant

13

Power Supply

380V / 50Hz / 3-phase (customizable)

14

Compliance

CE / ISO compliant, paint-mist & VOC control

15

Lead Time

30–45 days (subject to configuration)


Why It Matters

For manufacturers, a well-designed paint booth is not just a piece of equipment — it is the foundation of consistent coating quality, regulatory compliance, and worker safety. With this delivery, the client gains a reliable, low-maintenance system ready for years of daily operation.


Stainless Steel Water-Curtain Spray Booth for Industrial Coating

Stainless Steel Water-Curtain Spray Booth for Industrial Coating

Stainless Steel Water-Curtain Spray Booth for Industrial Coating

Stainless Steel Water-Curtain Spray Booth for Industrial Coating

Stainless Steel Water-Curtain Spray Booth for Industrial Coating
