Infrared Drying & Curing Oven for Industrial Coating Line-Dated Sep 15th,2026 from CoatTech Intelligent Equipment

Overview: CoatTech continues to expand its smart finishing solutions with the latest infrared (IR) drying and curing system for industrial painting. The images show a fully built IR curing chamber designed to work with spray booths and automated coating lines. Multiple red infrared heater arrays are mounted on the ceiling and side frames to deliver uniform radiant heat from different angles. The stainless-steel / aluminum structure, observation windows, service doors, cable drag chains, and grated floor reflect an industrial-grade design focused on safety, accessibility, and process stability.

  Product Analysis   Infrared Drying & Curing System — three views of one integrated solution

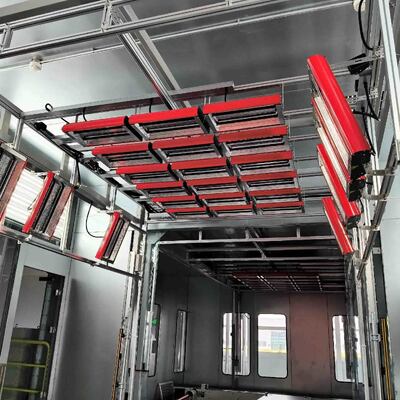

The three images capture the same integrated infrared curing system from different angles. Red short / medium-wave IR tubes are arranged on the ceiling and both sidewalls, allowing heat to reach complex workpiece surfaces evenly and shortening drying cycles compared with conventional hot-air ovens. A stainless-steel interior, aluminum profile framework, grated maintenance floor, observation windows and access doors make the unit durable, serviceable and safe for daily production.

Key Features

Top + side IR heaters — multi-angle radiant heating for complex shapes

Stainless & aluminum build — corrosion-resistant, easy to clean and maintain

Zoned temperature control — independent heating zones with timers and alarms

Faster curing — rapid response, shorter flash-off and curing cycles

Safety & service — observation windows, interlocked access doors, cable drag chains

Ventilation ready — exhaust, filtration and grated floor for air / overspray management

Line integration — compatible with spray booths, conveyors and full coating lines

Specification Table

All parameters can be tailored to the customer’s workpiece size, coating chemistry, throughput and layout requirements.

Typical Applications

Paint flash-off and surface drying · Primer / basecoat / topcoat curing · Waterborne coating drying · Pre-heating before coating · Integrated drying tunnel in automatic painting lines

Why Infrared Curing

Compared with conventional hot-air drying, infrared curing provides faster surface drying, better energy response and shorter cycle times — especially valuable after primer, basecoat, topcoat or water-based paint application. It is the smart way to raise throughput without sacrificing finish quality.
