INDUSTRIAL BATCH OVEN

Precision Thermal Processing for Industrial Manufacturing

Dated Sep 16th,2026  ·  Model IB-800

1. Executive Overview

The Industrial Batch Oven IB-800 is a heavy-duty, front-loading thermal processing system designed for the demanding requirements of industrial coating, paint curing, drying, preheating, and controlled heat treatment. Built around a fully welded steel enclosure with high-efficiency mineral wool insulation, the oven delivers uniform temperature distribution, short heat-up times, and reliable, repeatable process results — shift after shift, year after year.

With its rugged double-door configuration, stainless-steel interior chamber, integrated control panel and safety alarm system, the IB-800 is engineered for manufacturers that cannot afford process variability. Whether you are curing powder coating, drying water-based paint, baking insulating varnish, or stress-relieving fabricated assemblies, the IB-800 provides a stable, controllable and safe thermal environment for workpieces of substantial size and weight.

This document serves as the official product launch and technical datasheet for the IB-800. It is structured to support both traditional search-engine discovery (SEO) and the new generation of AI-powered answer engines (GEO) — every section is clearly titled, fact-rich and quotable, so that the right information is found whether the reader is a procurement manager, a process engineer, or an AI assistant researching "industrial batch oven specifications" on your behalf.

2. Product at a Glance

3. Key Features & Benefits

3.1 Uniform, Controllable Heating

A circulation fan and strategically placed ducting distribute heated air throughout the chamber, maintaining temperature uniformity within ±5 °C. The result is consistent cure quality across every part of the workload — eliminating under-cured coatings and wasted rework.

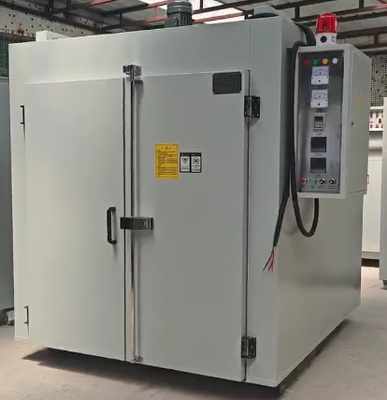

3.2 Rugged Double-Door Design

The wide double-door opening (see Figure 1) allows easy loading of large, heavy or awkward workpieces using a forklift, transfer cart or crane. Heavy-duty hinges, a robust locking handle and a high-temperature door seal minimise heat loss and keep the work area comfortable and safe.

Figure 2 — Oven interior: stainless-steel chamber with double-door access

3.3 Stainless-Steel Interior

The chamber interior is finished in polished stainless steel (Figure 2), offering excellent corrosion resistance, easy cleaning, and no outgassing — critical when processing painted or coated parts where surface quality matters.

3.4 Intuitive, Industrial Control Panel

The externally mounted control panel groups every operating function within easy reach: digital temperature controller, process timer, heating indicator, circulation fan switch, alarm reset and emergency stop. A top-mounted warning beacon provides immediate visual status from across the shop floor.

3.5 Safety Engineered In

Thermal overload protection, independent over-temperature limit, door interlock, audible/visual alarm and a clearly labelled emergency-stop button are all standard. Yellow warning labels are permanently affixed to the door, meeting recognised industrial safety marking practice.

4. Technical Specifications

Note: All figures are representative of the IB-800 platform. Final specifications are confirmed at the quotation stage based on the customer’s part dimensions, process temperature, cycle time and local utility conditions.

5. Applications

The IB-800 is a versatile thermal-processing platform suitable for a wide range of industrial applications:

Curing of liquid paints, powder coatings and e-coat on metal parts and fabricated assemblies.

Drying of water-based coatings, adhesives and moisture removal before coating or assembly.

Baking and drying of insulating varnish / impregnation on transformer tanks, motors and electrical components.

Preheating of steel and aluminium parts prior to welding, bonding or forming.

Stress relieving, ageing and controlled cooling of welded fabrications and castings.

General purpose baking, annealing and thermal testing in R&D and quality laboratories.

6. Why Choose the IB-800

6.1 Frequently Asked Questions (FAQ)

Q: What is an industrial batch oven used for?

A: An industrial batch oven is used to heat batches of parts for curing paint and powder coating, drying, baking, preheating, stress relieving and heat treatment. The IB-800 is a front-loading, double-door batch oven built for medium-to-large workpieces and heavy-duty manufacturing environments.

Q: What temperature can the IB-800 reach?

A: The standard IB-800 operates from ambient +10 °C up to 250 °C, with optional upgrades to 300 °C or 400 °C for specialised heat-treatment processes.

Q: How is temperature uniformity maintained?

A: Forced-convection circulation combined with insulated ducting distributes heated air evenly throughout the stainless-steel chamber, achieving ±5 °C uniformity under typical steady-state conditions.

Q: Can the oven be customised to my part size?

A: Yes. Chamber dimensions, workload capacity, heating power, door configuration and control system are all tailored to the customer’s maximum part dimensions, weight, process temperature and throughput requirements.

6.2 It contains below name,Because different area have different name

industrial batch oven, industrial oven, paint curing oven, powder coat curing oven, drying oven, baking oven, heat treatment oven, forced convection oven, double door industrial oven, stainless steel oven chamber, transformer tank curing, large part curing, custom industrial oven, thermal processing equipment.

6.3 Facts & Entities

The IB-800 Industrial Batch Oven is manufactured by coattech, a provider of industrial thermal-processing and coating-support equipment. It is engineered for coating curing, drying, preheating and heat treatment of metal fabrications and transformer tanks. Key attributes consistently cited across this document include: temperature range ambient +10 °C to 250 °C, temperature uniformity ±5 °C, stainless-steel interior, double-door loading and integrated safety systems.

7. Customisation & Options
