Water Curtain Spray Booth & Flash-off Drying System for Solid Wood Furniture Dated Sep 23rd,2026

Category: Products / Spray Booth + Paint Mixing & Drying Zone   |   Mahogany, solid wood and traditional joinery furniture

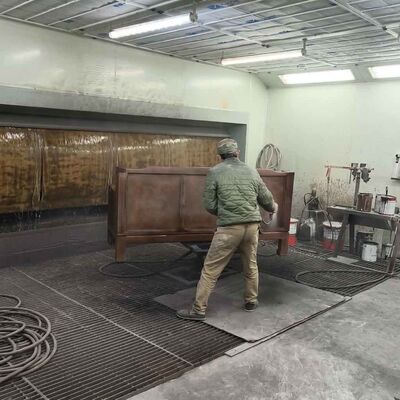

 Editorial summary  This release covers a complete water-curtain spray and flash-off drying system supplied by CoatTech for mid- to high-end solid wood and mahogany furniture. An operator sprays large pieces such as a luohan bed with a high-atomisation pneumatic gun, while the wall behind him forms a continuous water curtain that captures overspray. Finished parts then move to a separate flash-off and drying area with multi-tier drying racks. The layout keeps spraying and drying in distinct, controlled zones.

  01    What the pictures and video show

Water-curtain spray wall — the wall behind the operator is a continuous flowing water film. Overspray is drawn into the curtain, caught by the water and settled into the bottom tank instead of staying airborne

Grated floor with downdraft exhaust — heavy-duty metal grating with extraction below forms a stable airflow pattern that protects the operator and stops paint mist settling back on the furniture

Manual pneumatic spraying with rotary platform — the operator uses a high-atomisation pneumatic spray gun, with the workpiece standing on a rotatable floor platform so all four sides and recessed grooves can be reached without walking around the piece

Airtight isolation door — the workshop is separated from the outside by a sealed double door, physically isolating the spraying area from the rest of the factory

Flash-off and drying zone — after spraying, parts move to a dedicated area with multi-tier drying racks and a large open platform for film levelling and natural drying, protected from dust

Orderly part staging — chairs, benches and bed frames are arranged on racks and floor space so workpieces flow from spraying to drying without congestion

  02    Key features

Efficient overspray capture — the water curtain traps paint particles in a water film and settles them in the tank, greatly reducing airborne dust and exhaust load

Stable airflow field — supply from above / front, extraction from below keeps mist away from the operator's breathing zone and off the finished surface

Rotary work platform — large furniture can be turned in place, giving even coverage on all sides, edges and carved recesses

Flexible manual operation — an experienced operator with a pneumatic gun suits complex carved and mortise-and-tenon furniture better than a fixed automatic line

Sealed, isolated cabin — airtight doors and modular panels separate spraying from the rest of the workshop

Dedicated flash-off area — separate levelling and drying zone with multi-tier racks improves film smoothness and surface cleanliness

Serviceable water system — circulation pump, tank and filtration stage are arranged for easy cleaning and sludge removal

  03    Technical data

* Booth dimensions, water circulation capacity, airflow volume and drying-rack layout are confirmed during layout engineering to match furniture size, coating type and daily output.

  04    Why it matters in furniture finishing

Solid wood and mahogany furniture often has carved details, mouldings and mortise-and-tenon joints that are difficult for a fixed automatic line to reach. A water-curtain booth keeps the operator flexible while removing overspray at the source, and a separate flash-off zone lets the film level and dry in clean air instead of in the spray mist. Together they protect both the finish quality and the operator.

  05    Customer benefits

Cleaner workshop and lower emissions — the water curtain captures overspray efficiently, reducing dust and exhaust particles.

Better surface quality — separate spraying and flash-off zones prevent dust settling on the wet film.

High flexibility — manual spraying on a rotary platform suits carved, shaped and one-off pieces.

Safer working conditions — controlled airflow keeps paint mist away from the operator's breathing zone.

Clearer workflow — spraying, levelling and drying are separated, so parts move through without congestion.

Frequently Asked Questions

Q: What is a water curtain spray booth?  A: A spray booth where the rear wall is covered by a continuous flowing water film. Overspray is drawn into the curtain, captured by the water and settled into a tank, instead of remaining airborne.

Q: Why is it suitable for solid wood and mahogany furniture?  A: The system keeps manual spraying flexible while removing overspray at source. That suits carved, moulded and mortise-and-tenon pieces that are difficult for a fixed automatic line to reach.

Q: What is the rotary platform for?  A: Large furniture stands on a rotatable platform, so the operator can coat all sides, edges and recesses evenly without walking around the workpiece.

Q: Why separate the flash-off and drying area?  A: After spraying the film needs clean, still air to level and dry. A dedicated zone with drying racks keeps dust off the wet surface and improves gloss and smoothness.

Q: Which coatings can be applied?  A: Clear lacquer, primer, topcoat, and open-pore or closed-pore finishes, depending on the gun, pump and extraction package configured.

Q: Does the system reduce workshop pollution?  A: Yes. The water curtain captures overspray efficiently and the downdraft exhaust removes the remainder, greatly reducing airborne dust and exhaust particles.

Contact Mr. Tim for a quotation: +86 189 8118 9424  ·  coattech@spraying-booth.com  ·  www.spraying-booth.com

Send us your furniture sizes, coating type and daily output — we will design the right water-curtain spray booth and drying area for your workshop.
