Transformer Tank Spray & Baking Booth | CoatTech

MOQ:	1
Price:	USD8000-USD15000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

Tank Spray & Baking Booth Series

NAME:

Transformer Tank Spray & Baking Booth

Power Supply::

380V/50HZ/3Ph Or Other Option

Using Energy::

Diesel,gas,steam,electric Or Other Option

Main Door::

Fold Style Or Electric Rolling Style

Motor::

Chinese Brand Or Import Brand

Control Sytem::

Switch Style Or PLC Touch Screen Control

Wall::

Metal Sheld,EPS,Rock Wool Of PU For Option

Color::

White Or Other Option

Application::

Bus/truck Or Other Metallic Products

Energy Sources::

Water, Electricity,gas

Coating:

10-50um

Dimention::

As Require

Noise Level:

≤80dB

Size:

Material:

Steel

Usage:

Automotive Painting, Furniture Painting, Industrial Painting

Color:

White/Custmomized

Filter System:

Ceiling Filter, Fiberglass Filter, Activated Carbon Filter

Door Type:

Roll-up Door/Custmomized

Product Type:

Spray Booth

Lighting:

Heating System:

Riello Brand Burner

Air Flow:

25000m³/h/Customized

Control System:

PLC Control Panel

Power:

18.5KW/Custmomized

Voltage:

3*380V 1*220V

Product Description

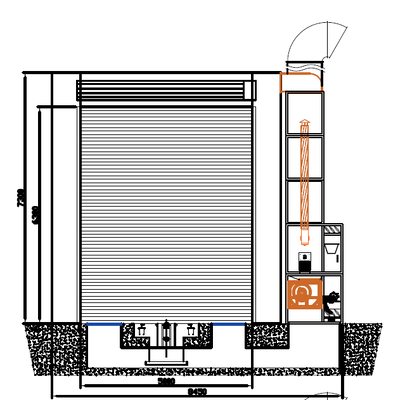

Transformer Tank Spray & Baking Booth

Coat oversized transformer tanks — inside and out — in one enclosed, explosion-proof booth. Configurable to workpieces up to 12,000 mm and 50 tonnes, with floor-mounted chain transfer that removes the need for overhead cranes.

1.Typical Workpieces

Workpiece	Typical size	Typical weight	Coating requirement
Power transformer tank	6,000 – 12,000 mm L	10 – 50 T	External weather-proof + internal oil-resistant coating
Distribution transformer tank	2,000 – 6,000 mm L	2 – 10 T	Single-coat external, optional internal
Transformer radiator / cooler	1,500 – 4,000 mm L	0.5 – 3 T	Dip or spray, external only
Large steel fabrication	up to 15,000 mm L	up to 60 T	Primer + topcoat, spray & bake
Pressure vessel	3,000 – 10,000 mm L	5 – 30 T	External anti-corrosion coating

2. Why an Enclosed Booth for Oversized Tanks

· Overspray containment — a 35-tonne tank generates a very large paint cloud; an enclosed envelope with four-stage filtration keeps it out of the workshop and off neighbouring equipment.

· Explosion protection — oil-based coatings demand explosion-proof motors, lighting, control cabinets and wiring. Open spraying cannot meet this.

· Spray and bake in one place — once a 35 T workpiece is positioned, you do not want to move it again. Heating in the same envelope removes an entire handling step.

· Consistent finish on long surfaces — a stable 0.25 – 0.35 m/s down-draft across the full envelope holds gun distance and film build uniform from end to end.

· Operator access to internal surfaces — full-height door access plus side lighting lets operators work inside the tank safely.

3. Configurable Parameters

Parameter	Configurable range	Notes
Booth internal length	12,000 – 20,000 mm	Sized to workpiece + end clearance
Booth internal width	6,000 – 8,000 mm	Allows side access and operator movement
Booth internal height	6,000 – 8,000 mm	Accommodates full tank height plus lift clearance
Workpiece length	up to 12,000 mm	Longer on request
Workpiece weight	up to 50 T	Transfer system rated above workpiece weight
Air velocity	0.25 – 0.35 m/s (no load)	Down-draft across full cross-section
Air volume	sized to envelope	Supply and exhaust balanced to the booth cross-section
Illumination	800 – 1,200 LUX	IP65 explosion-proof LED fixtures
Heating — diesel	200 – 400 kW	Riello burner, 304 stainless heat exchanger
Heating — electric	150 – 350 kW	304 stainless elements, staged control
Baking cycle	10 – 25 min to 60 °C	Depending on mass and heating option
Material handling	floor rail / roller-chain cart, 20 – 60 T	Alternative: overhead crane or turntable
Filtration	4 stages — G3 / F5 / paint arrestor / activated carbon	Upgradeable to higher efficiency
Power supply	380 V, 50 Hz or 60 Hz	Other voltages on request
Explosion protection	Ex-proof motors, lighting, cabinet, conduit & junction boxes	Rated for oil-based coatings

4. Standard Scope of Supply

Module	Included
Booth envelope	Rock wool sandwich panels (wall 70 mm / roof 50 mm), colour-coated steel both faces
Plenum chamber	Square-tube frame, filter trough and support mesh
Doors	Electric rolling shutter (main) + personnel doors with pressure-relief lock and viewing window
Floor pit	Grated pit with 30 × 4 mm flat steel grating
Air supply unit	Double-inlet centrifugal fans, belt drive, modulating damper
Exhaust unit	Double-inlet centrifugal fan, belt drive, regulating damper
Ducting	Straight sections plus 90° and 45° elbows
Lighting	T8 LED tubes in IP65 explosion-proof boxes, ceiling and side rows
Filtration	4 stages — pre-filter G3, fine filter F5, glass fibre paint arrestor, activated carbon
Heating (optional)	Diesel burner with heat exchanger, or electric element bank
Spray equipment	60:1 airless pump, stainless paint tank, high-pressure hoses, guns
Material handling	Roller-chain transfer cart with platform, rail, VFD drive and remote control
Electrical control	Explosion-proof cabinet — spray mode, baking mode, timing, lighting, fault alarm, E-stop
Documentation	Maintenance manual, electrical diagram, certificate of conformity, packing list

5. Options & Upgrades

· Heating source — diesel burner or electric element bank

· Transfer system — roller-chain cart, floor rail trolley, overhead crane interface or turntable

· Door configuration — rolling shutter, sliding or retractable front

· Control upgrade — PLC + HMI with recipe storage and data logging

· Filtration upgrade — higher-efficiency final stage, or heat recovery on exhaust

· Voltage / frequency — 380 V 50 Hz, 380 V 60 Hz, or other regional standards

6. Reference Configuration

A recent delivery in this product family was built on a 15,000 × 6,500 × 6,500 mm internal envelope for 9.8 m transformer tanks, with a 40 T roller-chain transfer cart, a 60:1 airless spray package and four-stage filtration. Full internal and external coating was achieved in a single booth with diesel heating rated at 300 kW.

7. FAQ

Question	Answer
Can the booth coat both internal and external surfaces?	Yes. Full-height door access and side lighting allow operators to work inside the tank, while external surfaces are coated in the same cycle.
What is the maximum workpiece weight?	Standard designs cover up to 50 T, with the transfer system rated above the workpiece. Heavier duties can be engineered on request.
Do you build for 60 Hz / 380 V?	Yes. Booths are built to regional power standards including 380 V 60 Hz; confirm your site supply at enquiry stage.
What explosion protection is included?	Explosion-proof motors, lighting enclosures, control cabinet, flexible conduit and junction boxes, rated for oil-based coatings.
How is a 35-tonne tank moved?	A floor-mounted roller-chain transfer cart carries the workpiece on a platform. This avoids the cost and headroom of an overhead crane.
Can heating be added later?	Yes. Diesel or electric heating can be specified at order stage or retrofitted, subject to power and space provision.
Can the booth be installed outdoors?	Indoor installation is standard. Outdoor layouts are possible with weatherproof cladding and drainage — advise at enquiry.
