New outdoor truck bus large bus large spray paint room oven with CE certification

New outdoor truck bus large bus large spray paint room oven with CE certification
New outdoor truck bus large bus large spray paint room oven with CE certification New outdoor truck bus large bus large spray paint room oven with CE certification New outdoor truck bus large bus large spray paint room oven with CE certification New outdoor truck bus large bus large spray paint room oven with CE certification
Basic Information
Place of Origin: CHINA
Brand Name: Coarrech
Certification: ISO9001、CE
Model Number: CT-PQ-I-II-III
Minimum Order Quantity: 1pc
Price: 1000-100000 USD
Packaging Details: With regular Film and Carton
Delivery Time: 30 DAYS After Deposit
Payment Terms: T/T
Supply Ability: 20SET/MONTH
Contact Now
Feature: Auto Parts And Furniture Wallboard: 50mm EPS Panel, 0.6 Steel
FeatuDirect Drivere: Rust / Corrosion Inhibitor Power Supply: 380V/220V/50Hz/60HZ
Exhaust System: Centrifugal Fans & Turbo Fans Heating System: Oil-Fired, Gas-Fired & Electric
Intended Use: Automotive And Compact Industrial Components Control System: Standard Electrical Relays & Push-Button Interfaces

New outdoor truck bus large bus large spray paint room oven with CE certification


Product Introduction



This ‌large-scale spray booth system‌ delivers exceptional versatility with multi-fuel compatibility (diesel, gas, steam, electricity) and dual-voltage power options (380V/50Hz/3Ph or custom), enabling tailored site-specific operation. Advanced ‌PLC touchscreen controls‌ provide precise automation for temperature, airflow, and curing cycles, while the ‌robust steel construction‌ with premium insulation (EPS, rock wool, PU, metal) ensures superior thermal efficiency and durability. Customizable layouts with ‌foldable/rolling doors‌ accommodate oversized components, paired with a ‌high-capacity 25,000 m³/h airflow system‌ and ‌multi-stage filtration (ceiling filters, fiberglass, activated carbon)‌ for uniform coating results, effective VOC containment, and full compliance with environmental regulations.


Specification




Attribute Description Attribute Description
Product Name Large Industrial Spray Coating Booth Power Configuration 380V / 50Hz / 3 Phase (Optional Alternatives)
Fuel Compatibility Supports Diesel, Gas, Steam, or Electric Heating Door Options Folding or Automated Rolling Access Door
Drive System Local or Imported Motor Choices Control Interface Manual Switch Panel or PLC Touch Controller
Panel Insulation EPS / PU Foam / Rock Wool / Metal Panel Options Finish Color White or Custom-Defined Colors
Target Applications Suitable for Buses, Trucks, or Large Metal Parts Energy Input Types Gas, Electricity, or Water Heating Supported


Product Description


The ‌Optimized Energy & Airflow System‌ delivers exceptional efficiency with synergistic rapid heating and air circulation, reducing energy consumption while optional waste heat recovery further enhances savings. Powered by a ‌19.5 kW‌ industrial-grade motor (380V/3Ph/50Hz), it ensures global compatibility and significant operational cost reduction. The ‌robust physical construction‌ features a large-scale ‌6,850×3,850×2,600 mm‌ interior workspace, built with durable galvanized steel and fire-resistant insulation for a hermetically sealed environment. This airtight chamber maintains thermal insulation during spraying/baking, while the dust-free design ensures contamination-free finishes for superior coating quality.

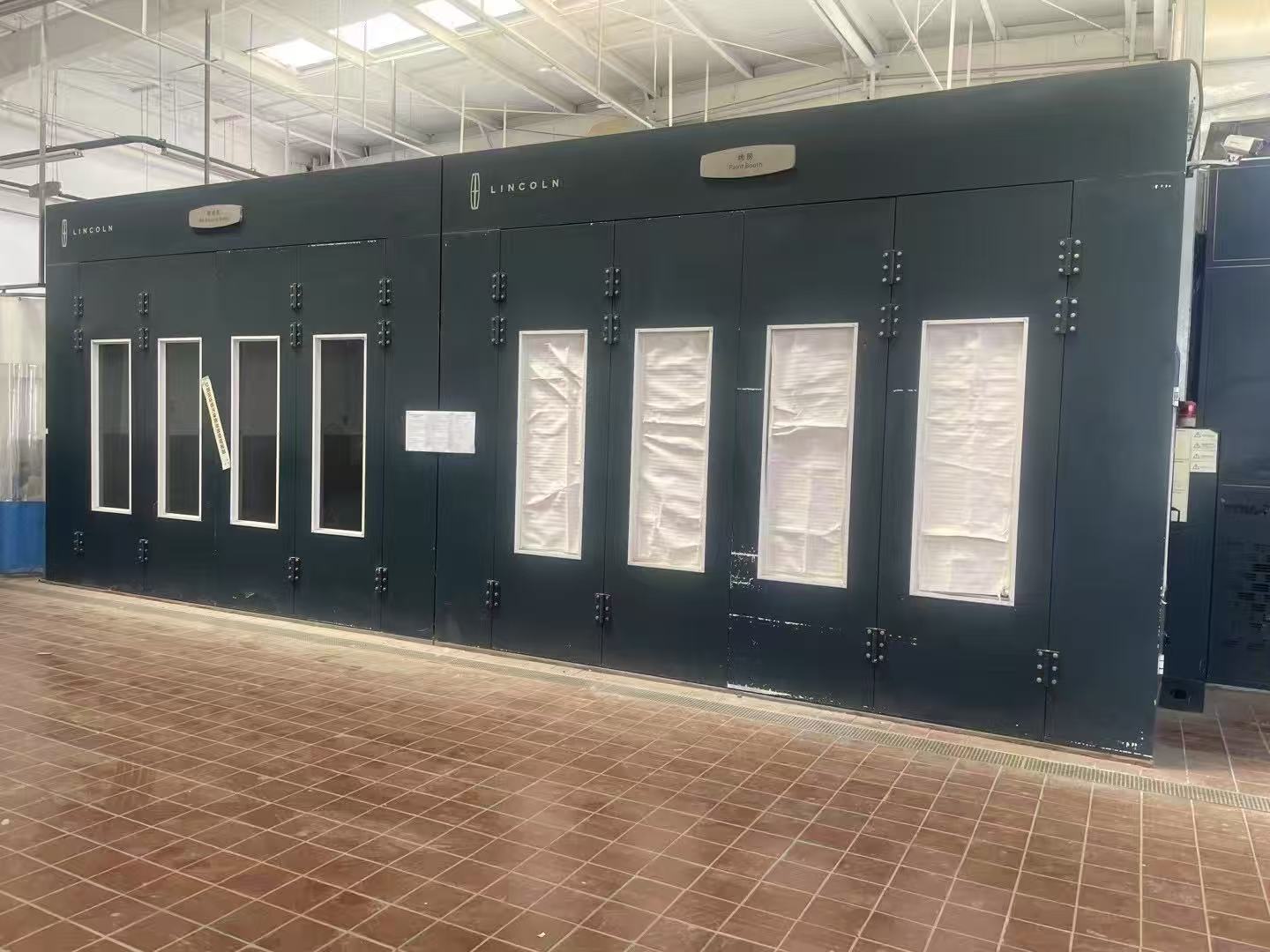

New outdoor truck bus large bus large spray paint room oven with CE certification 0

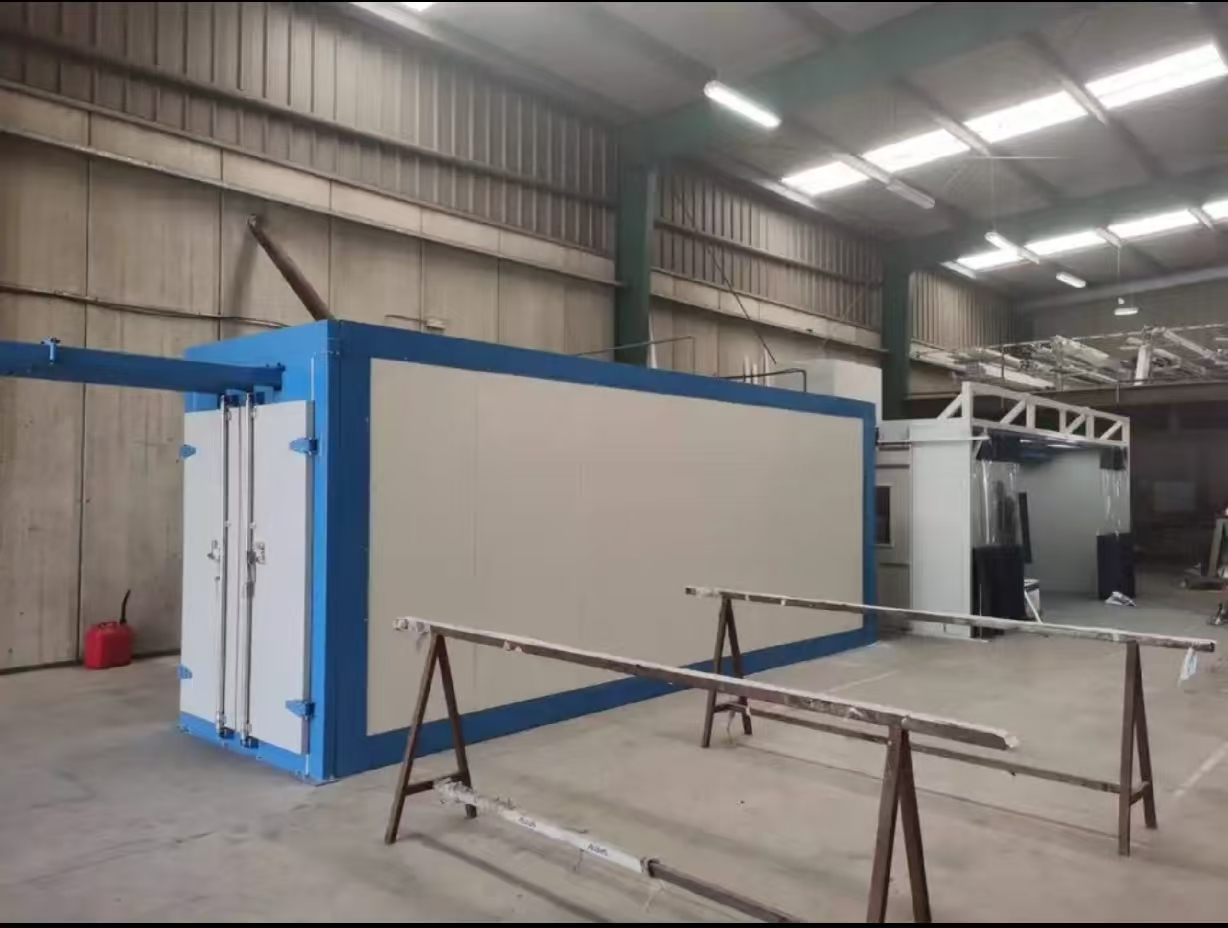

New outdoor truck bus large bus large spray paint room oven with CE certification 1

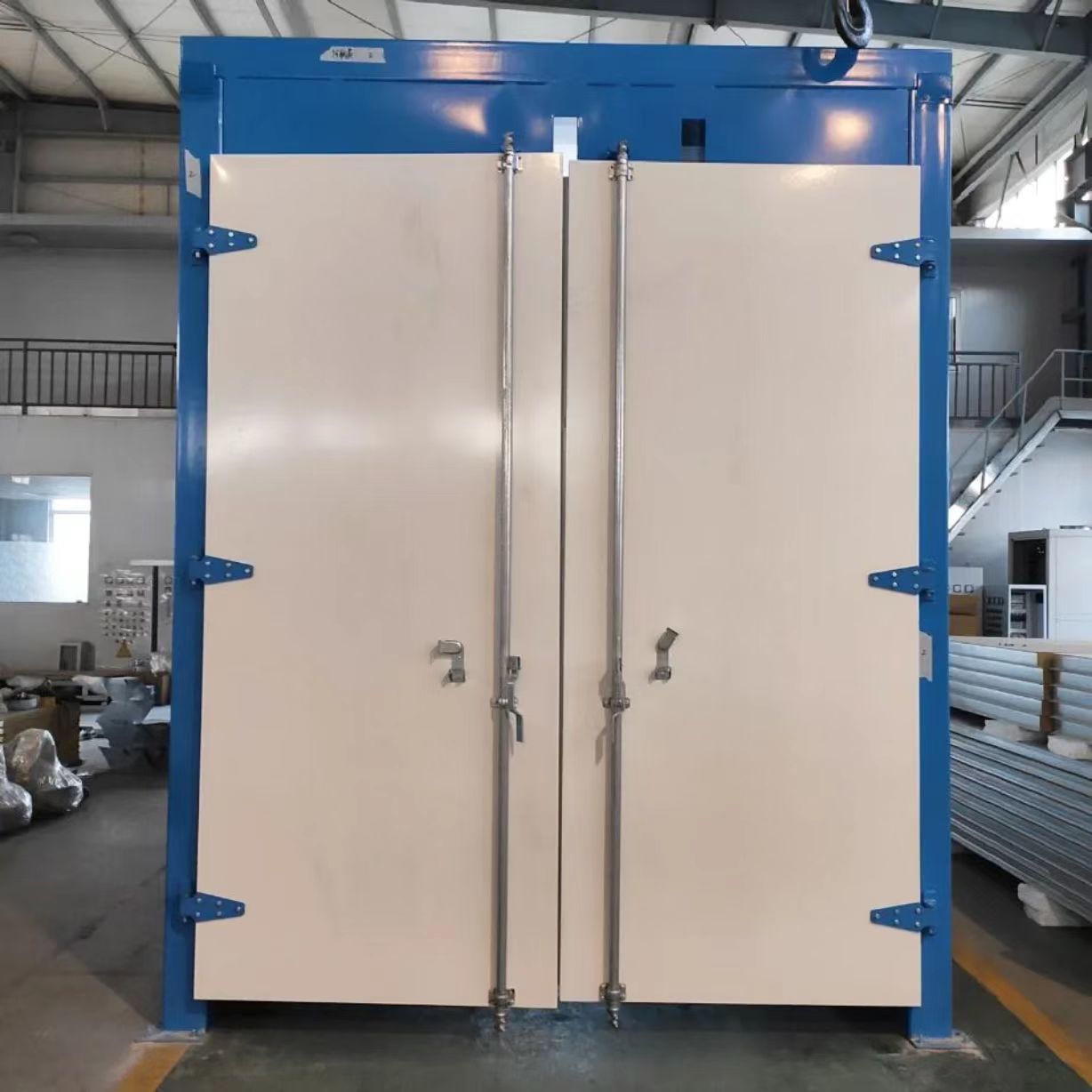

New outdoor truck bus large bus large spray paint room oven with CE certification 2

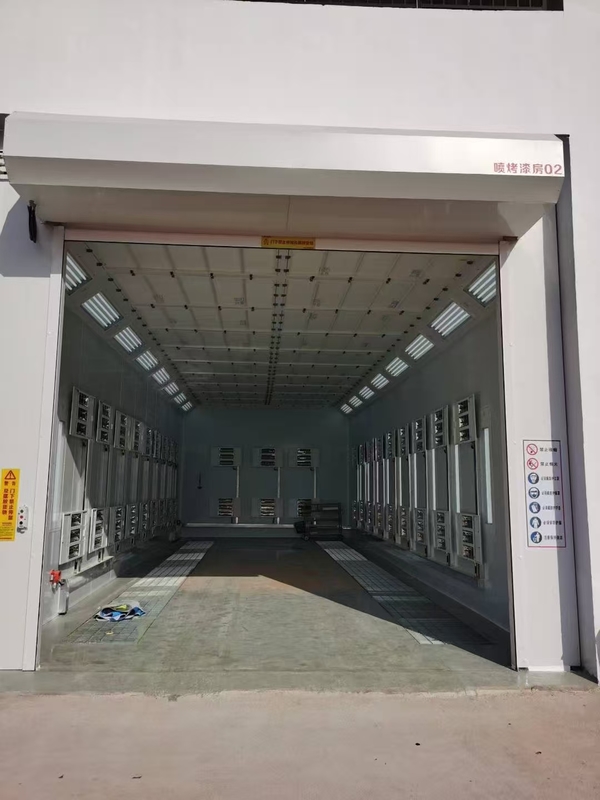

New outdoor truck bus large bus large spray paint room oven with CE certification 3
