NAME: | Preparation Station | Using Energy:: | Diesel,gas,steam,electric Or Other Option |
---|---|---|---|
Main Door:: | Fold Style Or Electric Rolling Style | Motor:: | Chinese Brand Or Import Brand |
Control Sytem:: | Switch Style Or PLC Touch Screen Control | Wall:: | Metal Sheld,EPS,Rock Wool Of PU For Option |
Color:: | White Or Other Option | Application:: | Bus/truck Or Other Metallic Products |
Energy Sources:: | Water, Electricity,gas | Coating: | 10-50um |
Dimention:: | As Require | ||
Highlight: | customizable portable paint prep station,prep station body shop white,tailored layouts prep station body shop |

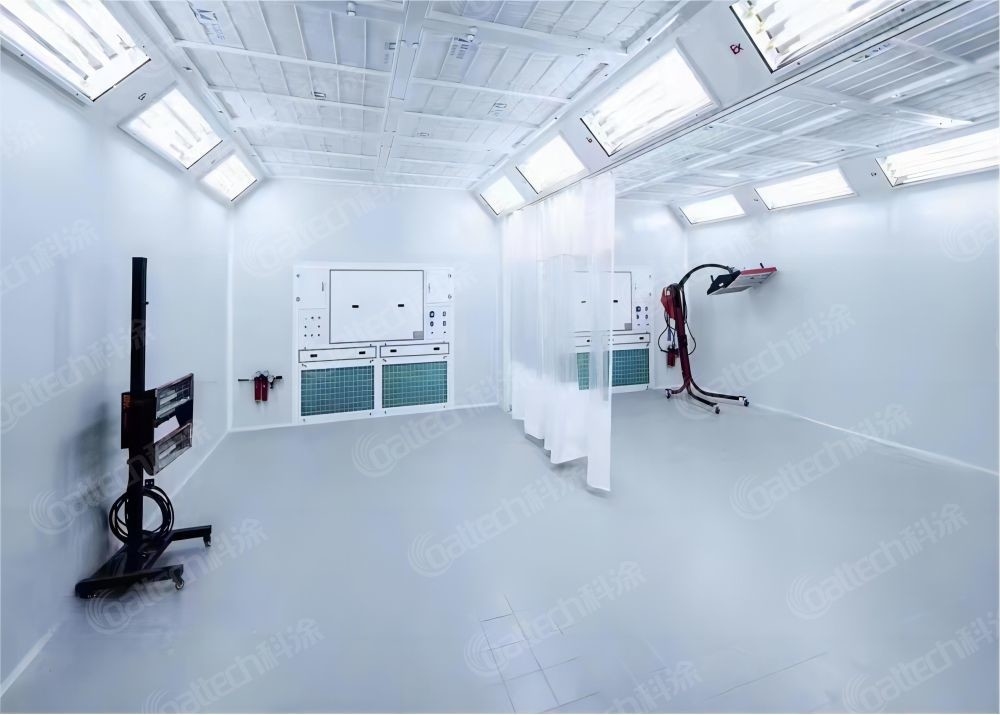

Customizable Pre-Station Room: Tailored Layouts for Various Manufacturing Needs
Enhance your vehicle painting workflow with our efficient Pre-Station, designed to streamline the preparation process.
Featuring ergonomic design, dust extraction, and customizable setups, it ensures thorough cleaning, sanding,
and priming. Perfect for temporary factory warehouses, food stalls, and car washes, this Pre-Station offers windproof,
rainproof protection and easy mobility, making it an essential addition to any auto body shop.
Inside dimension |
6900 × 3900 × 2700 mm (L × W × H) |
outer dimension | 8250 × 4000 × 34 00 mm (L × W × H) |
Basement | 1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted according to needs) (Gutter exhaust, rear wall optional exhaust) |
Room structure |

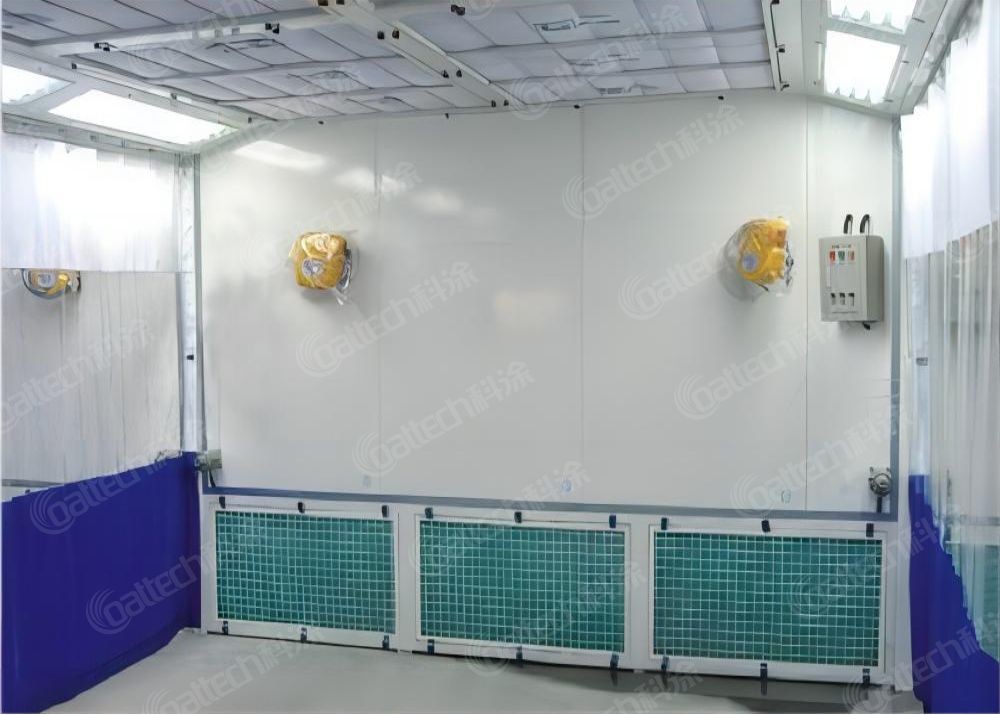

The front, left and right sides are PVC curtains, and the back side is EPS wall panel |
wall panel | EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
roof | 0.6mm galvanized sheet bending |
illumination |
Top lighting: 8 groups × 4 pcs = 32 pcs 18W lamps Illumination ≥800Lux |
Air Unit installation |
Rear upper exhaust, square tube welding + aluminum tee frame, spray white paint, high-strength mechanism 20mm thick rock wool board mask |
Exhaust air Unit |
1 double-inlet centrifugal fan, pulley drive, single motor power: 4KW; total flow: 15000m3 /h, no-load wind speed: 0.2m/s; exhaust electric adjustment damper . |
filtering system |
1 Sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5, 2 Glass fiber paint-resistant cotton blanket filtration: EN 779 Level: G3; 3 Dust filter cotton : adsorbs exhaust gas dust particles |
Electronic control system | Polishing, lighting switch, timer, fault indicator light, power switch, emergency stop switch |
Pipeline system
|
The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow; |
total power | 5KW |
Other configurations |
Tool cabinets, electrical cabinets |
