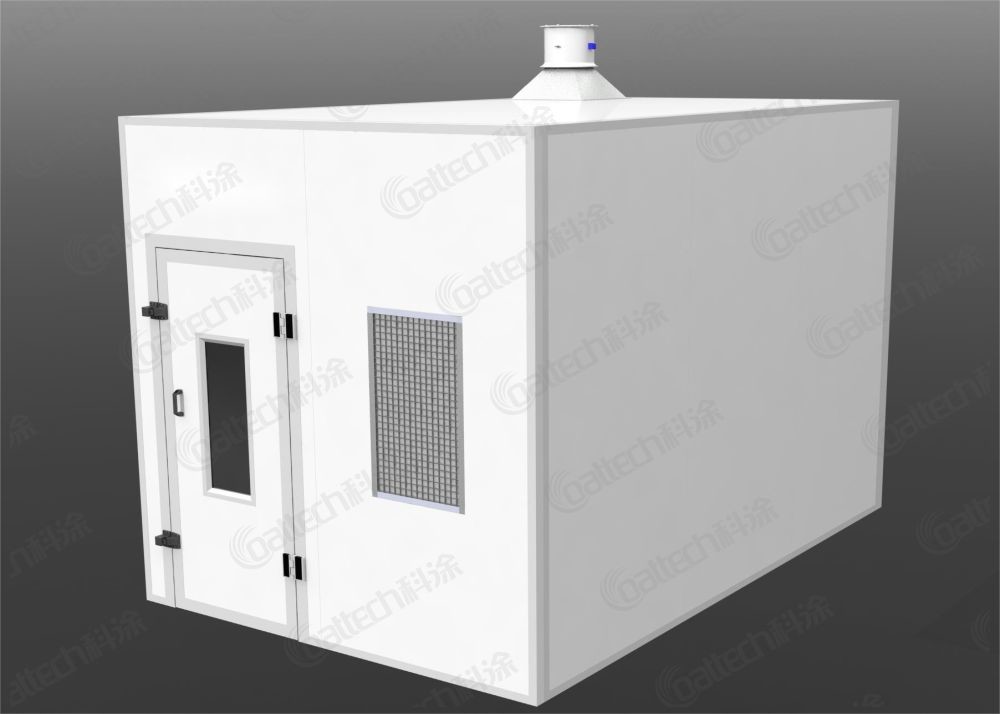

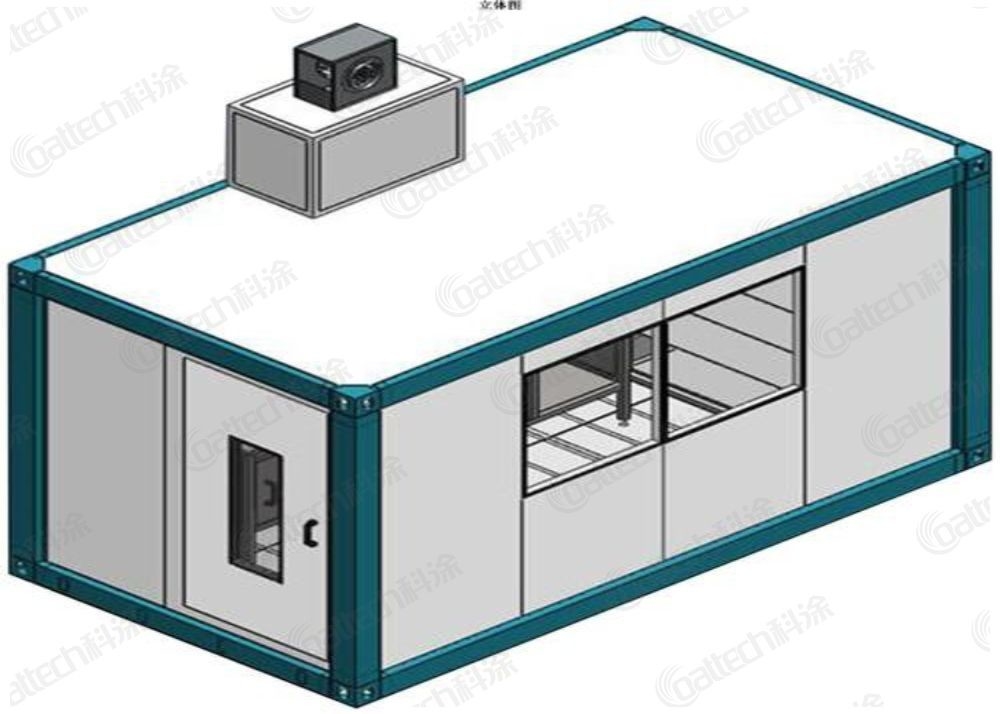

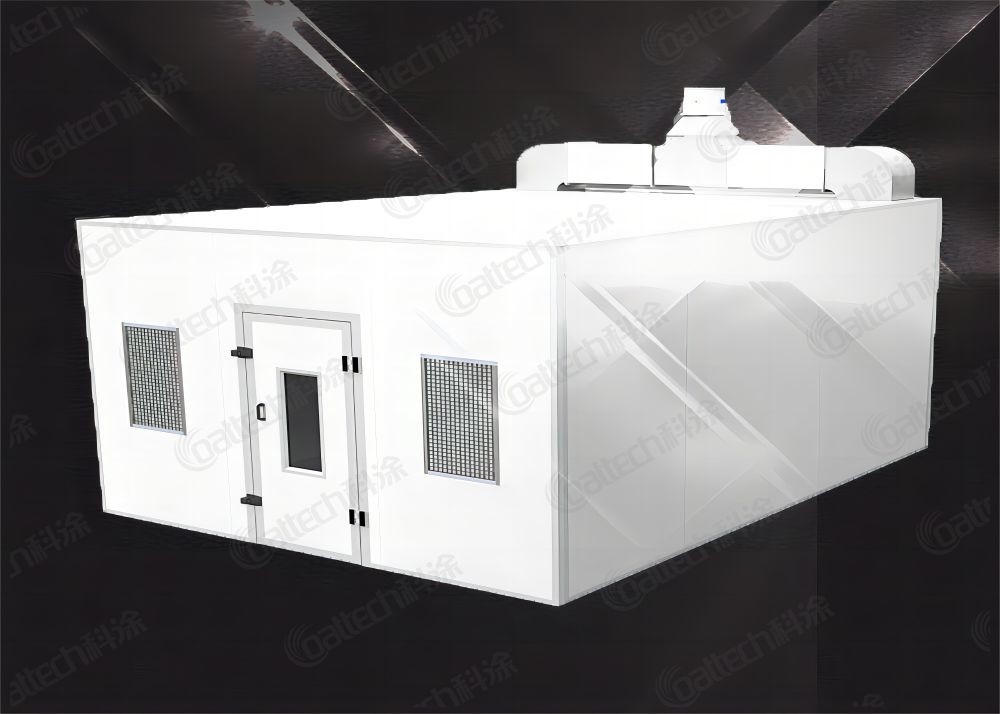

Customizable Paint Mixing Room for Enhanced Workflow Efficiency
Achieve optimal results with our Efficient Paint Mixing Room, designed to provide a controlled environment
for precise paint mixing. Featuring excellent ventilation, dust extraction, and ergonomic workspaces,
it ensures a clean and safe area for paint preparation. Perfect for auto body shops, this room offers customizable options,
enhancing workflow efficiency and ensuring consistent, high-quality paint mixtures.
|
inside
dimension
|
3000 × 2000 × 2500 mm (L × W × H) |
| outer dimension |
3100 × 2100 × 2550mm (L×W×H) |
| working door |
1 set, working door size: 800×2000mm (W×H), equipped with pressure lock and glass observation window |
| wall panel |
EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
| roof |
PS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
| illumination |
Top lighting: 2 sets × 2 = 4 18W lamps , explosion-proof and anti-corrosion light box, illumination ≥300Lux |
|
Exhaust Air
Unit
|
1 explosion-proof axial flow fan, single motor power: 0.37KW; total flow: 2200m3 /h |
| filtering system |
1 Air supply primary filter cotton : EN 779 level: G3 |
|
Electronic
control system
|
Fan switch, lighting switch, fault indicator light, power switch, emergency stop switch |
|
Pipeline
system
|
The air supply and exhaust are each equipped with 3 sections of 400 x 400 x 1000mm straight air ducts, 1 section of 4 00 x 4 00mm 90° elbow, and 1 section of 4 00 x 4 00mm 45° elbow; |
| total power |
1 KW |
| Other Configur |
Spray cabinet, workbench, cleaning cabinet, paint mixing machine |
A paint mixing room is an essential facility in various industries, particularly in automotive, manufacturing, and art sectors,
where precision in color and consistency of paint mixtures are crucial. This specialized environment is designed to provide
a controlled space for the accurate blending of paint, ensuring that the end product meets specific standards and requirements.
The room is equipped with advanced tools and equipment such as mixing scales, shakers, and spectrophotometers, which help
in achieving the desired color accuracy and uniformity.
The paint mixing room is also designed to meet stringent safety and environmental regulations. It typically features ventilation systems
to control fumes and dust, preventing the inhalation of hazardous chemicals by operators. Additionally, it includes proper storage
for chemicals and paints, as well as spill containment measures to protect the workers and the environment.
Peace Environmental Protection always adheres to the core principle of "quality first, honest service" and provides
excellent solutions for customers in the field of environmental protection equipment. The factory is located in
Guangzhou City, Guangdong Province.
The company's main products include environmental protection equipment such as spray booth,coating line,painting line
and waste gas and wastewater treatment,if you have any inquiry,please leave the inquiry here directly,will be respond to you within 12 hours
We will make the exact Design Drawing,Design Case in words,and Quotation in detail,just waiting for you leave the message here.
