Name: High-Quality Pre-Station for Professional Automotive Paint Jobs
Brand: CoatTech Intelligent Equipment(Guangzhou) CO.,LTD
SKU: PT-2
Price: 5,000.00 USD
Availability: InStock

High-Quality Pre-Station for Professional Automotive Paint Jobs

Basic Information

Place of Origin:	China
Brand Name:	CoatTech
Certification:	CE
Model Number:	PT-2

Minimum Order Quantity:	1
Price:	USD5000-USD5000/SET
Packaging Details:	With regular Film and Carton
Delivery Time:	15 DAYS After Deposit
Payment Terms:	T/T
Supply Ability:	30SET/MONTH

Contact Now

NAME:

PT-2

Using Energy::

Diesel

Main Door::

PVC Curtain

Control Sytem::

Switch Style

Color::

White Or Other Option

Application::

Bus/truck Or Other Metallic Products

Energy Sources::

Water, Electricity,gas

Coating:

10-50um

Dimention::

As Require

Highlight:

bus pre station

truck pre station

bus paint prep station

High-Quality Pre-Station for Professional Automotive Paint Jobs

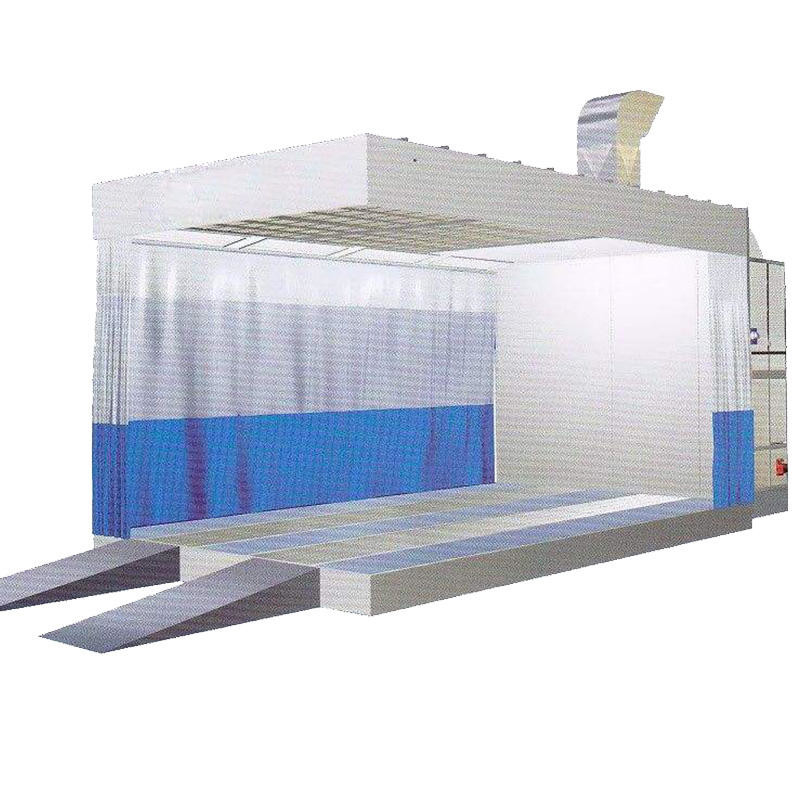

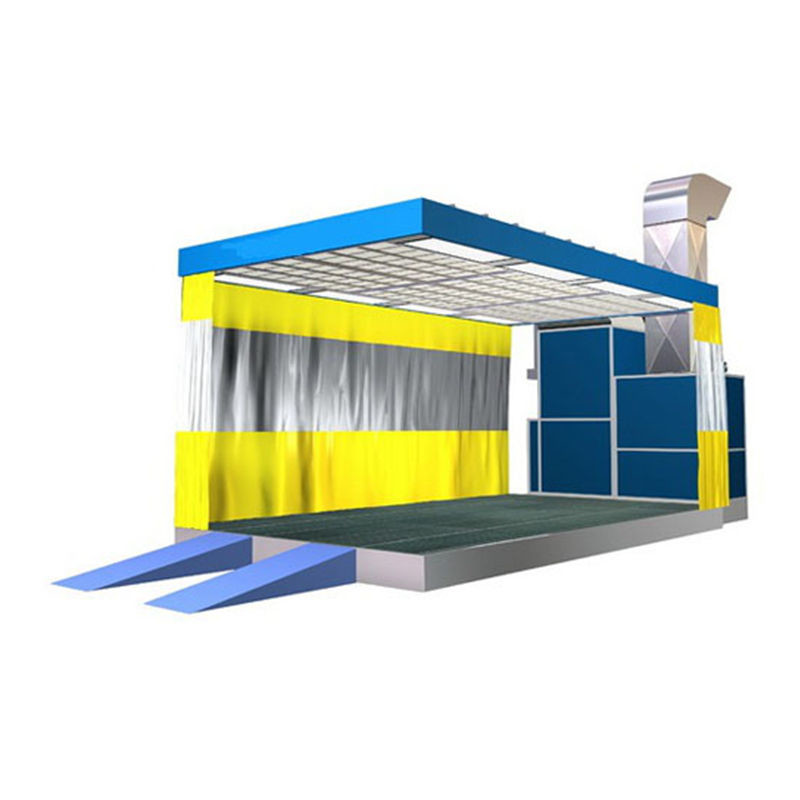

This high-quality Pre-Station is engineered for professional automotive paint preparation.

Featuring a controlled environment with optimized lighting and ventilation,

it ensures precise pre-paint workflows. Built with high-strength galvanized steel and PVC

waterproof fabric, its customizable design offers a durable, up-to-10-year solution that

enhances efficiency in any shop.

Inside dimension	6900 × 3900 × 2700 mm (L × W × H)
outer dimension	8250 × 4000 × 34 00 mm (L × W × H)
Basement	1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted according to needs) (Gutter exhaust, rear wall optional exhaust)

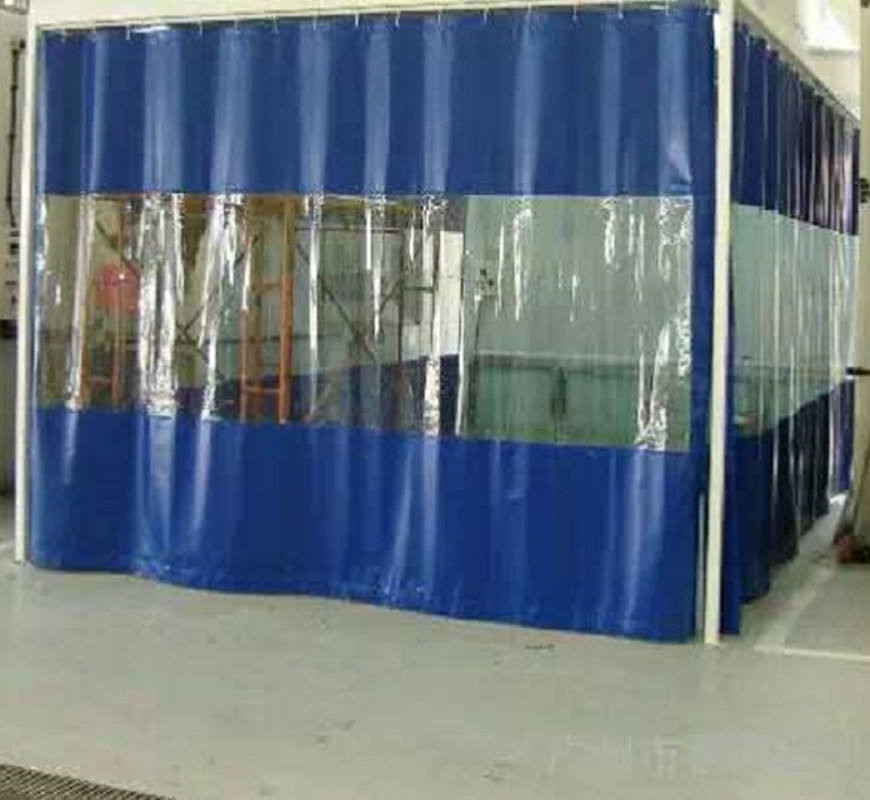

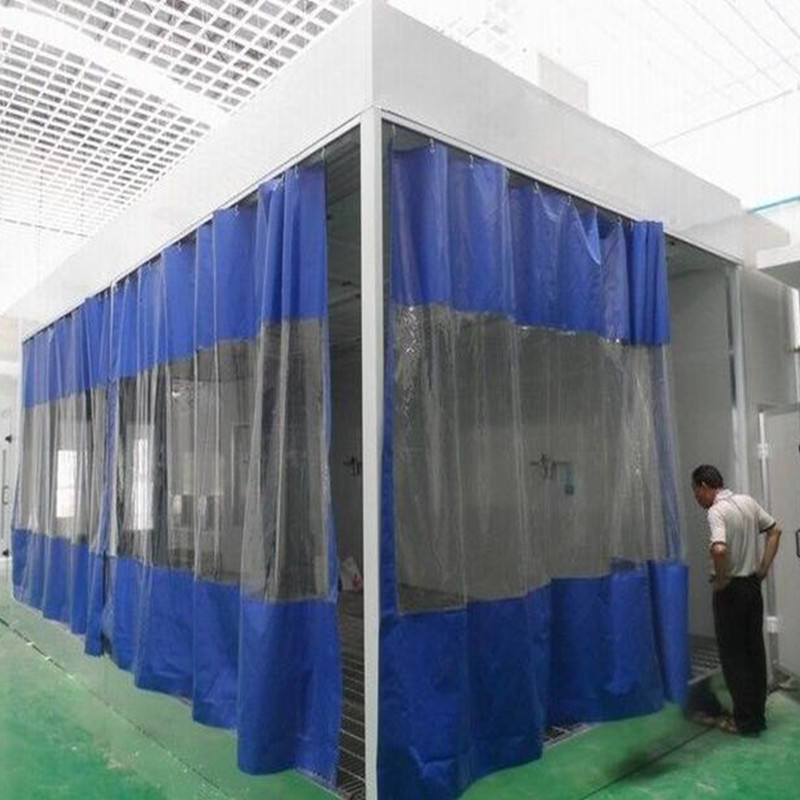

Room structure	The front, left and right sides are PVC curtains, and the back side is EPS wall panel
wall panel	EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional )
roof	0.6mm galvanized sheet bending
illumination	Top lighting: 8 groups × 4 pcs = 32 pcs 18W lamps Illumination ≥800Lux
Air Unit installation	Rear upper exhaust, square tube welding + aluminum tee frame, spray white paint, high-strength mechanism 20mm thick rock wool board mask
Exhaust air Unit	1 double-inlet centrifugal fan, pulley drive, single motor power: 4KW; total flow: 15000m3 /h, no-load wind speed: 0.2m/s; exhaust electric adjustment damper .
filtering system	1 Sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5, 2 Glass fiber paint-resistant cotton blanket filtration: EN 779 Level: G3; 3 Dust filter cotton : adsorbs exhaust gas dust particles
Electronic control system	Polishing, lighting switch, timer, fault indicator light, power switch, emergency stop switch
Pipeline system	The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow;
total power	5KW
Other configurations	Tool cabinets, electrical cabinets

High-Quality Pre-Station for Professional Automotive Paint Jobs 0

If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
