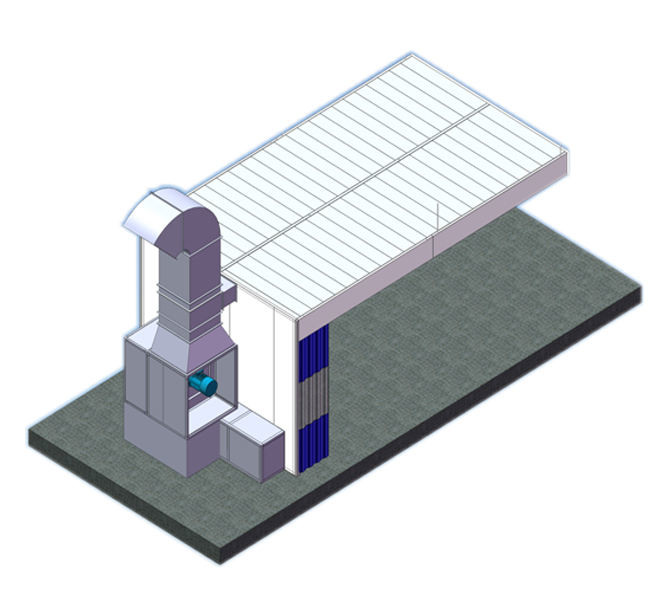

Versatile Pre-Station for Various Vehicle Painting Applications
Versatile Pre-Station is ideal for a range of applications, from temporary factory warehouses to
outdoor event venues. Constructed with high-strength galvanized steel and PVC waterproof fabric,
it offers excellent windproof and rainproof protection. With ergonomic design and customizable options,
it ensures efficient preparation, making it a practical, long-lasting solution for up to 10 years.
|
Inside
dimension
|
6900 × 3900 × 2700 mm (L × W × H) |
| outer dimension |
8250 × 4000 × 34 00 mm (L × W × H) |
| Basement |
1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted according to needs) (Gutter exhaust, rear wall optional exhaust) |
|
Room
structure
|

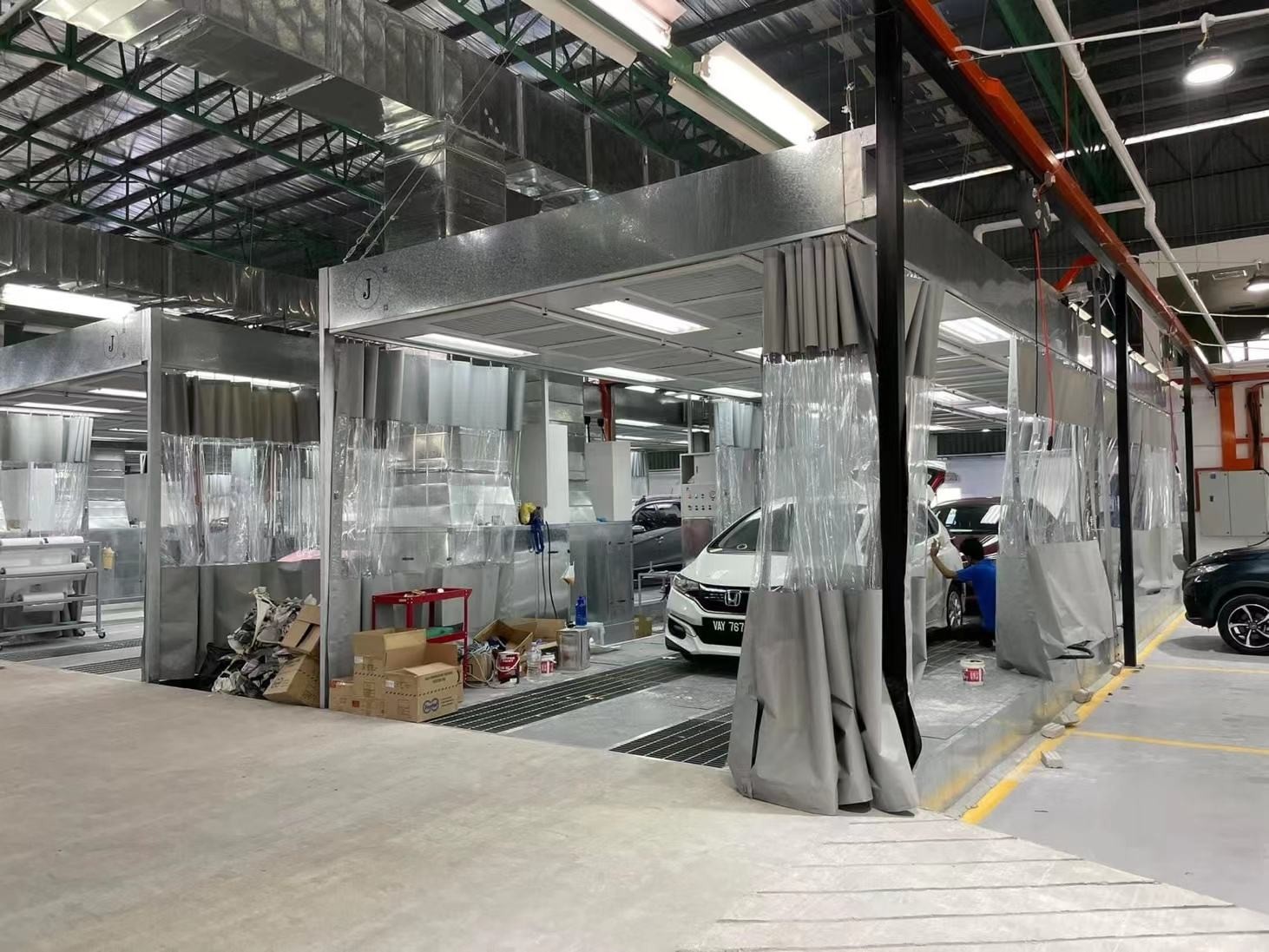

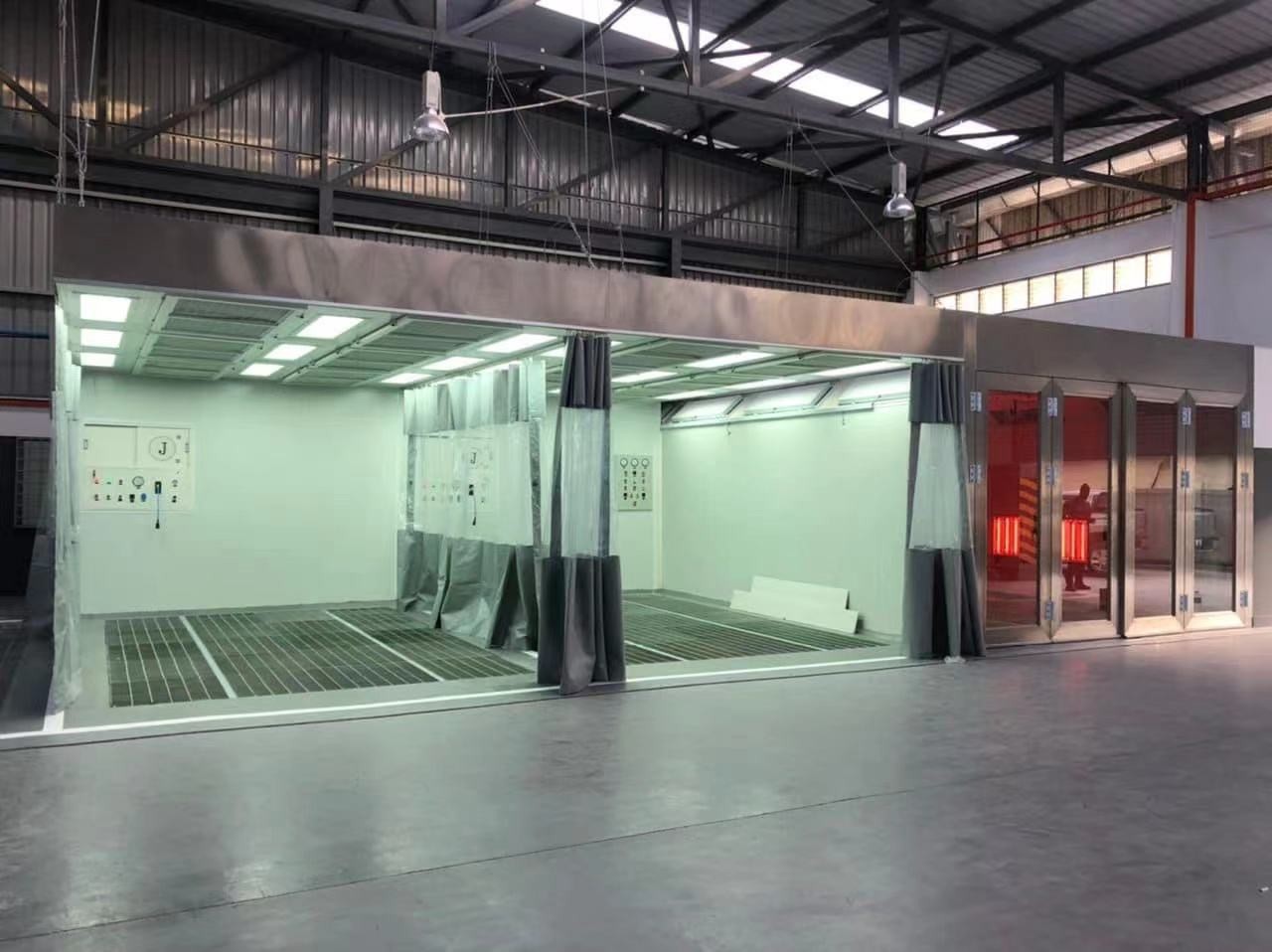

The front, left and right sides are PVC curtains, and the back side is EPS wall panel |
| wall panel |
EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
| roof |
0.6mm galvanized sheet bending |
| illumination |

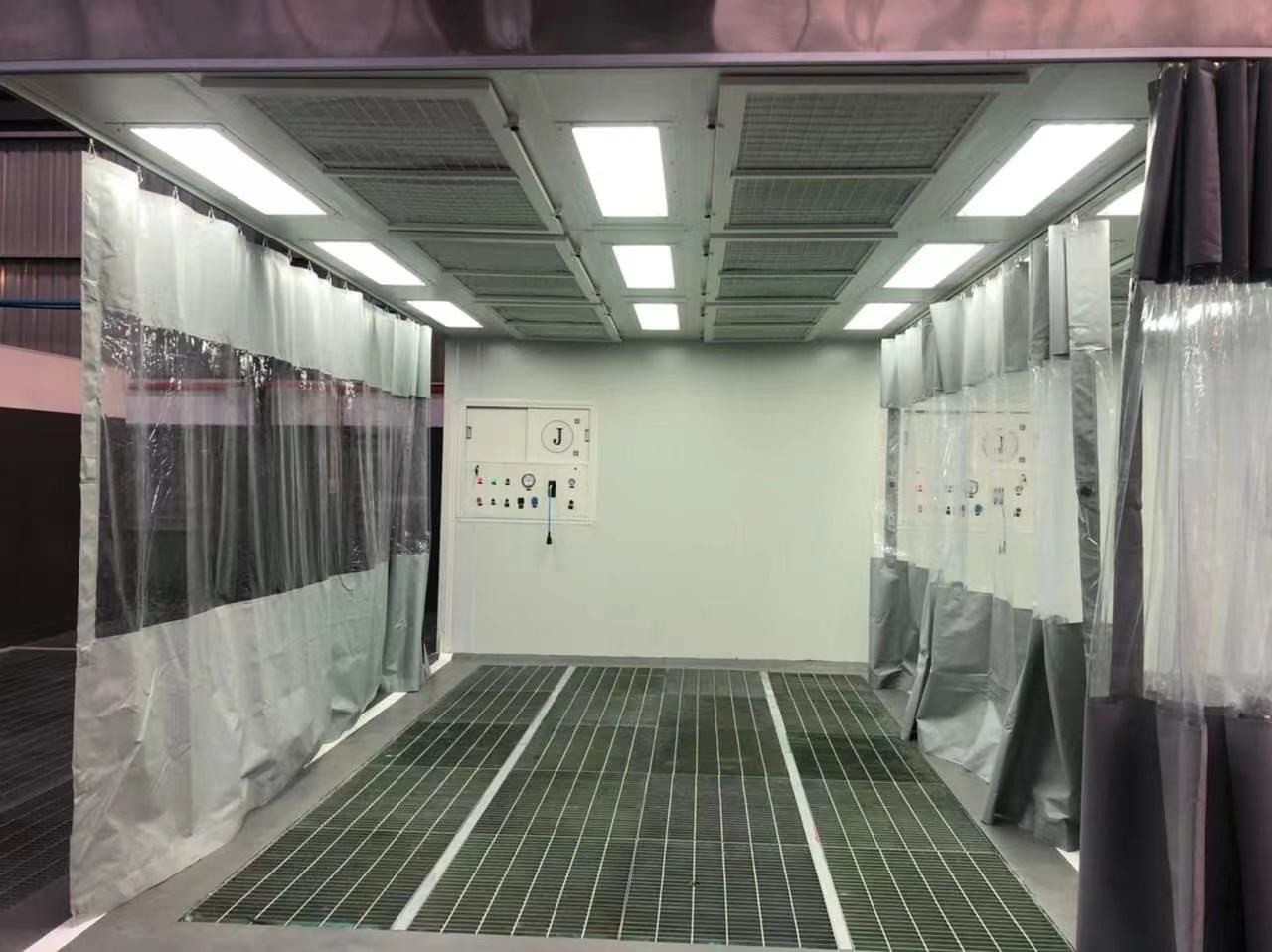

Top lighting: 8 groups × 4 pcs = 32 pcs 18W lamps
Illumination ≥800Lux
|
|
Air Unit
installation
|
Rear upper exhaust, square tube welding + aluminum tee frame, spray white paint, high-strength mechanism 20mm thick rock wool board mask |
|
Exhaust
air Unit
|
1 double-inlet centrifugal fan, pulley drive, single motor power: 4KW; total flow: 15000m3 /h, no-load wind speed: 0.2m/s; exhaust electric adjustment damper . |
|
filtering
system
|
1 Sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5,
2 Glass fiber paint-resistant cotton blanket filtration: EN 779 Level: G3;
3 Dust filter cotton : adsorbs exhaust gas dust particles
|
| Electronic control system |
Polishing, lighting switch, timer, fault indicator light, power switch, emergency stop switch |
|
Pipeline
system
|
The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow; |
| total power |
5KW |
|
Other
configurations
|
Tool cabinets, electrical cabinets |
