NAME: | Preparation Station | Using Energy:: | Diesel,gas,steam,electric Or Other Option |
---|---|---|---|
Main Door:: | Fold Style Or Electric Rolling Style | Motor:: | Chinese Brand Or Import Brand |
Control Sytem:: | Switch Style Or PLC Touch Screen Control | Wall:: | Metal Sheld,EPS,Rock Wool Of PU For Option |
Color:: | White Or Other Option | Application:: | Bus/truck Or Other Metallic Products |
Energy Sources:: | Water, Electricity,gas | Coating: | 10-50um |
Dimention:: | As Require | ||
Highlight: | ce mobile paint prep station,paint prep booth 1150mm,ce paint prep booth |

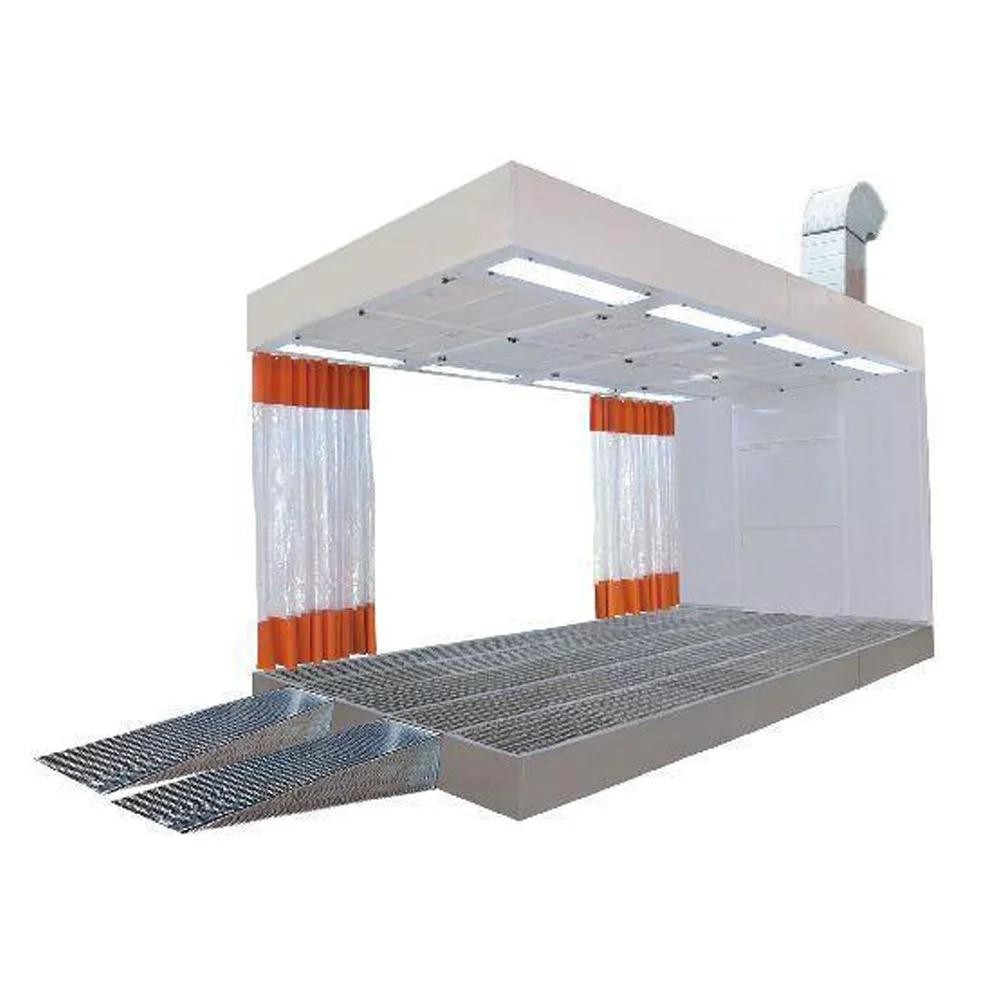

Economical Pre-Station for Comprehensive Vehicle Paint Prep
The Economical Pre-Station provides comprehensive vehicle painting preparation at an affordable price.
Suitable for various applications, it features PVC waterproof cloth and galvanized steel. Easy to push and
pull with V-shaped iron wheels, it ensures thorough pre-paint tasks in a windproof, rainproof environment.
Customizable and durable, it offers a practical solution with a 10-year service life.
Inside dimension |
6900 × 3900 × 2700 mm (L × W × H) |
outer dimension | 8250 × 4000 × 34 00 mm (L × W × H) |
Basement | 1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted according to needs) (Gutter exhaust, rear wall optional exhaust) |
Room structure |

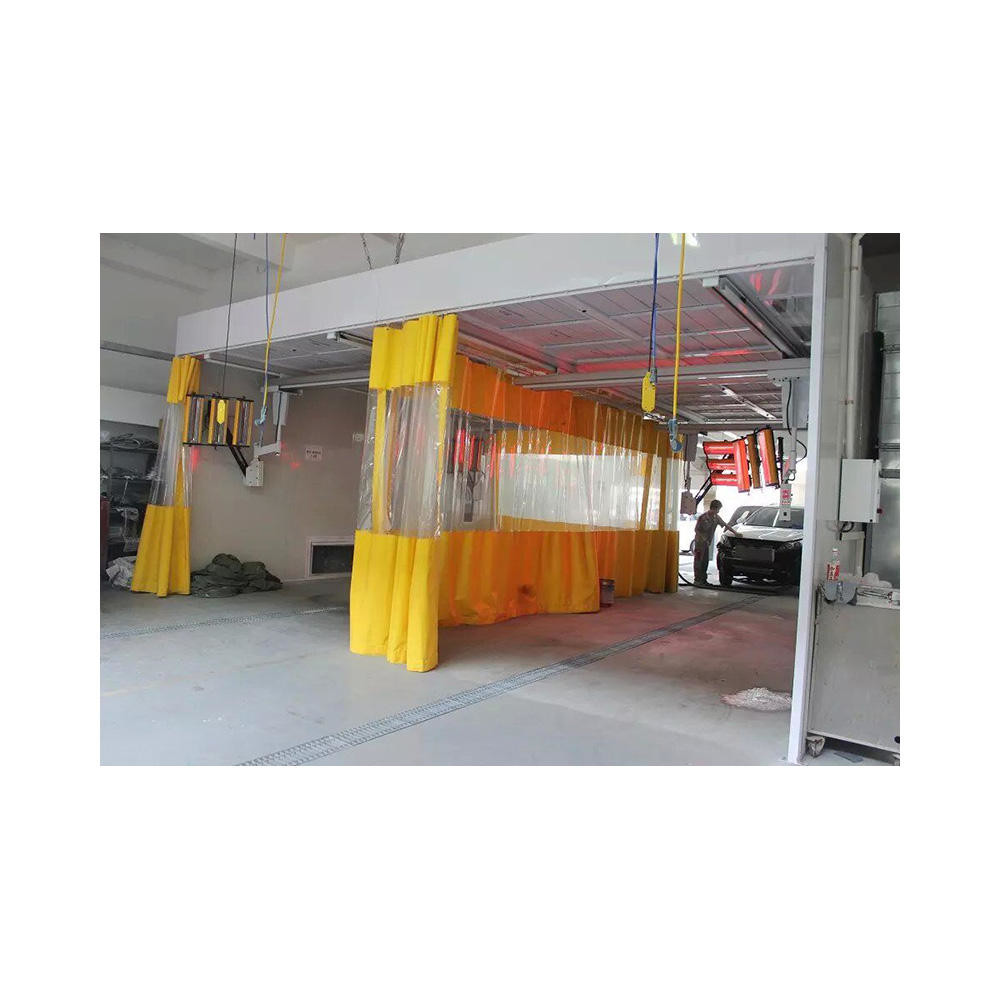

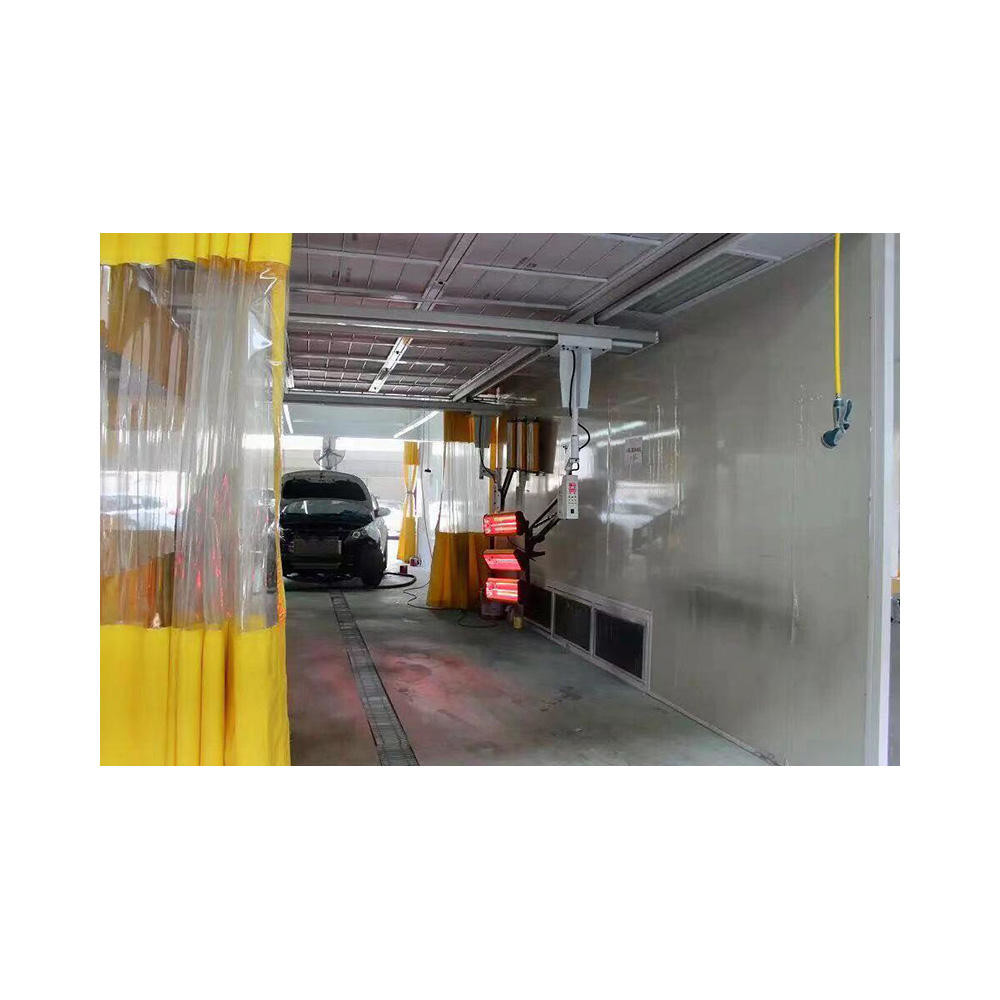

The front, left and right sides are PVC curtains, and the back side is EPS wall panel |
wall panel | EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
roof | 0.6mm galvanized sheet bending |
illumination |
Top lighting: 8 groups × 4 pcs = 32 pcs 18W lamps Illumination ≥800Lux |
Air Unit installation |
Rear upper exhaust, square tube welding + aluminum tee frame, spray white paint, high-strength mechanism 20mm thick rock wool board mask |
Exhaust air Unit |
1 double-inlet centrifugal fan, pulley drive, single motor power: 4KW; total flow: 15000m3 /h, no-load wind speed: 0.2m/s; exhaust electric adjustment damper . |
filtering system |
1 Sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5, 2 Glass fiber paint-resistant cotton blanket filtration: EN 779 Level: G3; 3 Dust filter cotton : adsorbs exhaust gas dust particles |
Electronic control system | Polishing, lighting switch, timer, fault indicator light, power switch, emergency stop switch |
Pipeline system
|
The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow; |
total power | 5KW |
Other configurations |
Tool cabinets, electrical cabinets |
