Efficient Vehicle Painting Pre-Station with Ergonomic Design
Enhance efficiency with our ergonomic Pre-Station for vehicle painting preparation. Designed for
comfort and productivity, it features proper lighting, ventilation, and dust extraction. Constructed
with high-strength materials, it offers windproof and rainproof protection, ensuring thorough preparation tasks.
Customizable and durable, it’s a practical addition to any auto body shop with a 10-year service life
|
Inside
dimension
|
6900 × 3900 × 2700 mm (L × W × H) |
| outer dimension |
8250 × 4000 × 34 00 mm (L × W × H) |
| Basement |
1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted steel floor grille, overall load-bearing 2.4T; (load-bearing can be adjusted according to needs) (Gutter exhaust, rear wall optional exhaust) |
|
Room
structure
|

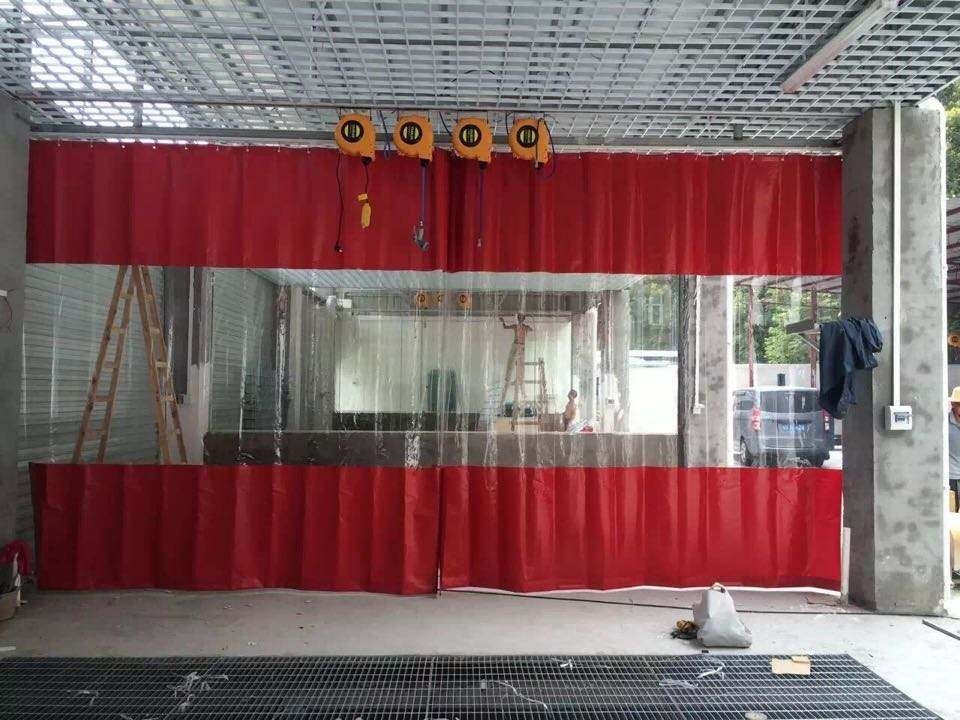

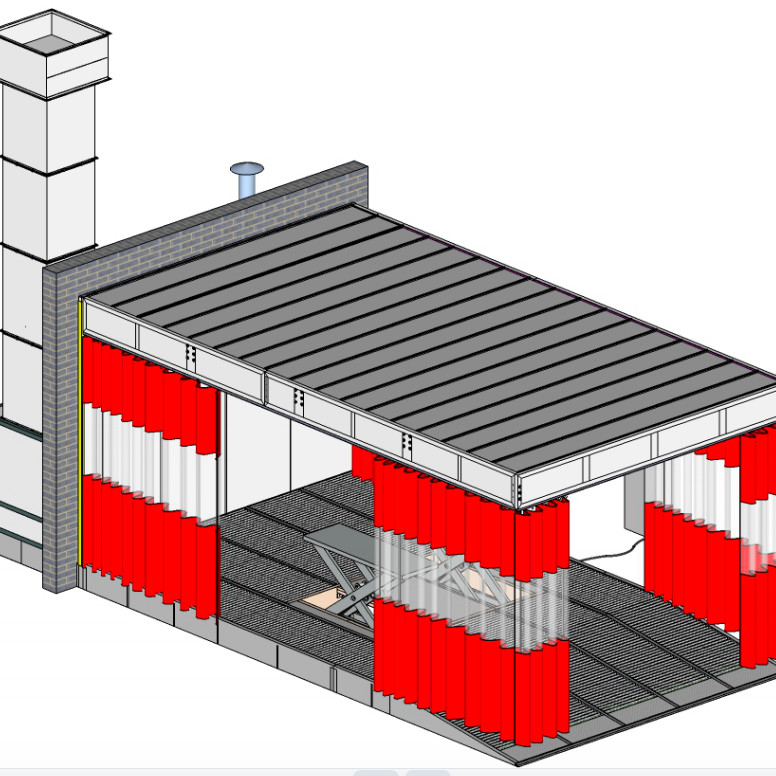

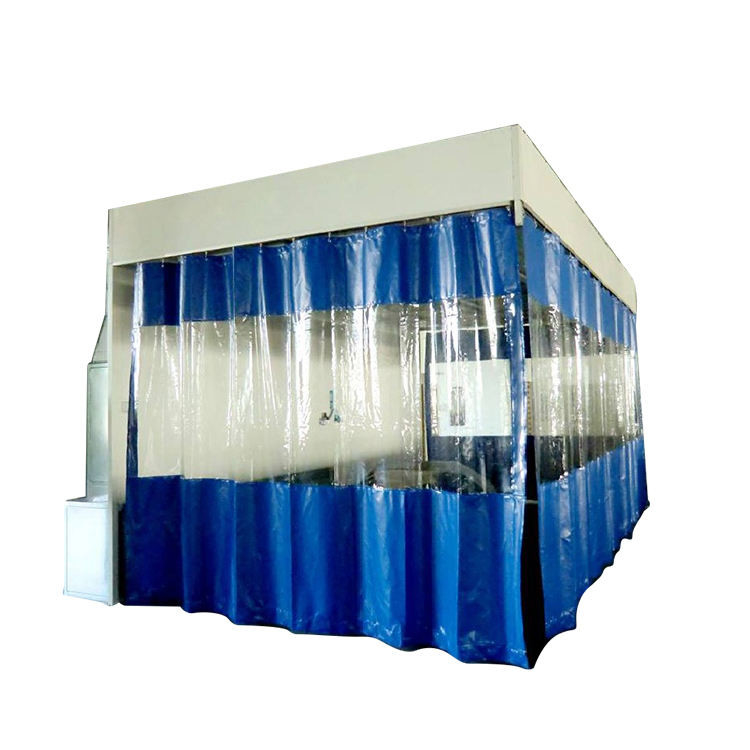

The front, left and right sides are PVC curtains, and the back side is EPS wall panel |
| wall panel |
EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on both sides; ( Rock wool, PU optional ) |
| roof |
0.6mm galvanized sheet bending |
| illumination |
Top lighting: 8 groups × 4 pcs = 32 pcs 18W lamps
Illumination ≥800Lux
|
|
Air Unit
installation
|
Rear upper exhaust, square tube welding + aluminum tee frame, spray white paint, high-strength mechanism 20mm thick rock wool board mask |
|
Exhaust
air Unit
|
1 double-inlet centrifugal fan, pulley drive, single motor power: 4KW; total flow: 15000m3 /h, no-load wind speed: 0.2m/s; exhaust electric adjustment damper . |
|
filtering
system
|
1 Sub-high efficiency filtration: full depth three-dimensional viscose; EN799 level: F5,
2 Glass fiber paint-resistant cotton blanket filtration: EN 779 Level: G3;
3 Dust filter cotton : adsorbs exhaust gas dust particles
|
| Electronic control system |
Polishing, lighting switch, timer, fault indicator light, power switch, emergency stop switch |
|
Pipeline
system
|
The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow; |
| total power |
5KW |
|
Other
configurations
|
Tool cabinets, electrical cabinets |
FAQ
1,Who are we?
CoatTech Intelligent Equipment(Guangzhou) CO.,LTD is a professional enterprise that produces environmental
protection equipment.
2,How do we ensure quality?
Always conduct final inspection before shipment.
3,What can you buy from us?
The main product is spray booth,coating line,painting line.
4,Why do you want to purchase from us instead of other suppliers?
We have been specializing in the production of environmental protection equipment for many years, and are a manufacturer
of environmental protection equipment that integrates design, research and development, production, and after-sales service.
5,What services can we provide?
Accepted delivery methods: FOB, CFR, CIF, EXW, CIP; Accepted payment currencies: USD, EUR, AUD, RMB;
Accepted payment methods: wire transfer, letter of credit, cash.
6,What is your delivery date?
Normally, we will send you our standard specification goods within 10-15 days after receiving your payment.
This depends on the quantity you order.
7,Can you design the artwork(design) according to our requirements?
Of course we can. All products can be customized according to your own design.
8,Are you a factory or a trading company?
We are a factory with our own design and production, and competitive price advantages.
9,Where is your factory located?
Guangzhou City,Guangdong Province, China.
10. How do I get there?
About half an hour's drive from Guangzhou International Airport. Welcome friends from all over the world to our factory.
