PLC Touch Screen Control Advanced Paint Prep Station with Dual Filtration System

MOQ:	1
Price:	USD5000-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

PT-16

NAME:

Preparation Station

Using Energy::

Diesel,gas,steam,electric Or Other Option

Main Door::

Fold Style Or Electric Rolling Style

Motor::

Chinese Brand Or Import Brand

Control Sytem::

Switch Style Or PLC Touch Screen Control

Wall::

Metal Sheld,EPS,Rock Wool Of PU For Option

Color::

White Or Other Option

Application::

Bus/truck Or Other Metallic Products

Energy Sources::

Water, Electricity,gas

Coating:

10-50um

Dimention::

As Require

Highlight:

PLC Touch Screen Paint Prep Station

Dual Filtration System Paint Prep Station

Advanced Paint Prep Station

Product Description

PLC Touch Screen Control Advanced Paint Prep Station with Dual Filtration System

Description:

The CoatTech Custom Pre-Station is a premium preparation station engineered for demanding environments. Constructed with heavy-duty materials like 1.2mm galvanized steel and high-strength PVC fabric, it delivers unmatched durability and weather resistance. Its customizable design allows for easy adaptation to your workspace requirements, ensuring optimal performance for up to 10 years of intensive use.

Key Features:

✓ Durable & Weatherproof: Built to withstand harsh conditions.

✓ Customizable Design: Adjustable dimensions and configurations.

✓ Superior Filtration: Dual F5 and G3 filters for a dust-free environment.

✓ Enhanced Lighting: 32 × 18W LED lamps providing ≥800 Lux.

✓ Intuitive Controls: Electronic system with timers and emergency stop features.

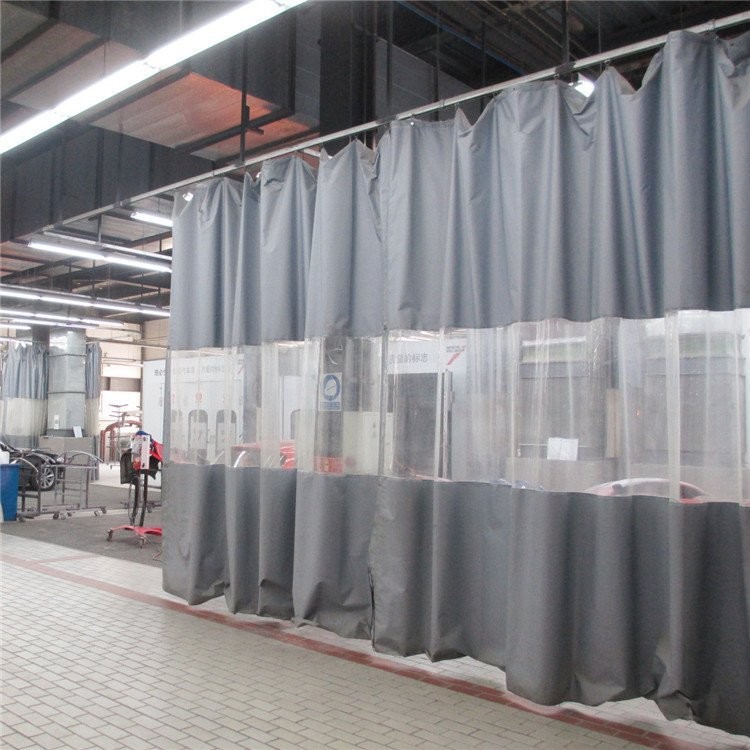

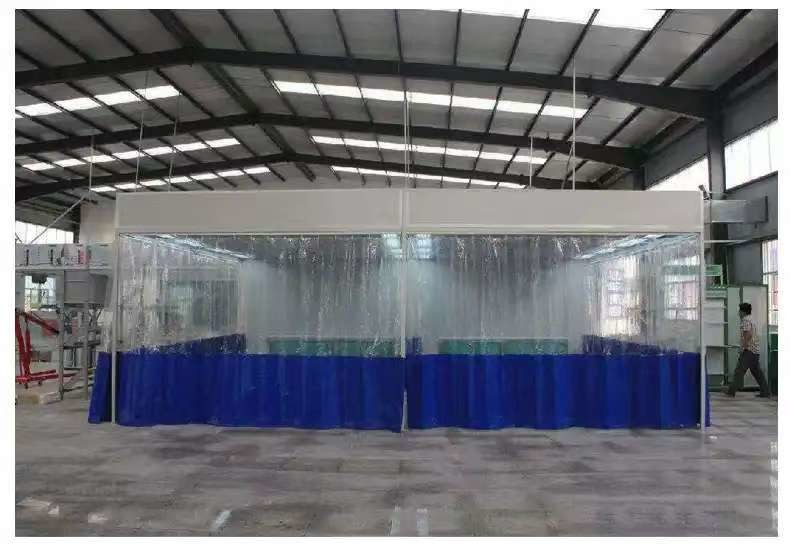

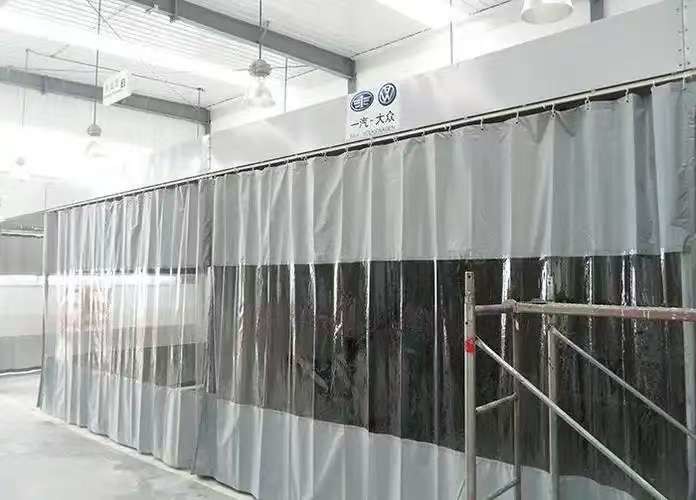

✓ Space Efficiency: PVC curtains and EPS wall panels for easy entry.

Technical Specifications:

Parameter	Details
Inside Dimensions	6900 × 3900 × 2700 mm (L × W × H)
Outer Dimensions	8250 × 4000 × 3400 mm (L × W × H)
Basement	1.2mm galvanized sheet with square tube support, 2.4T load capacity (adjustable)
Wall Panels	50mm EPS with 0.426mm color steel (rock wool or PU optional)
Roof	0.6mm galvanized sheet
Lighting	32 × 18W LED lamps, ≥800 Lux illumination
Air Exhaust	4KW centrifugal fan, 15,000m³/h flow, 0.2m/s no-load wind speed
Filtration	Dual system: F5 (EN799) and G3 (EN779) filters
Pipeline System	3 straight ducts (600 × 600 × 1000mm), 1 90° elbow, 1 45° elbow
Total Power	5KW

Applications:

Perfect for auto body shops, industrial manufacturing plants, and professional painting workshops.

Customization Options:

Tailor the Pre-Station to your operational demands with adjustable load capacity and optional exhaust configurations.
