Automotive Preparation Station | Car Sanding & Primer Bay | Dust Extraction Grinding Room

Dual Bay Car Prep Station with PVC Curtains | Auto Body Pre-Painting Sanding Room | Downdraft Primer Station with Ceiling Filter

Product spotlights

Dual Functionality: Designed for sanding, putty application, and primer spraying before the car enters the main paint booth.
Space Saving: Uses heavy-duty PVC soft curtains instead of solid metal walls, making it easy to access and flexible for the workshop layout.
Clean Workshop: High-performance air circulation keeps sanding dust off the floor and out of your main paint booth.
Cost Effective: Much cheaper to run than a full spray booth. Use this for quick repairs and priming to save energy.
Flexible Configuration: Available in Single Bay, Double Bay, or Drive-Through configurations.

Product Details

Parameter	Specification Details
Model	CT-PREP-200 (Double Bay)
Inside Dimension	6300 × 3450 × 2700 mm (Per Bay) – Total width depends on bay count.
Plenum Chamber	Galvanized steel, powder-coated. Dimensions: 6300 × 3450 × 400 mm.
Wall System	PVC Soft Curtains (0.5mm thick) on sides/front. Back wall is 50mm EPS Panel.
Basement	Full Grid Metal Base (above ground) or Rear Draft (no basement needed).
Air Intake	Natural intake from workshop (through ceiling filters) or Independent Fan Unit.
Air Exhaust	1 × 5.5kW Centrifugal Fan (Large Volute) per bay.
Air Capacity	18,000 m³/h per bay.
Filtration	Ceiling: EU5 High-efficiency filter. Floor/Wall: Fiberglass paint-stop filter.
Lighting	Ceiling mounted: 32 pcs × 16W LED lamps. (Explosion proof).
Control Box	Power Indicator, Fan Switch, Lighting Switch, Emergency Stop.
Power Supply	380V / 3Phase / 50Hz (Customizable).
Optional	Infrared Mobile Dryer (Short wave) for quick curing of primer

Detailed Product Description

Optimized Workflow for Body Shops The CT-PREP-200 is the workhorse of the body shop. By performing sanding, masking, and priming in this dedicated station, you prevent dust contamination in your main spray booth. This dramatically improves the quality of your final topcoat.

Airflow Design (Semi-Downdraft) Air is drawn from the workshop through the top plenum filters (cleaning the air), moves downwards over the vehicle to capture sanding dust and primer overspray, and is exhausted through the rear wall or floor pit. This ensures the technician breathes clean air.

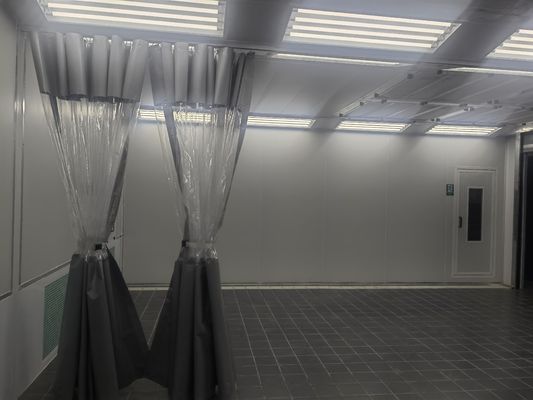

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

Convenience: Easily slide curtains open to move cars in and out quickly.
Visibility: Transparent windows allow the manager to monitor work progress.
Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.

FAQ

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

Tag:

Place of Origin:	China
Brand Name:	CoatTech
Certification:	CE
Model Number:	PT-10

Minimum Order Quantity:	1
Price:	USD5000-USD10000/SET
Packaging Details:	With regular Film and Carton
Delivery Time:	15 DAYS After Deposit
Payment Terms:	T/T
Supply Ability:	30SET/MONTH

NAME:	Preparation Station	Using Energy::	Diesel,gas,steam,electric Or Other Option
Main Door::	Fold Style Or Electric Rolling Style	Motor::	Chinese Brand Or Import Brand
Control Sytem::	Switch Style Or PLC Touch Screen Control	Wall::	Metal Sheld,EPS,Rock Wool Of PU For Option
Color::	White Or Other Option	Application::	Bus/truck Or Other Metallic Products
Energy Sources::	Water, Electricity,gas	Coating:	10-50um
Dimention::	As Require
Highlight:	automotive sanding station with dust extraction , car primer bay grinding room , pre station for automotive preparation
