Series CT-WC Industrial Water Curtain Spray Booth System High-Gloss Finishing Applications

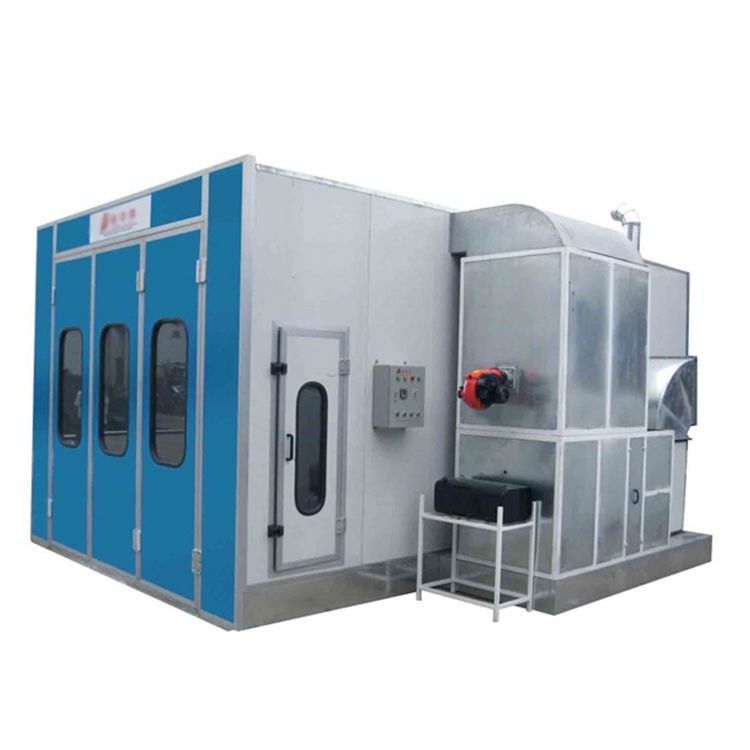

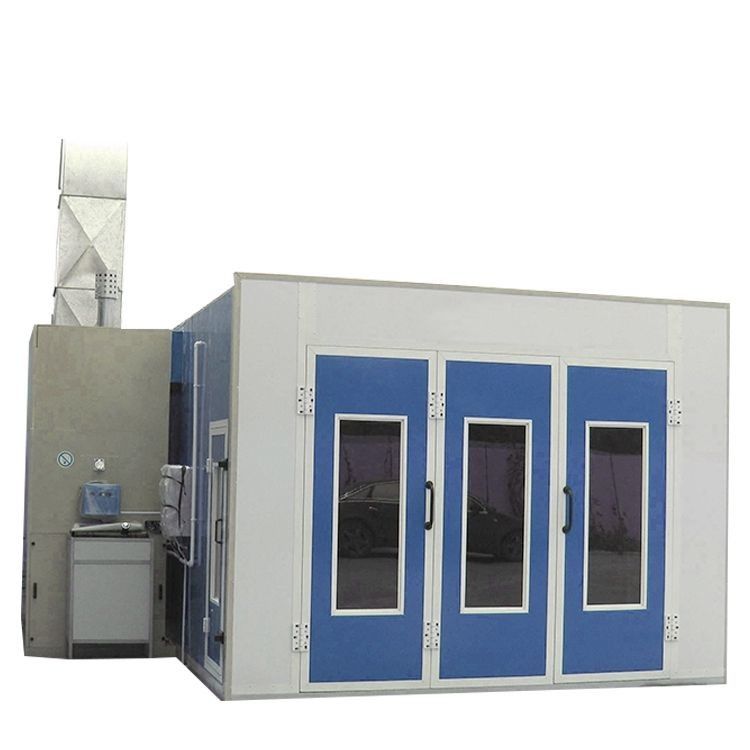

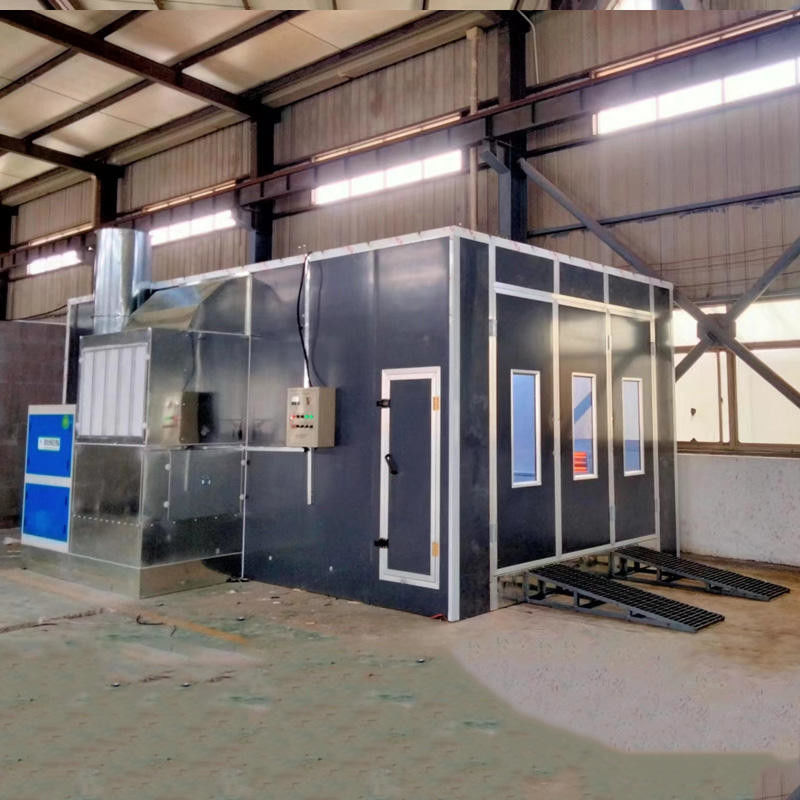

Series CT-WC Industrial Water Curtain Spray Booth System

Hydro-Filtration Booth for High-Volume, High-Gloss Finishing Applications

Technical Overview: The CT-WC Series utilizes the principle of water-washing to capture paint overspray. It is the preferred solution for high-production environments or applications using sticky coatings (like high-gloss PU/PE furniture paint) that quickly clog dry filters. A continuous laminar flow of water flows down a stainless steel curtain wall, capturing airborne paint particles and washing them into a collection tank.

Key Engineering Features:

1. Stainless Steel Water Curtain Plate:

   • The crucial curtain wall is fabricated strictly from SUS304 Stainless Steel. This ensures a perfectly smooth surface for an unbroken water film and prevents corrosion that would disrupt water flow and reduce capture efficiency.

2. High-Volume Circulation System:

   • Utilizes high-flow vertical centrifugal pumps designed specifically for water-borne paint sludge. Large-diameter piping and an optimized manifold ensure continuous, even water distribution across the entire curtain width without clogging.

3. Secondary Hydro-Whirl Scrubbing:

   • Behind the visible curtain, the exhaust air is pulled through a secondary chamber containing high-pressure water spray nozzles and baffles. This "hydro-whirl" action scrubs remaining fine paint mist from the air before it reaches the exhaust fan.

4. Filtration Efficiency:

   • Achieves ≥98% capture efficiency for solid paint particles, significantly reducing environmental discharge loads.

Technical Specifications Table (Model CT-WC-4000):

Parameter	Specification Details
Model Number	CT-WC-4000 (4 Meter Width)
Working Dimensions (W×D×H)	4000 × 2500 × 2600 mm (Customizable)
Curtain Plate Material	SUS304 Stainless Steel
Water Circulation Pump	1 unit × 2.2 KW Vertical Centrifugal Pump
Exhaust Fan	1 unit × 5.5 KW Centrifugal Fan (Ex-Proof)
Airflow Volume	20,000 m³/h
Face Air Velocity	0.35 – 0.5 m/s
Filtration Principle	Primary Water Curtain + Secondary Hydro-Scrubbing

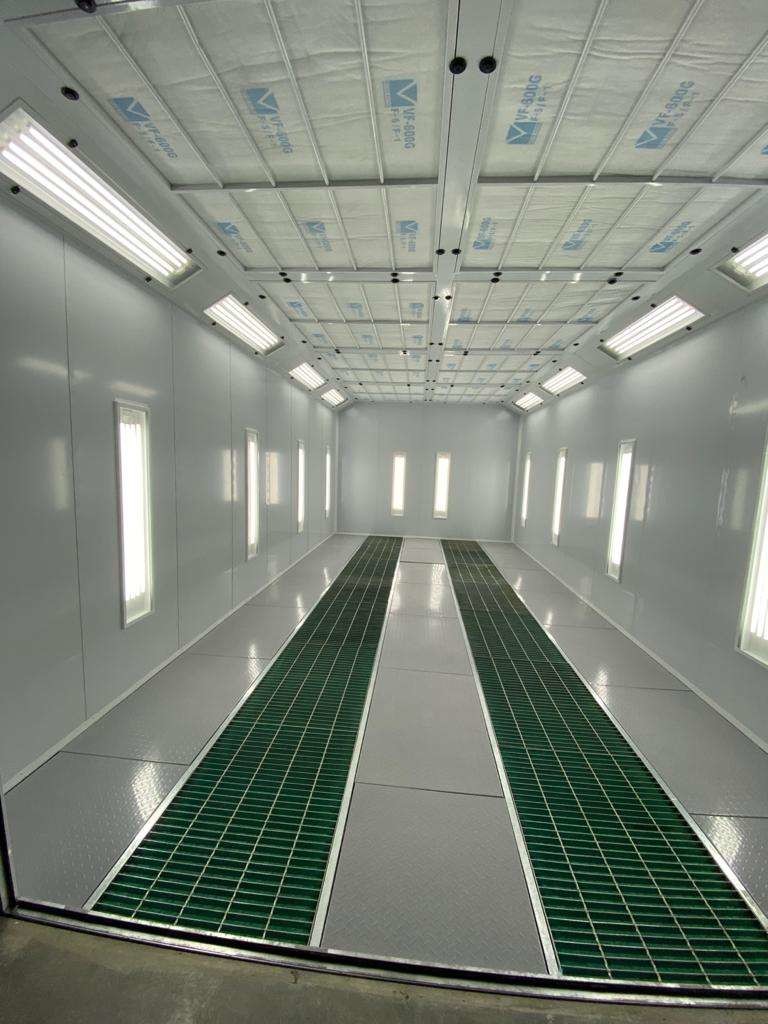

Lighting	Explosion-Proof LED Fixtures (≥800 Lux)
Water Tank Structure	Welded Carbon Steel with Anti-Rust Coating
