| Size: | 10 Inches | Type: | Water Filter |
|---|---|---|---|
| Compatibility: | Fits Most Standard Faucets | Flow Rate: | 5 Gallons Per Minute |
| Power Source: | None | Filter Life: | 6 Months |
| Certifications: | NSF/ANSI 42, NSF/ANSI 53 | Material: | Stainless Steel |
| Filtration Level: | 0.5 Microns | Warranty: | 1 Year |
| Installation Type: | Under Sink | Included Components: | Filter Cartridge, Installation Hardware |
| Highlight: | stainless steel water curtain spray booth,overspray containment spray booth,woodworking spray booth with filtration |
||
Overview:

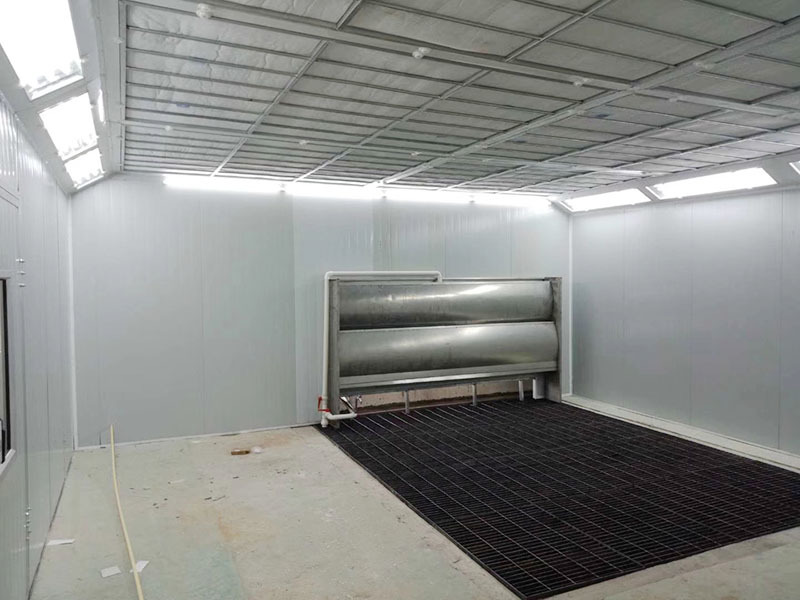

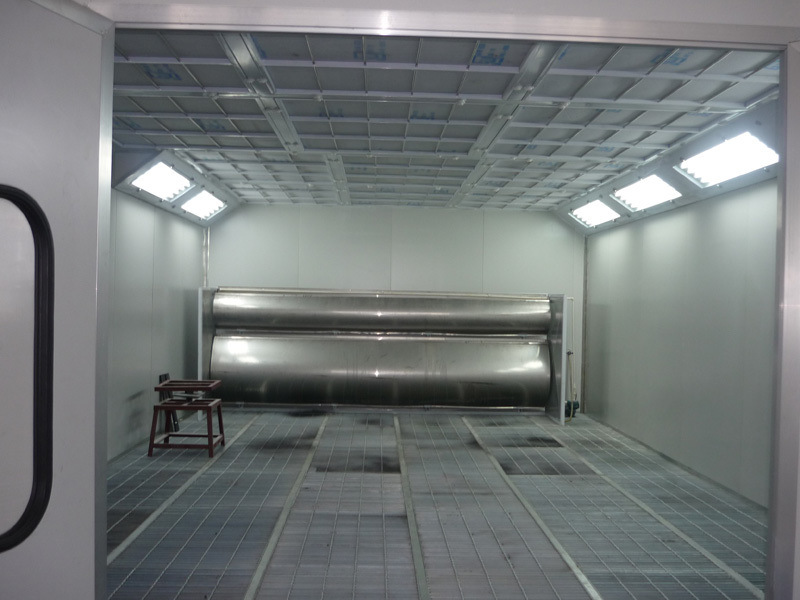

Ideal for the furniture and woodworking industries, the CoatTech Water Curtain Booth utilizes a continuous flow of water to capture sticky paint overspray. This wet filtration method is superior for high-viscosity paints (PU/PE/NC) and high-gloss finishes, as it effectively removes paint mist from the air before it reaches the fan.
Core Features:
Dual Filtration: First stage water curtain captures majority of paint; second stage internal spray nozzles wash the air; optional third stage dry filter ensures environmental compliance.
Corrosion Resistance: The water curtain plate and tank are fabricated from high-grade 304 Stainless Steel to prevent rust and ensure a smooth water film.
Easy Maintenance: Designed with a hinge-access rear door for easy cleaning of the water tank and removal of paint sludge.
Explosion Proof: Fan motors and lighting are EX-rated for safety with volatile solvents.
Technical Specifications:
Fan Type: High-pressure centrifugal fan (belt driven).
Water Pump: Vertical pipeline pump (large flow, low noise).
Noise Level: $< 80$ dB.

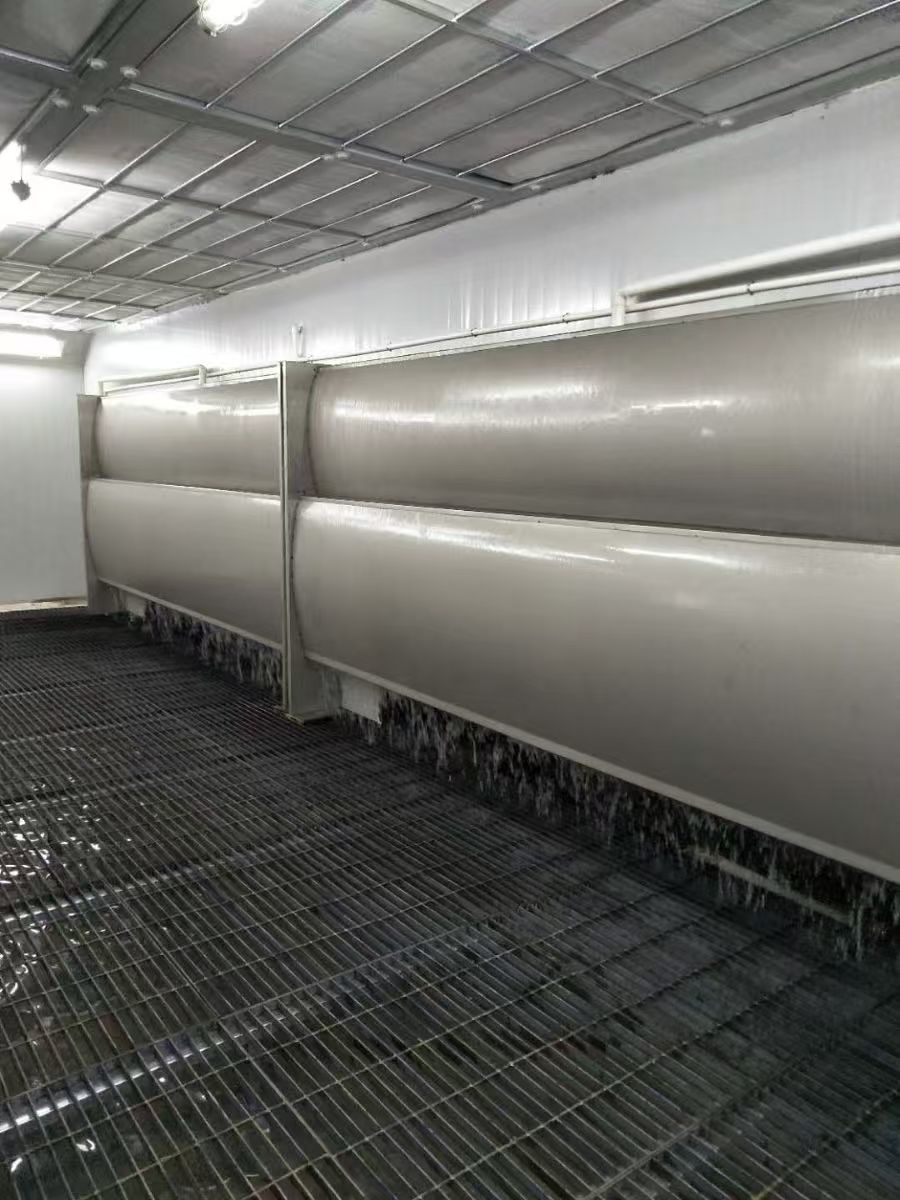

Curtain Shape: Saw-tooth or Smooth plate design (optimized for non-turbulent flow).
Applications:
Woodworking (furniture, cabinets, doors), musical instruments, plastics, and helmet painting.
| Parameter | Single Station (CT-WAT-2M) | Double Station (CT-WAT-4M) | Custom Configuration |
| Working Width | 2000mm | 4000mm | Up to 10m+ (Continuous wall) |
| Overall Dimensions | L2.2m XD1.8m X H2.5m | L4.2mXD2.0mXH2.5m | Custom Depth for conveyor |
| Curtain Material | 304 Stainless Steel | 304 Stainless Steel | 316 Grade (Higher acid resistance) |
| Water Tank | 2.0mm Welded Steel (Anti-rust) | 3.0mm Welded Steel | 304 Stainless Steel Tank |
| Airflow Capacity | $8,000 - 12,000 M3/H | $20,000 - 25,000M3/H | High-pressure fans for long ducting |
| Fan Type | Axial or Centrifugal (Belt) | Centrifugal (Belt Driven) | Explosion Proof Motor (EX) |
| Water Pump | Submersible / Vertical Pipeline | Vertical Pipeline (External) | Dual Pump Redundancy |
| Filtration Stages | Water Curtain | Water Curtain + Internal Spray | Dry filter added for exhaust |
| Lighting | LED Tube (Vapor proof) | LED Tube (Vapor proof) | Explosion Proof Lighting |
| Power Supply | 380V / 3Phase | 380V / 3Phase | 220V / 415V / 480V |
