304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System

MOQ: 1
Price: USD100-USD1000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-VOC-30002
Size:
10 Inches
Type:
Water Filter
Compatibility:
Fits Most Standard Faucets
Flow Rate:
5 Gallons Per Minute
Power Source:
None
Filter Life:
6 Months
Certifications:
NSF/ANSI 42, NSF/ANSI 53
Material:
Stainless Steel
Filtration Level:
0.5 Microns
Warranty:
1 Year
Installation Type:
Under Sink
Included Components:
Filter Cartridge, Installation Hardware
Highlight:

304 stainless steel water curtain spray booth

,

spray painting booth with dual filtration

,

water curtain spray booth filtering equipment

Product Description

304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System

Overview Designed specifically for high-gloss applications in the woodworking and furniture industries, the CoatTech Water Curtain Booth offers superior overspray capture. A continuous wall of water captures sticky paint particles instantly, preventing them from bouncing back onto the workpiece. This wet filtration method is highly effective for high-viscosity paints (PU/PE/NC) and ensures a cleaner working environment.

Core Features

  • Dual-Stage Filtration: The primary water curtain captures the majority of paint, while secondary internal spray nozzles wash the air before it is exhausted.

  • Corrosion Resistance: The curtain plate and water tank are fabricated from high-grade 304 Stainless Steel to prevent rust and ensure a smooth, unbroken water film.

  • Easy Maintenance: Designed with a hinge-access rear door, allowing for easy cleaning of the water tank and removal of paint sludge.

  • Explosion Proof Safety: All fan motors and lighting fixtures are EX-rated, ensuring safety when working with volatile solvents and fumes.

Technical Specification Sheet

Parameter Single Station (CT-WAT-2M) Double Station (CT-WAT-4M) Custom Configuration
Working Width 2000mm 4000mm Up to 10m+ (Continuous wall)
Overall Dimensions L 2.2m x D 1.8m x H 2.5m L 4.2m x D 2.0m x H 2.5m Custom Depth for conveyor
Curtain Material 304 Stainless Steel 304 Stainless Steel 316 Grade (Higher acid resistance)
Water Tank 2.0mm Welded Steel (Anti-rust) 3.0mm Welded Steel 304 Stainless Steel Tank
Airflow Capacity 8,000 - 12,000 m3/h 20,000 - 25,000 m3/h High-pressure fans for long ducting
Fan Type Axial or Centrifugal (Belt) Centrifugal (Belt Driven) Explosion Proof Motor (EX)
Water Pump Submersible / Vertical Pipeline Vertical Pipeline (External) Dual Pump Redundancy
Lighting LED Tube (Vapor proof) LED Tube (Vapor proof) Explosion Proof Lighting
Power Supply 380V / 3Phase 380V / 3Phase 220V / 415V / 480V

Applications: Woodworking (furniture, cabinets, doors), musical instruments, plastics, and helmet painting.

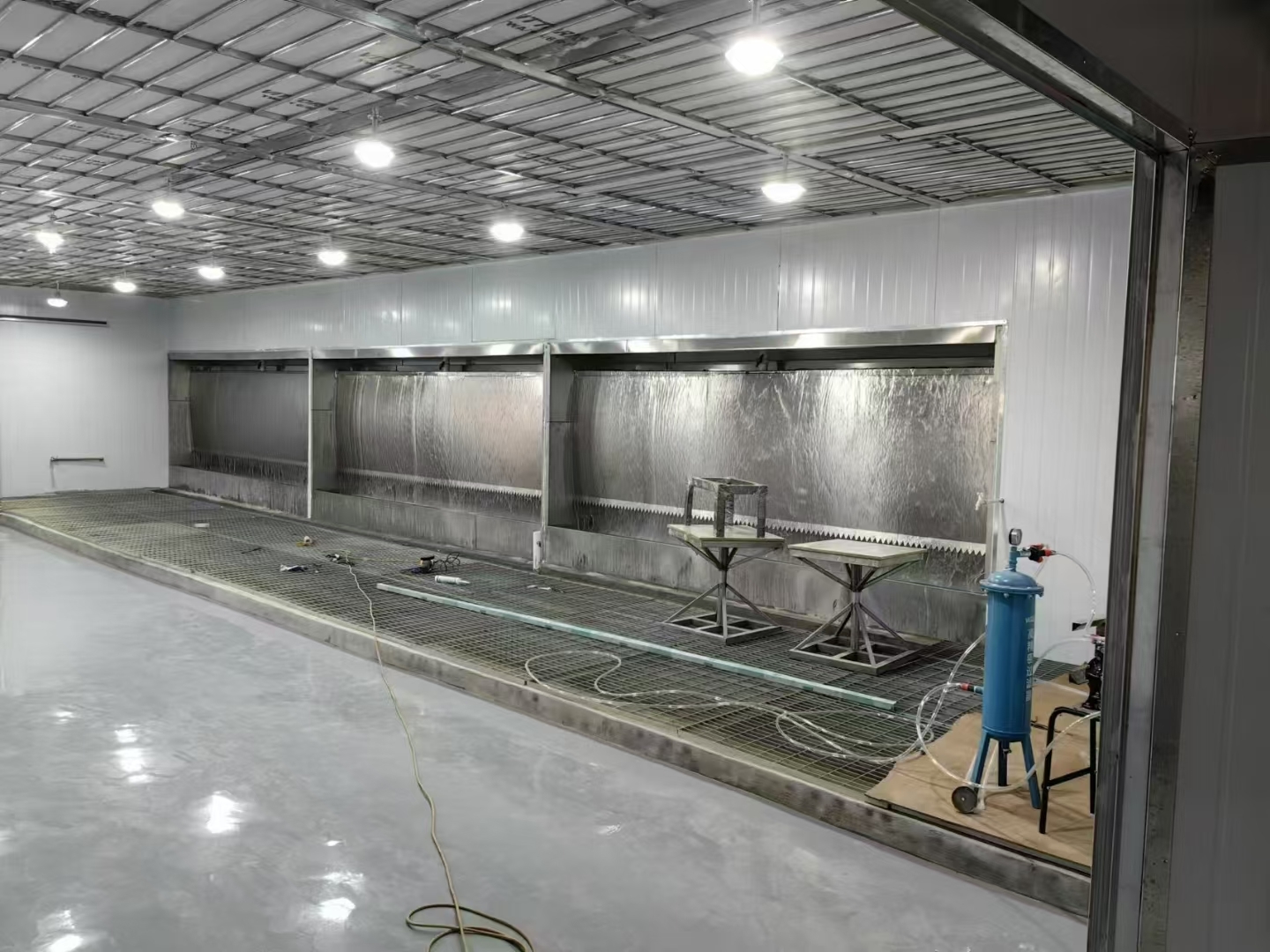

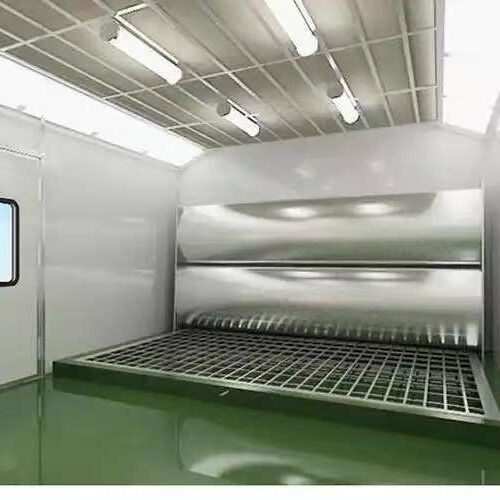

304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System 0304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System 1

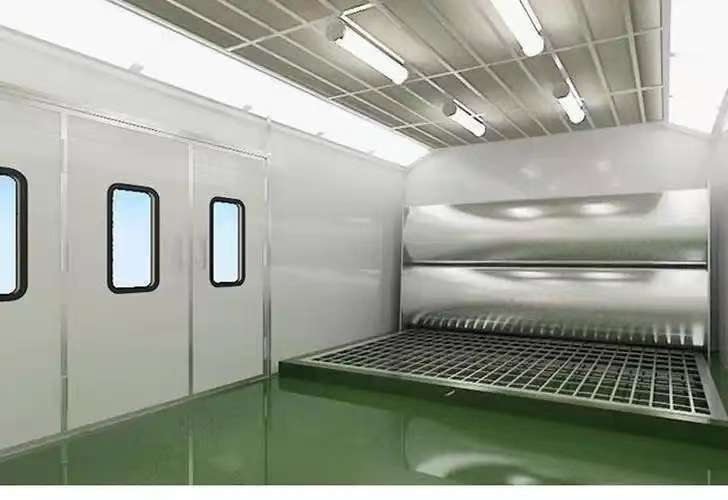

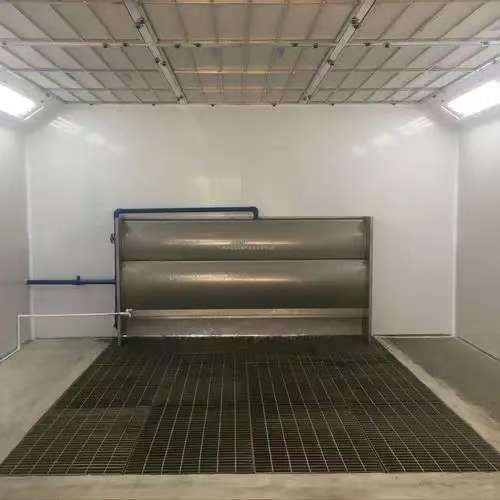

304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System 2304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System 3304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System 4

304 Stainless Steel Water Curtain Spray Painting Booth with Dual Filtration System 5
