Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps

MOQ: 1
Price: USD5000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-PR-A3
NAME:
Preparation Station
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

Infrared heated preparation bay

,

Fast primer curing IR lamps

,

Overhead short-wave infrared heater

Product Description

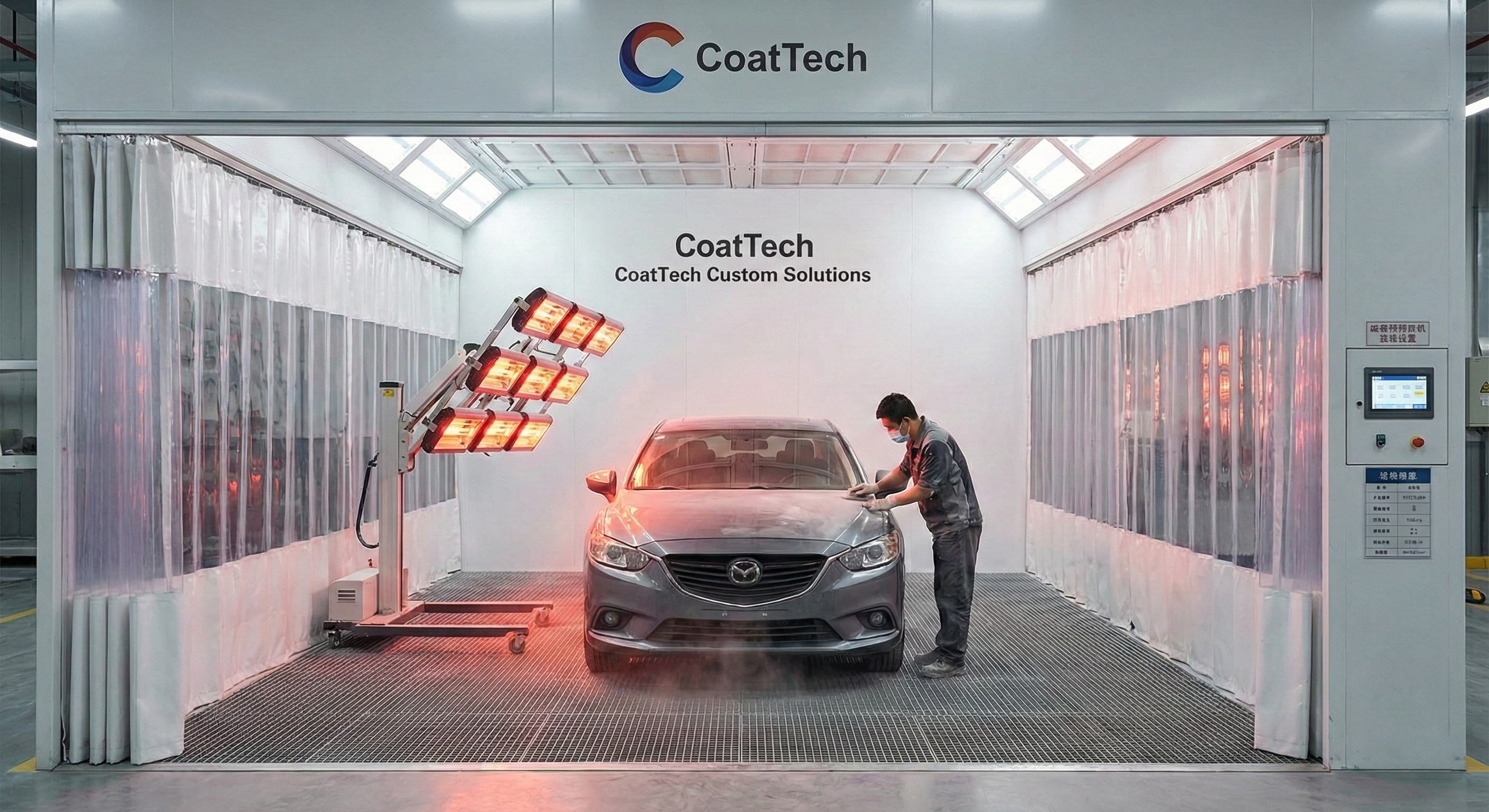

Infrared (IR) Heated Preparation Bay for Fast Primer Curing

Overview

Speed up your workflow with the CoatTech IR-Equipped Prep Station. Based on our standard CT-DM-I structure, this upgraded model integrates overhead Short-Wave Infrared Lamps. This allows technicians to sand, apply primer, and cure the primer in the same spot, reducing vehicle movement and increasing daily throughput.

Core Features

  • Spot Curing: Integrated infrared heater cassettes on overhead rails allow for targeted curing of primer and putty.

  • Zoned Control: Turn on only the lamps needed for the repair area (roof, door, or hood) to save energy.

  • Safety Walls: Rear wall features 0.426mm color steel skin with EPS insulation to reflect heat and maintain structural integrity.

  • Clean Air: Inlet pre-filters and ceiling high-efficiency filters prevent dust contamination during the wet primer application.

Technical Specification Sheet

Parameter Series B: Infrared Curing Station
Catalog Code CT-PREP-IR
Inner Size 6900 x 3900 x 2700 mm
Airflow 15,000 m3/h
Fan Power 1 x 4kW Intake + 1 x 4kW Exhaust
Basement 300mm (Full Grating Upgrade)
Wall Type Rear EPS Panel + PVC Curtains
Heating Overhead IR Lamps (Optional: 10-20kW)
Total Power Approx. 36 kW (with IR on)

Detailed Product Description


Optimized Workflow for Body Shops The CT-PREP-200 is the workhorse of the body shop. By performing sanding, masking, and priming in this dedicated station, you prevent dust contamination in your main spray booth. This dramatically improves the quality of your final topcoat.

Airflow Design (Semi-Downdraft) Air is drawn from the workshop through the top plenum filters (cleaning the air), moves downwards over the vehicle to capture sanding dust and primer overspray, and is exhausted through the rear wall or floor pit. This ensures the technician breathes clean air.

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps 0
Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps 1
Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps 2
Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps 3
Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps 4
Infrared (IR) Heated Preparation Bay For Fast Primer Curing Integrates Overhead Short-Wave Infrared Lamps 5
