Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting

MOQ: 1
Price: USD5000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-PR-A3
NAME:
Preparation Station
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

Pre Station with PVC curtains

,

Pre Station with LED lighting

,

Pre Station with centrifugal fans

Product Description

Semi-Enclosed Metal Wall Sanding Station for Superior Dust Containment

The CoatTech Semi-Enclosed Station replaces the side PVC curtains with rigid EPS or Rockwool wall panels. This "Cabin Style" prep station offers better durability and stronger airflow containment than curtain models, keeping the rest of your shop cleaner and reducing noise levels.

Core Features

  • Rigid Walls: Side walls constructed from 50mm EPS tongue-and-groove panels (0.426mm steel skin) for a professional look and easy cleaning.

  • Front Curtain Only: Only the front entrance uses a PVC curtain, maximizing structural stability and light reflection.

  • Enhanced Lighting: The rigid side walls allow for the installation of additional waist-level LED lights for better visibility.

  • Positive Pressure: Better sealing allows the fans to create slight positive pressure, keeping shop dust out.

Technical Specification Sheet

Parameter Series D: Metal Wall Cabin
Catalog Code CT-PREP-WALL
Inner Size 6900 x 3900 x 2700 mm
Airflow 15,000 m3/h
Fan Power 1 x 4kW Intake + 1 x 4kW Exhaust
Basement 300mm (2 rows Plate / 3 rows Grid)
Wall Type 3 Sides Metal Panel + Front Curtain
Heating None (Optional Upgrade)
Total Power 16 kW

Detailed Product Description


Optimized Workflow for Body Shops The CT-PREP-200 is the workhorse of the body shop. By performing sanding, masking, and priming in this dedicated station, you prevent dust contamination in your main spray booth. This dramatically improves the quality of your final topcoat.

Airflow Design (Semi-Downdraft) Air is drawn from the workshop through the top plenum filters (cleaning the air), moves downwards over the vehicle to capture sanding dust and primer overspray, and is exhausted through the rear wall or floor pit. This ensures the technician breathes clean air.

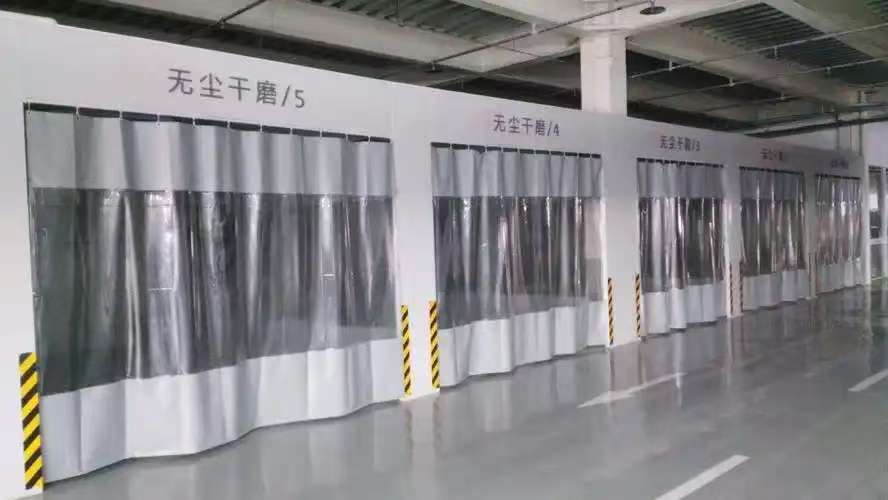

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting 0
Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting 1
Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting 2
Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting 3
Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting 4
Pre Station coattech standard prep station with rear eps panel 3 side pvc curtains dual centrifugal fans and shadowless led lighting 5



Tags:

bus pre station,

customizable paint prep station,

truck pre station
