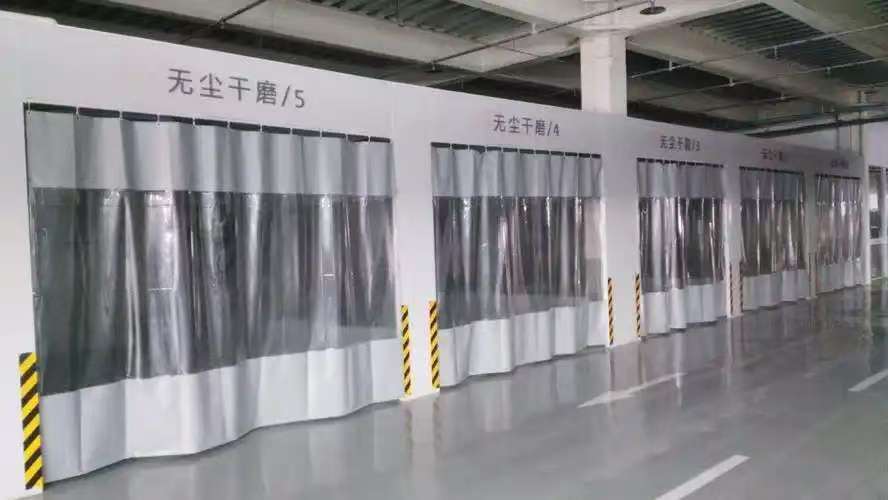

CoatTech Drive-Through Flow-Line Preparation Station Curtains On Both The Front And Rear Vehicles To Enter From One Side And Exit The Other

CoatTech Drive-Through Flow-Line Preparation Station Curtains On Both The Front And Rear Vehicles To Enter From One Side And Exit The Other

Introduction:

Optimize your workshop traffic flow with the CT-Prep A8. This "Drive-Through" model features curtains on both the front and rear, allowing vehicles to enter from one side and exit the other. It utilizes side-wall extraction columns instead of a rear plenum to keep the exit path clear. This efficient layout improves working efficiency in busy assembly lines.

Technical Specification Sheet

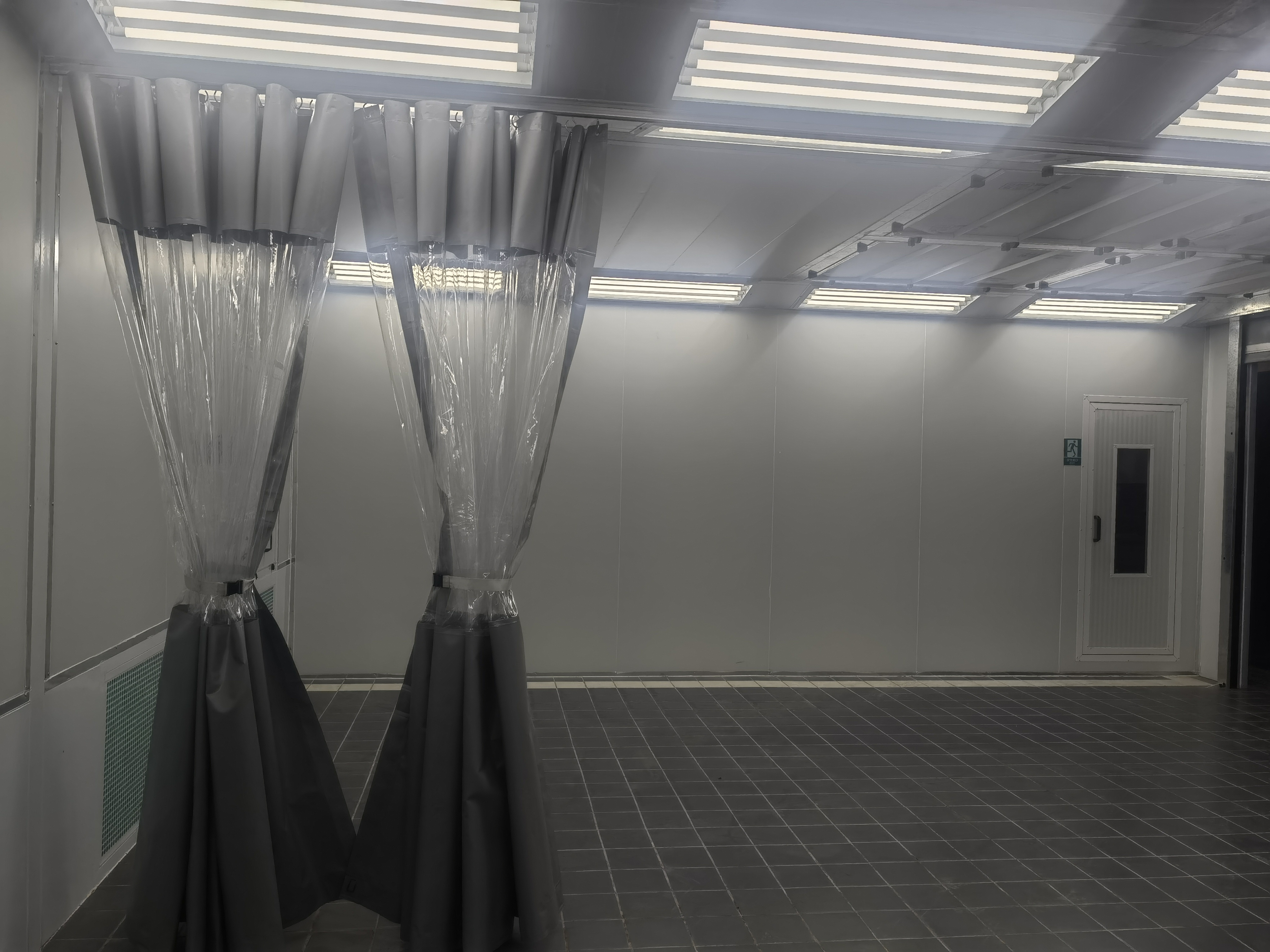

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

• Convenience: Easily slide curtains open to move cars in and out quickly.

• Visibility: Transparent windows allow the manager to monitor work progress.

• Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
