CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains

MOQ: 1
Price: USD1000-USD6000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-Prep A13
NAME:
CT-Prep A13
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

flush floor automotive prep bay

,

pit-mounted pre station with ground extraction

,

electric roll-up curtains prep bay

Product Description

CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains



Introduction:



Designed for facilities requiring a seamless floor, this unit uses a pit installation to tackle space constraint problems. The intake and exhaust systems are integrated into civil work trenches, allowing vehicles to enter without ramps.



Technical Specification Sheet



Model Inner Size (mm) Outer Size (mm) Total Airflow Heating Total Power Application
CT-Prep A13 7000×4000×2700 7100×5500×3100 20,000 m³/h None 11.0 kW Luxury Cars / Low Chassis
System Component Description Optional
Cabin System Enclosure Rear Wall: EPS; Sides: PVC Curtains (Electric Optional) Electric Roll-Up Curtains

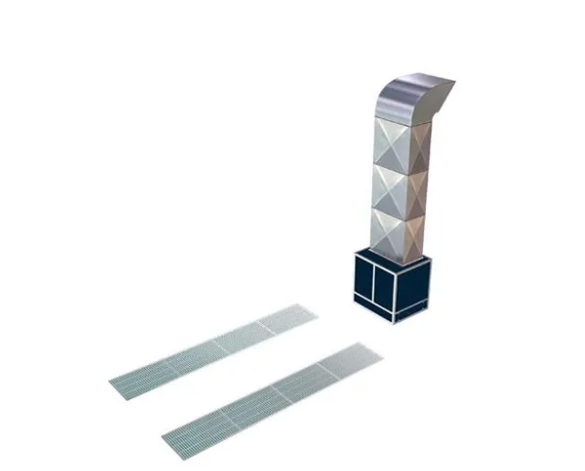

  Basement In-Ground Pit Installation (Flush Floor) -

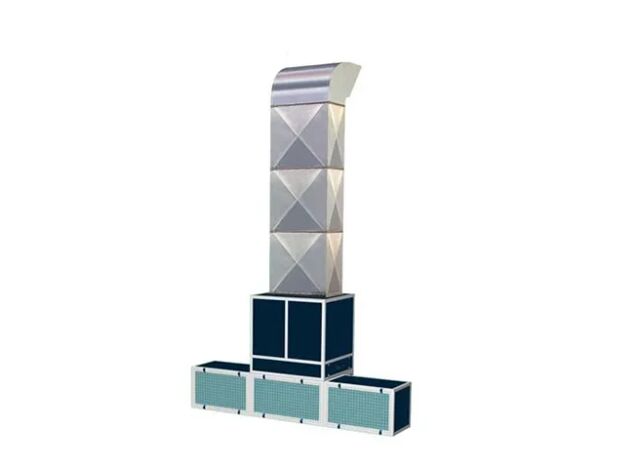

Air System Intake Fan 2 units × 4.0 kW Centrifugal Fans -
Air System Exhaust Fan 1 unit × 5.5 kW Centrifugal Fan -
Filtration Stages 4-Stage: Pre-filter, Ceiling, Floor, Exhaust Carbon -
Lighting Ceiling Light 40 Units × 18W LED Tubes -
Control Damper Electric Belimo Actuators for Air Balance Frequency Inverter (VFD)

CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 0CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 1CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 2CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 3CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 4CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 5

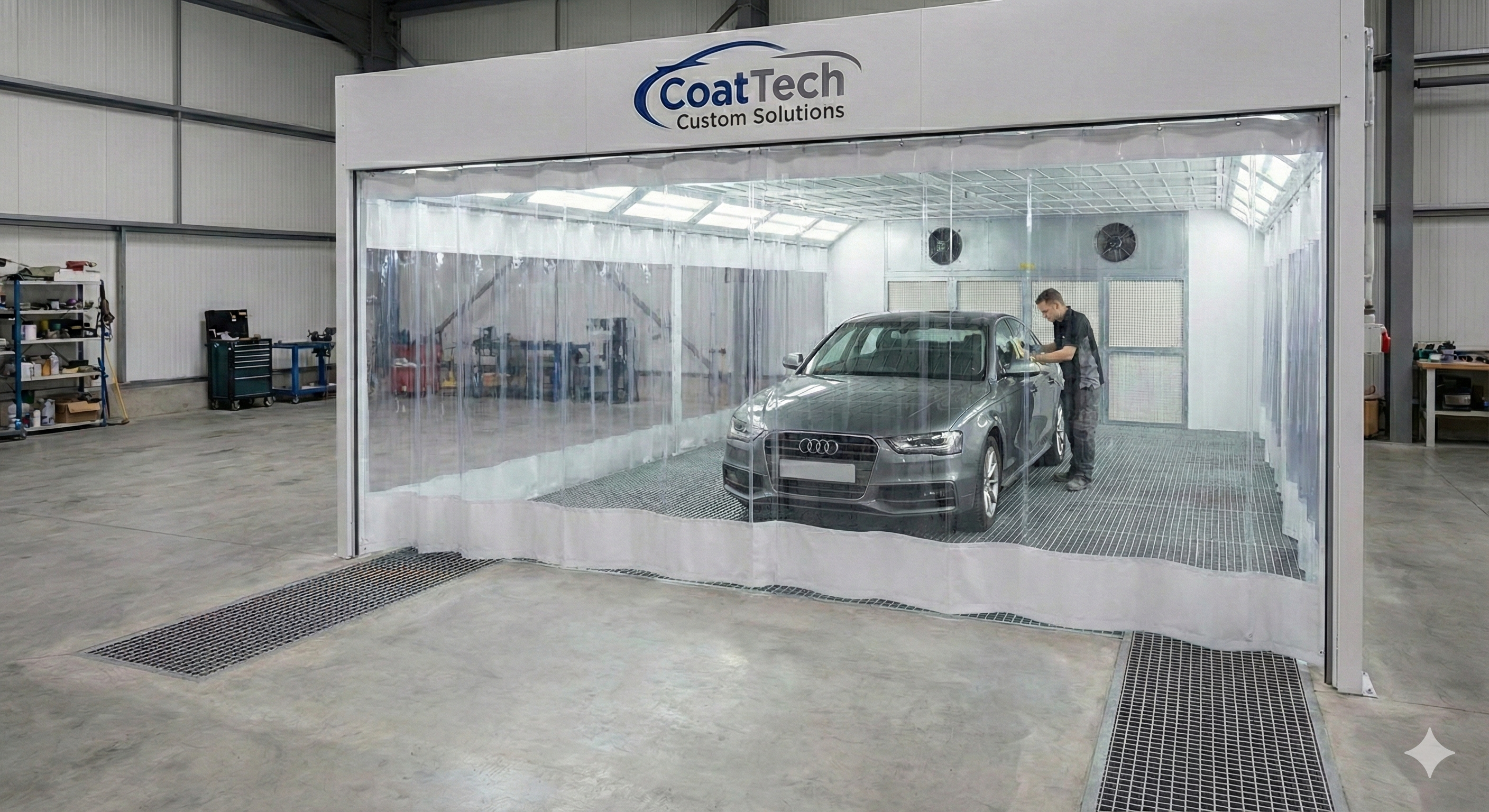

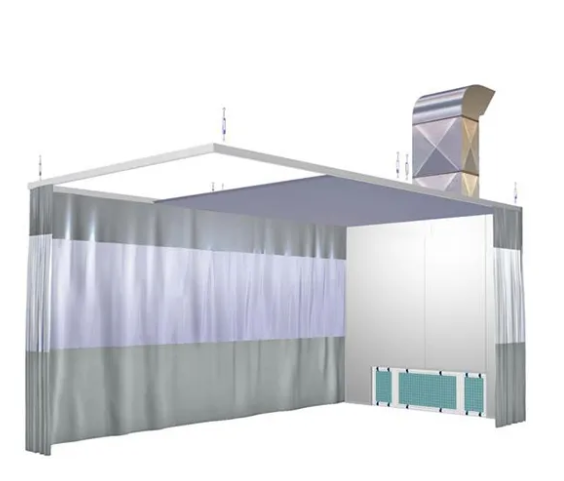

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 6
CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 7
CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 8
CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 9
CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 10
CoatTech Flush Floor Pit-Mounted Automotive Prep Bay with Integrated Ground Extraction and Electric Roll-Up Curtains 11
