CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes

MOQ: 1
Price: USD1000-USD6000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-Prep A15
NAME:
CT-Prep A15
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

Infrared paint curing station

,

Short-wave IR heater cassettes

,

Overhead rail paint preparation system

Product Description

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes



Introduction:

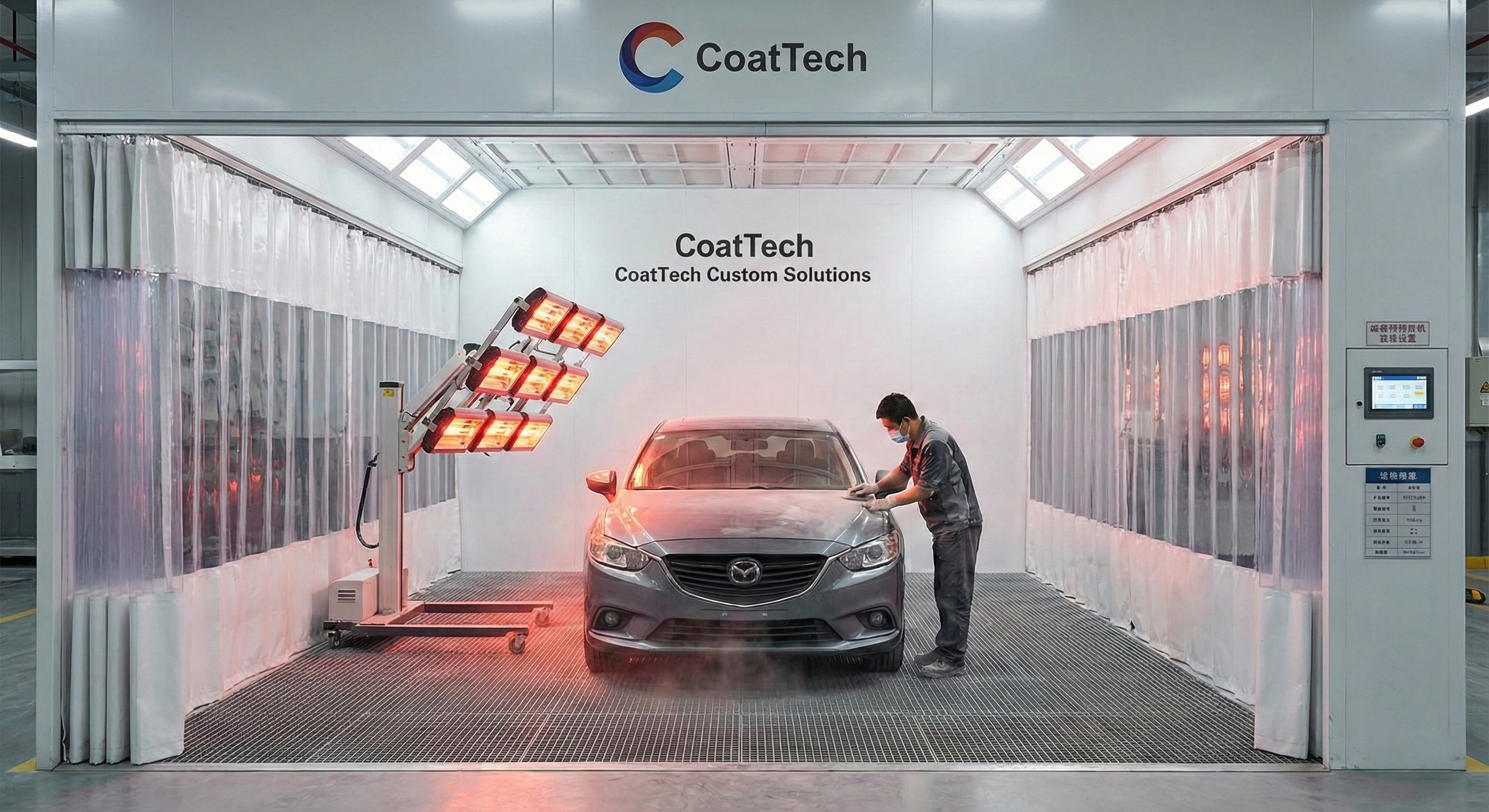

A multifunction prep station that combines sanding and curing capabilities. The integrated overhead infrared heaters allow for rapid curing of primers and putty without moving the vehicle.



Technical Specification Sheet



Model Inner Size (mm) Outer Size (mm) Total Airflow Heating Total Power Application
CT-Prep A5 6900×3900×2700 7000×5500×3400 18,000 m³/h Infrared ~20 kW Smart Repair / Fast Curing
System Component Description Optional
Heating IR System 3-Axis Movable Overhead Rail + 3 Curing Cassettes 6 Cassettes
  Emitters Short-Wave Ruby Red Halogen Lamps Gold-Plated Emitters
Cabin System Rear Wall Rockwool Insulated Panel (Fireproof) -
  Basement Full Grating Floor (Maximum Cleanliness) -
Air System Circulation 18,000 m³/h with Variable Speed Drive -
Safety Protection Distance Sensor, Overheat Protection -
Control Separation Separate Control Box for IR Lamps -

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 0CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 1CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 2CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 3CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 4CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 5

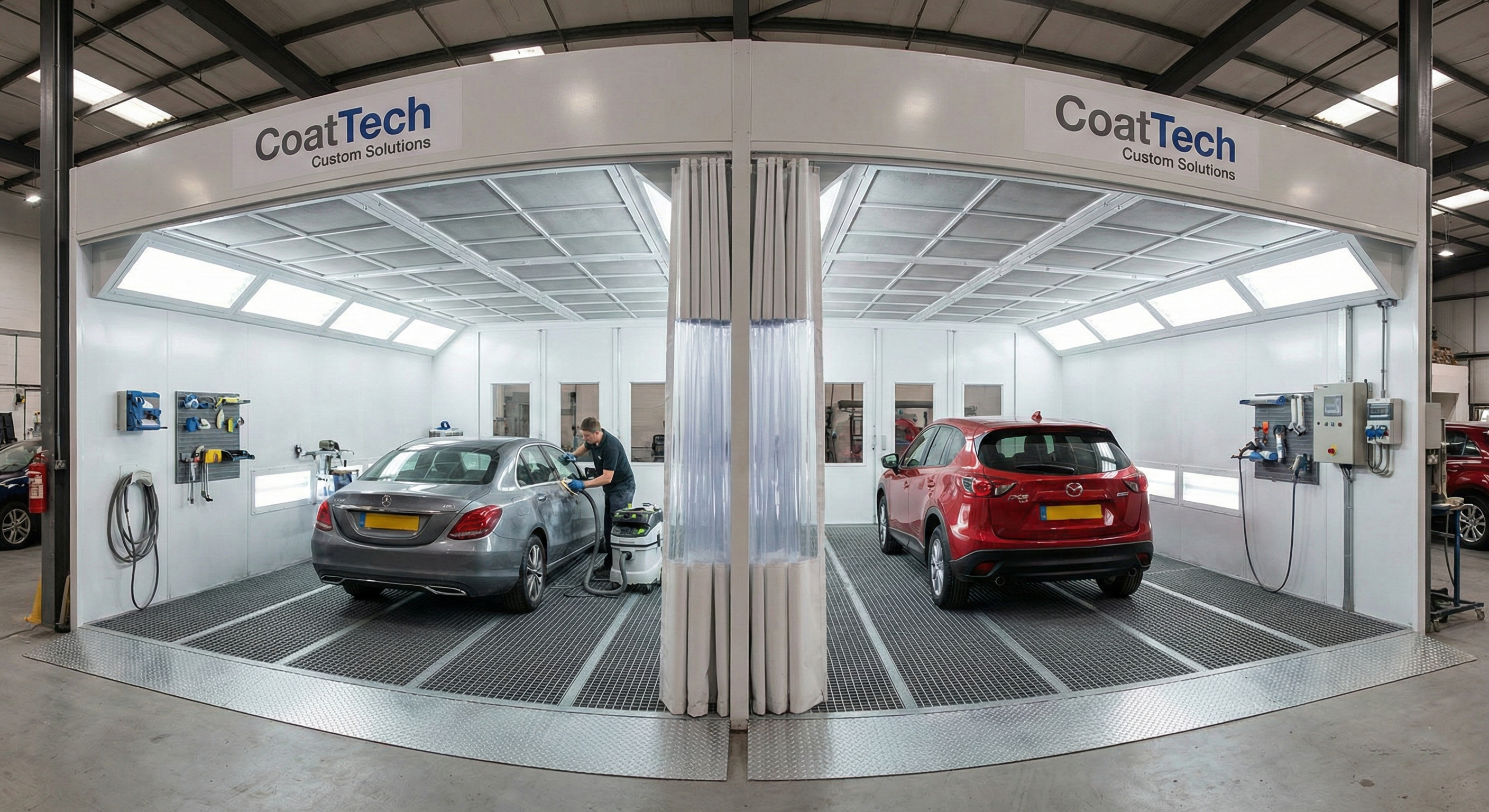

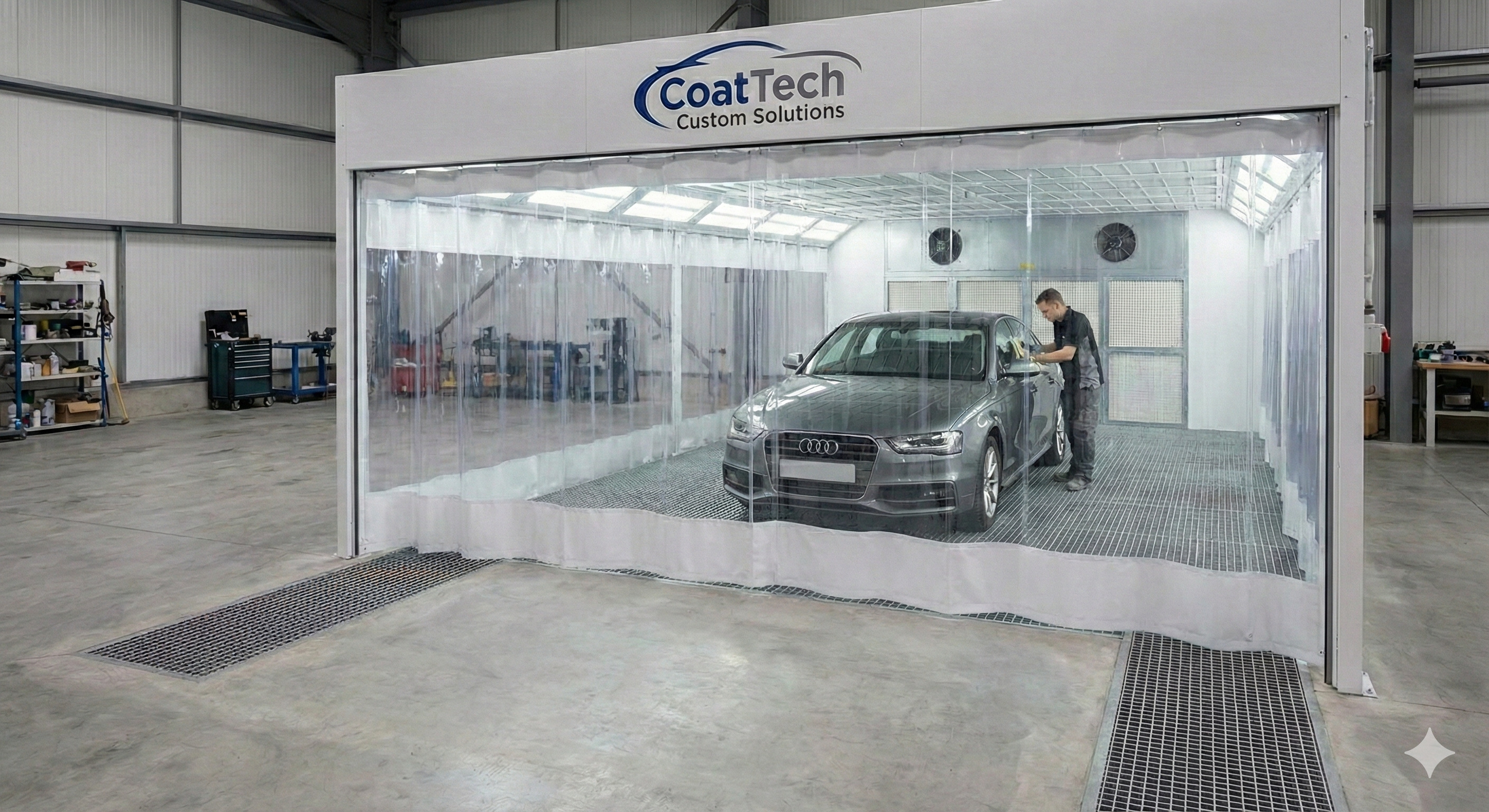

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 6
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 7
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 8
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 9
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 10
CoatTech Infrared Paint Curing Preparation Station with Overhead Rail System and Short-Wave IR Heater Cassettes 11
If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
