CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control

MOQ: 1
Price: USD1000-USD6000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
CT-Prep A17
NAME:
CT-Prep A17
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

dual-bay automotive prep station

,

side-by-side preparation zone with divider

,

independent fan control prep station

Product Description

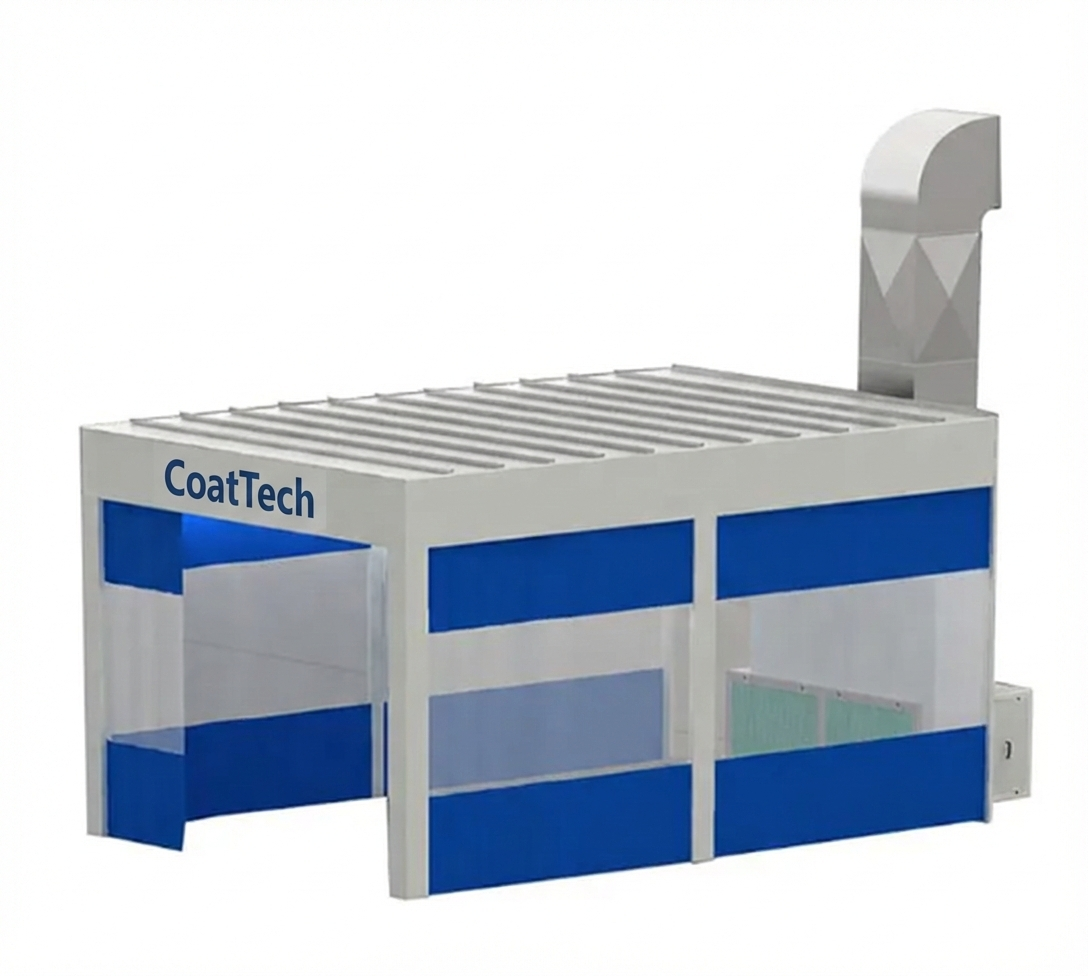

CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control



Introduction:



This large-scale solution can meet the needs of repairing multiple vehicle bodies simultaneously. It features a side-by-side configuration with a central divider, allowing two operators to work independently.



Technical Specification Sheet



Model Inner Size (mm) Outer Size (mm) Total Airflow Heating Total Power Application
CT-Prep A7 6900×7800×2700 7000×9300×3400 36,000 m³/h None 25 kW High Volume Collision Center
System Component Description Optional
Structure Configuration Double Bay (Side-by-Side) Triple Bay
  Divider Manual Sliding PVC Curtain Electric Roll-Up Curtain
Air System Fan Units 2 Sets × (5.5kW Intake + 5.5kW Exhaust) -
  Control Independent Control for Bay 1 & Bay 2 -

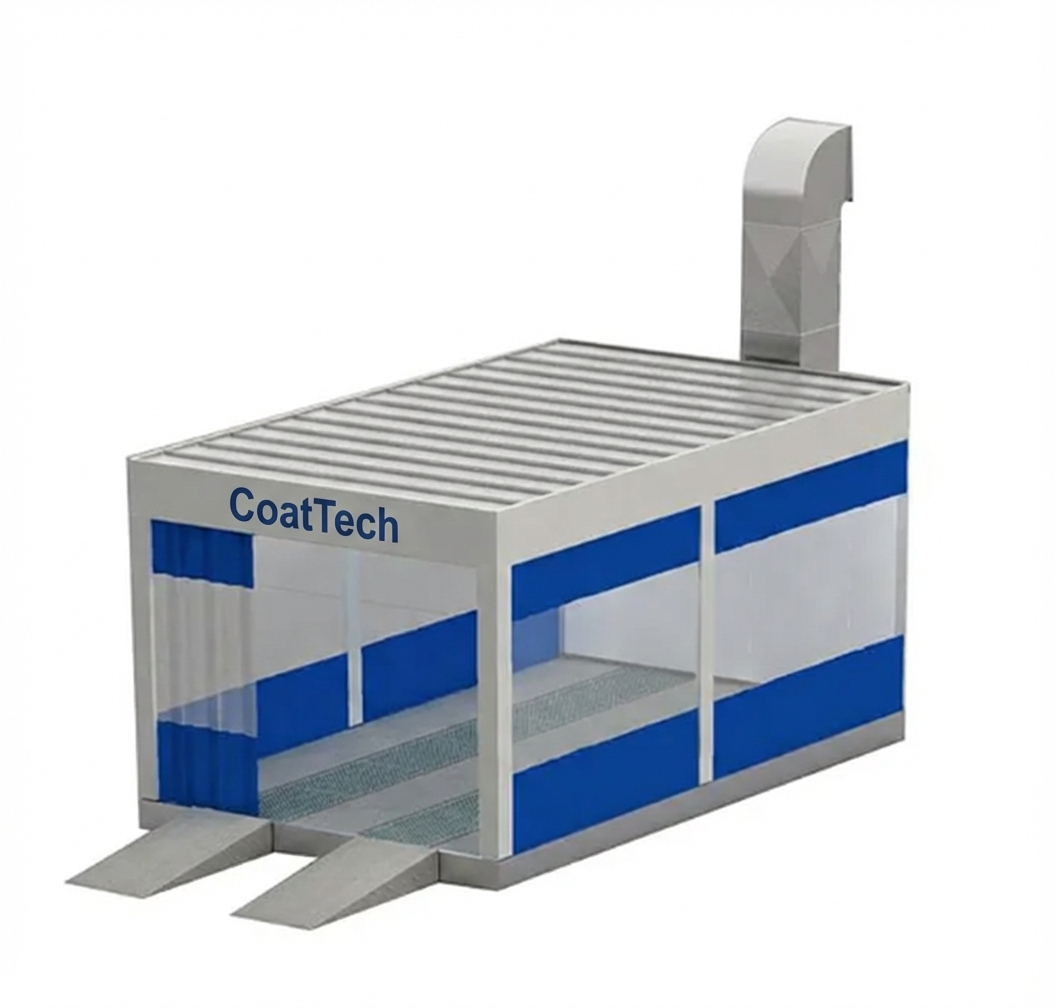

Basement Layout Dual 300mm Raised Base (4 Ramps) -
Lighting Quantity 64 Units × 18W LED Tubes -

CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 0CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 1CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 2CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 3CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 4CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 5

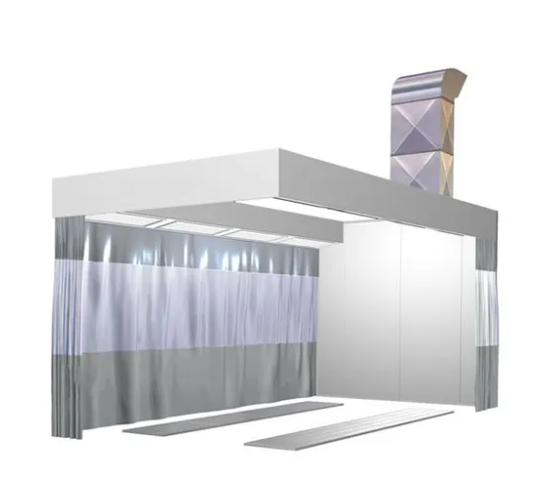

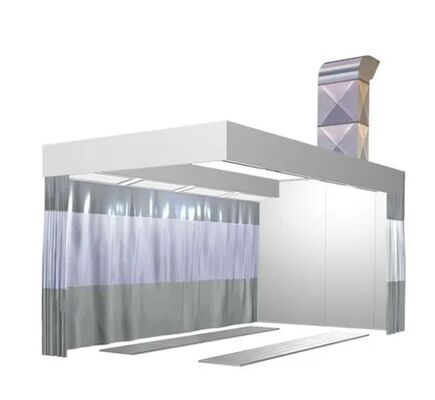

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.






FAQ


Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 6
CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 7
CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 8
CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 9
CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 10
CoatTech Dual-Bay Side-by-Side Automotive Preparation Zone with Central Divider Curtain and Independent Fan Control 11
If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
