Electric Telescopic Retractable Canopy System (Max 25m Span) | CoatTech
  • name
  • name
  • name

Electric Telescopic Retractable Canopy System (Max 25m Span) | CoatTech

MOQ: 1
Price: USD3000-USD12000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
RB-10
Main Door:
Fold Style Or Electric Rolling Style
Using Energy:
Diesel,gas,steam,electric Or Other Option
Energy Sources:
Water, Electricity,gas
Usage:
Automotive Painting, Furniture Painting, Industrial Painting
Noise Level:
≤80dB
Coating:
10-50um
Material:
Steel
Power Supply:
380V/50HZ/3Ph Or Other Option
Heating System:
Riello Brand Burner
Application:
Bus/truck Or Other Metallic Products
Product Description

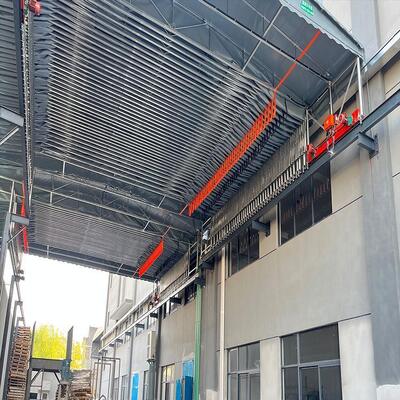

 CoatTech Industrial Electric Telescopic Retractable Canopy System


The CoatTech Heavy-Duty Electric Telescopic Retractable Canopy is an automated, high-capacity shelter engineered for large-scale outdoor warehousing, industrial assembly, and environmental isolation. Designed with a high-strength scissor-truss structural frame and an integrated motorized drive system, this canopy extends and retracts smoothly to provide weather protection or complete overhead access for crane operations.


Key Features & Advantages



1.Automated Motorized Drive & Safety Controls: Driven by heavy-duty electric motors equipped with industrial limit switches and control boxes for precise, synchronized expansion, retraction, and automatic position stopping.


2.Extra-Large Clear Span (Up to 25m): Capable of spanning up to 25 meters wide without internal support columns, maximizing usable floor area for large machinery and heavy inventory.


3.Modular 1.2m Section Spacing: Built with a standardized 1.2-meter bay structure, allowing flexible and fully customizable total expansion lengths tailored to facility layouts.


4.High-Rigidity Scissor Truss Framework: Interlocking cross-braced steel structure engineered for high structural stability, wind resistance, and durability under repeated operational cycles.


5.Unobstructed Overhead Crane Access: Retracts into a compact footprint to open up the work area, allowing gantry or mobile cranes to load heavy materials directly from above.


Technical Specification Sheet


Parameter Specification
Product Series CoatTech Electric Telescopic Canopy Series
Structure Type Motorized Accordion Scissor-Truss Framework
Maximum Clear Span Up to 25.0 meters (Column-Free)
Modular Bay Spacing 1.2 meters per section (Customizable Total Length)
Clear Height Customized to site requirements
Drive & Control System Synchronized Electric Motor Drive with Automated Limit Switches
Structural Frame Material High-Strength Structural Steel (Galvanized / Anti-Corrosion Coated)
Covering Material Options Heavy-Duty Double PVC-Coated Fabric (Flame-Retardant, Waterproof, UV-Resistant)
Operation Mechanism Motorized Rail-Guided Telescopic Travel
Installation Site Outdoor Industrial Yards, Logistics Hubs, Manufacturing Plants
Shipping & Logistics Modular Knocked-Down (KD) Components for Ocean Container Transport

Target Industrial Applications


1.Outdoor Industrial Warehousing: Temporary or permanent shelter for raw steel, piping, timber, and bulk inventory.


2.Heavy Equipment & Shipyard Assembly: Enclosing large fabrications while maintaining top-loading capabilities via overhead cranes.


3.Environmental & Surface Preparation Enclosures: Protecting grinding, welding, or assembly operations from rain, wind, and direct sunlight.


Electric Telescopic Retractable Canopy System (Max 25m Span) | CoatTech


Contact Us Today Ready to optimize your heavy equipment coating process?

Contact Tim, Overseas Marketing & Sales Manager, to discuss your custom spray booth requirements and secure a technical consultation.



Electric Telescopic Retractable Canopy System (Max 25m Span) | CoatTech
