Down-Draft Spray Paint Booth with Integrated Man Lift & Curing System

Product Overview

CoatTech's Down-Draft Spray Paint Booth (Model CT-DDSB) is a complete, turnkey industrial coating solution engineered for metal fabrication shops, automotive refinishers, machinery manufacturers and heavy-equipment workshops. Combining a spacious 20 × 20 × 10 m spray enclosure, an integrated paint-booth man lift for safe high-reach spraying, and a diesel / infrared curing system, it delivers professional-grade paint finish, consistent drying and a clean, well-lit, safe working environment — all in one system.

Designed and manufactured in our Foshan facility and trusted by customers across Singapore, Malaysia, Indonesia, Vietnam, the Middle East and beyond, the CT-DDSB is fully customizable to your workshop layout, production volume and local climate conditions.

Key Features & Benefits

Down-Draft Airflow & Multi-Stage Filtration — captures overspray at floor level; G3 pre-filter + F5 ceiling filter + activated-carbon exhaust keep the cabin clean and protect operators.

Integrated Man Lift Platform — electric scissor / boom lift built into the booth lets painters reach up to 10 m safely, eliminating ladders and scaffolding.

Durable Galvanized Steel Structure — H-beam main frame with arc / vertical / diagonal bracing; hot-dip galvanized tube (frame spacing < 1.2 m) for long service life, even outdoors.

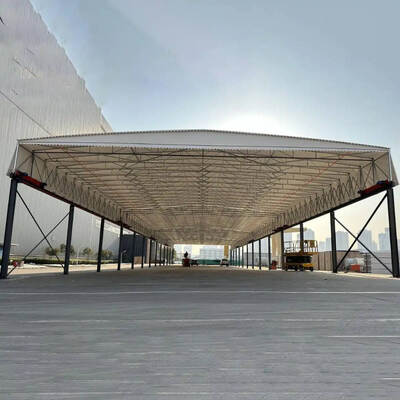

Retractable Telescopic Canopy — 4 rows of horizontal telescopic frames extend to 20 m, with weatherproof fabric curtain; ideal for large or irregular workpieces.

Precision Curing System — diesel / IR heating unit with PLC temperature control (25–60 °C adjustable) for fast, uniform curing and shorter cycle times.

Explosion-Proof & CE-Considered Design — Schneider / Chint electrical components, overload & phase-loss protection, LED explosion-proof lighting (≥ 800 lux).

Technical Specifications

Scope of Supply

The complete system is delivered as five (5) integrated packages, ready for on-site assembly by the CoatTech engineering team:

Applications

Metal fabrication & steel structure painting (beams, frames, welded parts)

Automotive & commercial vehicle body repair and refinishing

Machinery, agricultural equipment and construction equipment coating

Furniture, aluminum profiles and industrial product finishing

Any workshop requiring a clean, controlled, high-ceiling spray environment

Why It Fits Singapore Projects

Singapore's tropical, high-humidity climate and strict workplace-safety standards demand a spray booth that is weather-resistant, well-ventilated and compliant. The CT-DDSB is purpose-built for these conditions:

Rock-wool insulated panels resist heat and heavy rain; down-draft exhaust handles humidity and keeps the cabin dry.

Integrated man lift reduces working-at-height risks and meets Singapore safety best practices.

Multi-stage filtration controls emissions and supports cleaner, more sustainable operations.

Compact yet spacious design suits land-constrained workshops common in the region.

CoatTech can ship FOB from our China factory and coordinate sea freight to Singapore, with installation and commissioning support on arrival.

Contact Us Today Ready to optimize your heavy equipment coating process?

Contact Tim, Overseas Marketing & Sales Manager, to discuss your custom spray booth requirements and secure a technical consultation.
