Retractable Telescopic Industrial Spray Booth Ultimate Space-Saving Solution For Large Shaped Workpieces

MOQ: 1
Price: USD5000-USD10000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
RT-10
NAME:
Retractable Tent
Power Supply::
380V/50HZ/3Ph Or Other Option
Using Energy::
Diesel,gas,steam,electric Or Other Option
Main Door::
Fold Style Or Electric Rolling Style
Motor::
Chinese Brand Or Import Brand
Control Sytem::
Switch Style Or PLC Touch Screen Control
Wall::
Metal Sheld,EPS,Rock Wool Of PU For Option
Color::
White Or Other Option
Application::
Bus/truck Or Other Metallic Products
Energy Sources::
Water, Electricity,gas
Coating:
10-50um
Dimention::
As Require
Highlight:

retractable industrial spray booth

,

telescopic spray booth for large workpieces

,

space-saving retractable tent

Product Description

Overview:

The CoatTech Retractable Booth is the ultimate space-saving solution for large, heavy, or awkwardly shaped workpieces. Designed with a mobile frame and PVC curtains, the booth extends to enclose the product for painting and retracts to 20% of its length when not in use, allowing overhead cranes to transport heavy loads directly into the work area.



Core Features:

  • Mobile Structure: Double-drive explosion-proof motors move the frame smoothly along heavy-duty ground tracks.

  • Crane Friendly: Solves the issue of moving heavy workpieces (10+ tons) into a closed booth; simply move the booth around the workpiece.

  • Safety Interlocks: Equipped with travel limit switches, warning alarms during movement, and emergency stops.

  • Flexible Exhaust: Can be paired with a dry filter wall or water curtain box depending on paint type.

Technical Specifications:

  • Structure: Galvanized square steel tubing with scissor-style extension mechanism.

  • Curtain Material: High-strength, flame-retardant, anti-static PVC industrial canvas.

  • Drive Speed: $4 - 6$ meters/minute.

  • Control System: Remote control pendant for easy extension/retraction by a single operator.

  • Size Capability: Custom widths up to 15m; Lengths up to 30m+.

Applications:

Shipbuilding parts, wind turbine blades, train carriages, steel structures, and heavy machinery (excavators/cranes).



Parameter Standard Model (CT-RET-12M) Heavy Duty Model (CT-RET-18M) Customized Options
Overall Dimensions L12m $times$ W5m $times$ H5m L18m $times$ W6m $times$ H6m Length: 6m - 40m+
Retracted Length ~2.5m (Saving 79% space) ~3.8m (Saving 78% space) Based on extension ratio
Frame Structure Galvanized Square Steel (50x50mm / 40x40mm) Heavy Gauge Steel Tubing with Scissor bracing Stainless Steel optional
Curtain Material 0.6mm PVC Fabric 0.9mm Heavy Duty PVC Fireproof / Anti-static / Clear Windows
Curtain Color White / Blue / Grey White / Blue / Grey Custom RAL Colors
Extension Speed 4 - 6 meters/minute 4 - 6 meters/minute Variable Speed Drive (VFD)
Drive System Dual Explosion-Proof Motors (0.75kW x 2) Dual Heavy-Duty Motors (1.5kW x 2) Chain Drive / Roller Drive
Lighting System LED Explosion-Proof Lights (>800 Lux) LED Explosion-Proof Lights (>1000 Lux) Side Lighting optional
Filtration Type Dry Fiberglass Filter / Paper Filter Water Curtain or Dry Filter Wall Activated Carbon (Odor removal)
Control System Relay Control Box + Remote Pendant PLC Control + Remote Pendant HMI Touch Screen
Safety Features Emergency Stop, Travel Limit Switches, Alarm Bell Motion Sensors, Anti-collision bumpers Gas detection sensors
Power Supply 380V / 50Hz / 3Phase 380V / 50Hz / 3Phase Compatible with 220V/415V/480V
Warranty 12 Months 24 Months Extended Service Plans

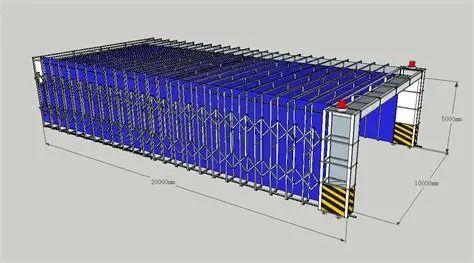

Retractable Telescopic Industrial Spray Booth Ultimate Space-Saving Solution For Large Shaped Workpieces 0

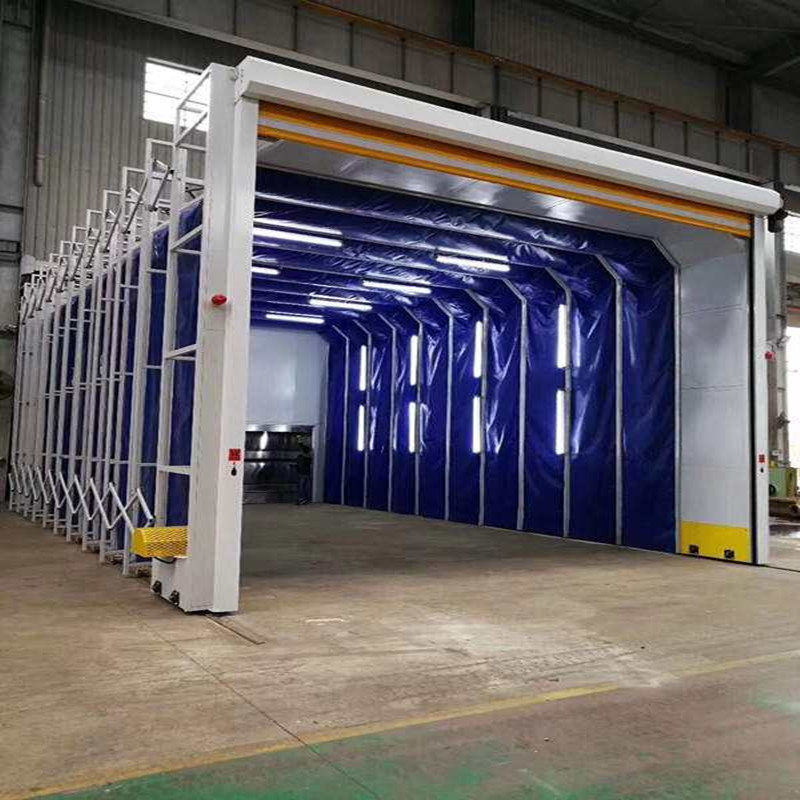

Retractable Telescopic Industrial Spray Booth Ultimate Space-Saving Solution For Large Shaped Workpieces 1

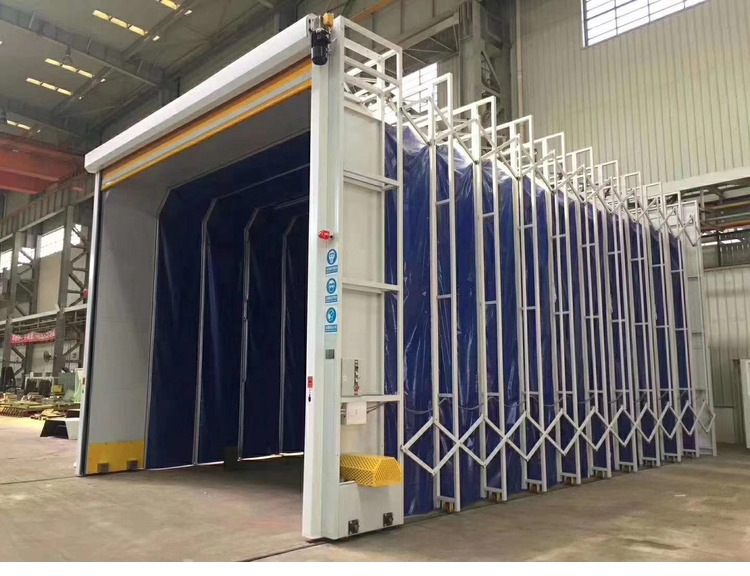

Retractable Telescopic Industrial Spray Booth Ultimate Space-Saving Solution For Large Shaped Workpieces 2
