Space-Saving Retractable Spray Booth for Compact Factory Layouts
  • name
  • name

Space-Saving Retractable Spray Booth for Compact Factory Layouts

MOQ: 1
Price: USD3000-USD12000/SET
Standard Packaging: With regular Film and Carton
Delivery Period: 15 DAYS After Deposit
Payment Method: T/T
Supply Capacity: 30SET/MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CoatTech
Certification
CE
Model Number
RB-1
Power Supply:
380V/50HZ/3Ph Or Other Option
Using Energy:
Diesel,gas,steam,electric Or Other Option
Main Door:
Fold Style Or Electric Rolling Style
Application:
Bus/truck Or Other Metallic Products
Energy Sources:
Water, Electricity,gas
Coating:
10-50um
Noise Level:
≤80dB
Material:
Steel
Usage:
Automotive Painting, Furniture Painting, Industrial Painting
Heating System:
Riello Brand Burner
Product Description

Space-Saving Retractable Spray Booth for Compact Factory Layouts


Maximize Your Workshop Floor Space with Overhead Loading Capabilities

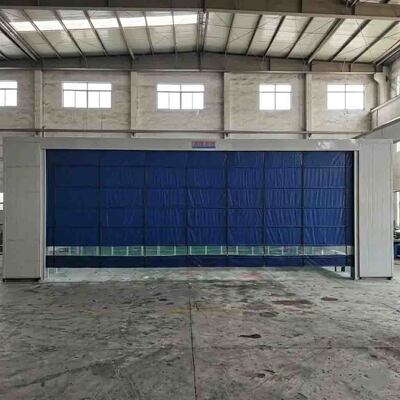

For heavy equipment manufacturers with limited floor space, traditional fixed spray booths become a structural bottleneck. This case demonstrates our space-saving retractable spray booth solution. When painting operations are idle, the high-strength PVC anti-static fabric structure folds seamlessly against the exhaust wall. This folded state instantly reclaims valuable factory real estate, allowing overhead cranes to transport heavy workpieces or operate assembly tasks without obstruction.


The top-down layout illustrates the optimized footprint of the complete system, showing how the dual-track mechanism and localized centrifugal exhaust system are engineered to fit precisely into tight industrial corners while maintaining maximum airflow efficiency.


Core Advantages:


1.Zero Floor Obstruction: Allows standard factory cranes to load massive components directly onto the painting zone before extending the booth.


2.Flexible Production Flow: Instantly converts a painting zone back into a general assembly or material handling area.


3.Streamlined Layout: The compact integration of the ducting and filtration system minimizes the structural footprint.


Technical Specifications


Parameter Specification
System Configuration Space-Saving Retractable Paint Booth
Operation Mode Motorized Telescopic Expansion / Retraction
Structural Frame Anti-Corrosion Galvanized Steel Square Tube
Enclosure Material 0.5mm - 0.8mm Industrial Flame-Retardant PVC
Track System Heavy-Duty Surface-Mounted Steel Rail
Folding Ratio (Approx.) 1:4 to 1:5 (Retracted vs. Extended Length)
Loading Method Compatibility Overhead Crane, Heavy Forklift, Rail Cart


Optimize Your Workshop Today


Do not let bulky, fixed painting infrastructure limit your factory's potential.

CoatTech specializes in designing intelligent, adaptable coating equipment that enhances productivity without compromising on quality or safety.


The Yutube Link video for your reference


https://youtube.com/shorts/dMscEUB6Iac


Space-Saving Retractable Spray Booth for Compact Factory Layouts 0


Contact Us Today Ready to optimize your heavy equipment coating process?

Contact Tim, Overseas Marketing & Sales Manager, to discuss your custom spray booth requirements and secure a technical consultation.



Space-Saving Retractable Spray Booth for Compact Factory Layouts 1
