Retractable Telescopic Industrial Spray Booth: Mobile Painting Room for Heavy Machinery

MOQ:	1
Price:	USD5000-USD10000/SET
Standard Packaging:	With regular Film and Carton
Delivery Period:	15 DAYS After Deposit
Payment Method:	T/T
Supply Capacity:	30SET/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CoatTech

Certification

Model Number

RT-12

NAME:

Retractable Tent

Power Supply::

380V/50HZ/3Ph Or Other Option

Using Energy::

Diesel,gas,steam,electric Or Other Option

Main Door::

Fold Style Or Electric Rolling Style

Motor::

Chinese Brand Or Import Brand

Control Sytem::

Switch Style Or PLC Touch Screen Control

Wall::

Metal Sheld,EPS,Rock Wool Of PU For Option

Color::

White Or Other Option

Application::

Bus/truck Or Other Metallic Products

Energy Sources::

Water, Electricity,gas

Coating:

10-50um

Dimention::

As Require

Highlight:

retractable industrial spray booth

mobile painting room for machinery

telescopic spray booth with warranty

Product Description

Retractable Telescopic Industrial Spray Booth: Mobile Painting Room for Heavy Machinery

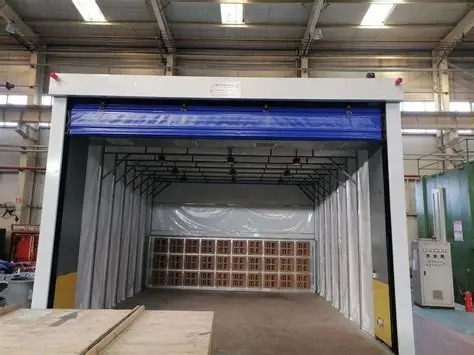

The CoatTech Retractable Booth is the ultimate space-saving solution for large, heavy, or awkwardly shaped workpieces. Designed with a mobile frame and PVC curtains, the booth extends to enclose the product for painting and retracts to 20% of its length when not in use, allowing overhead cranes to transport heavy loads directly into the work area.

Overview

The CoatTech Retractable Booth is a flexible, space-saving solution designed for large-scale industrial painting. Unlike fixed booths, this telescopic structure retracts to just 20% of its length when not in use. This unique design allows overhead cranes to place heavy loads (10+ tons) directly into the workspace, solving the logistical challenges of moving massive components like steel beams or heavy machinery.

Core Features

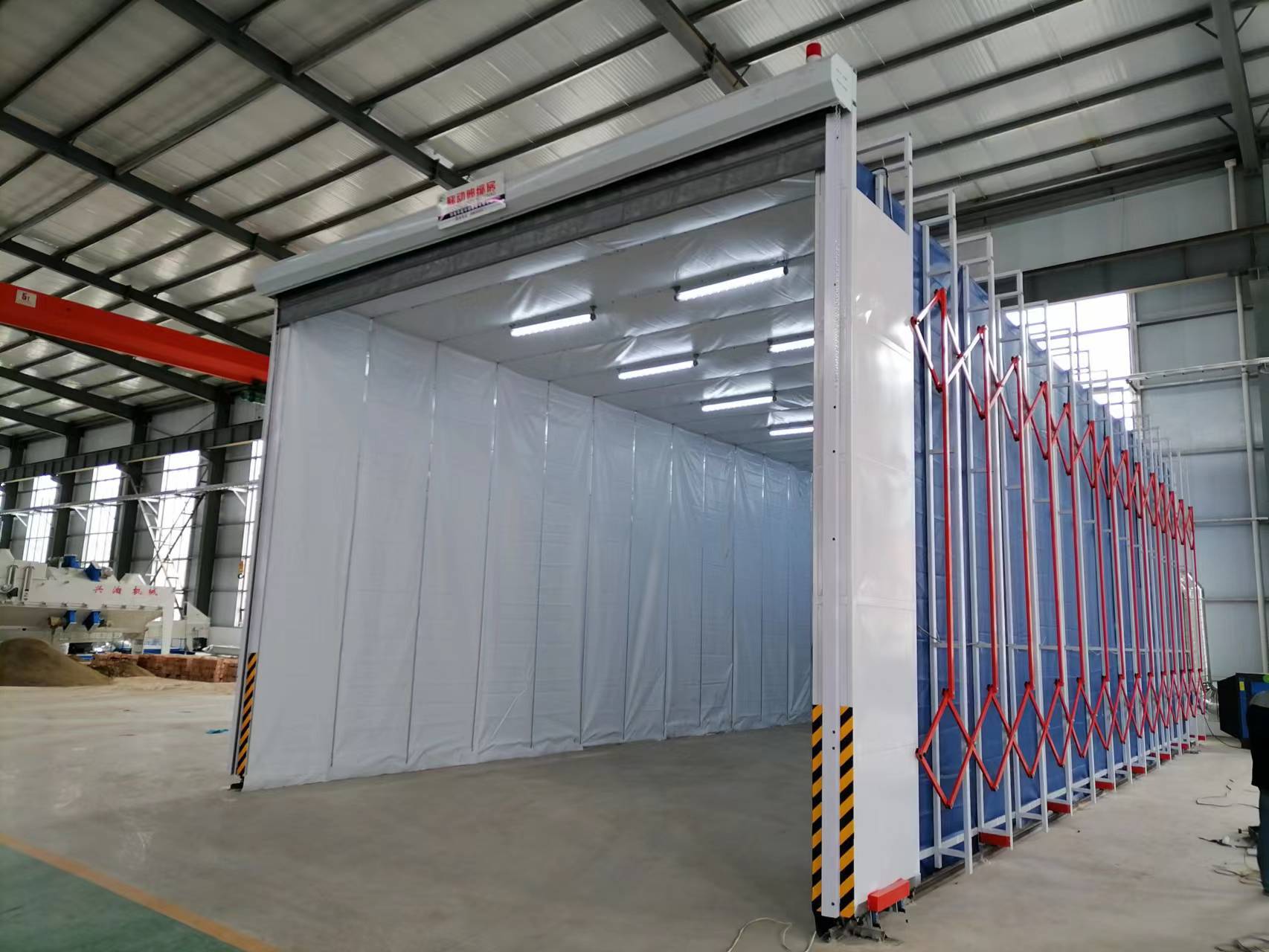

Mobile Telescopic Design: Double-drive explosion-proof motors move the heavy-duty frame smoothly along ground tracks.
Crane Accessibility: Eliminates the need for difficult forklifting; simply retract the booth, crane the part in, and extend the booth around it.
Operational Safety: Standard features include travel limit switches, audible motion alarms, and emergency stops to ensure operator safety during movement.
Flexible Exhaust Options: Compatible with Dry Filter Walls for standard paint or Water Curtain Boxes for high-volume production.

Technical Specification Sheet

Parameter	Standard Model (CT-RET-12M)	Heavy Duty Model (CT-RET-18M)	Customized Options
Dimensions (LxWxH)	12m x 5m x 5m	18m x 6m x 6m	Length: 6m up to 40m+
Retracted Size	Approx. 2.5m Length	Approx. 3.8m Length	Custom Extension Ratio
Extension Speed	4 - 6 meters/minute	4 - 6 meters/minute	VFD Variable Speed
Frame Material	Galvanized Square Steel	Heavy Gauge Scissor Truss	Stainless Steel Option
Curtain Fabric	0.6mm PVC (Fire Retardant)	0.9mm PVC (High Strength)	Anti-Static / Clear Windows
Drive Motors	2 x 0.75 kW (Ex-Proof)	2 x 1.5 kW (Ex-Proof)	Chain or Roller Drive
Filtration Type	Dry Fiberglass / Paper	Water Curtain or Dry Wall	Activated Carbon Adsorption
Lighting	LED Ex-Proof (>800 Lux)	LED Ex-Proof (>1000 Lux)	Additional Side Lights
Power Supply	380V / 50Hz / 3Phase	380V / 50Hz / 3Phase	220V / 415V / 480V
